October 2018

Levelling the wheels and bearings. Rotor Wheels photosThis time the South East.
Brunel Swivel Bridge

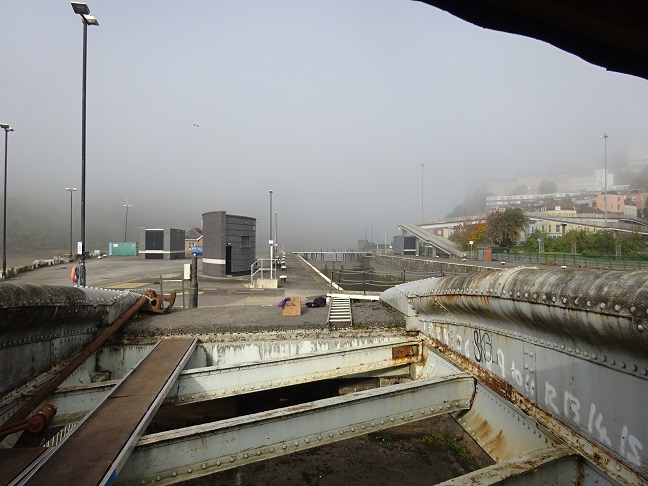

A misty, damp start
Brunel Swivel Bridge

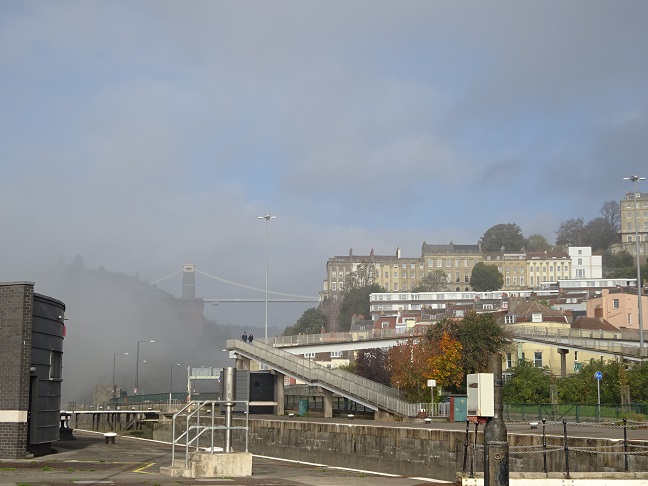

It was not until 11am that the Suspension bridge appeared and one could
contemplate rubbing down and painting the shed since it was too wet
Brunel Swivel Bridge

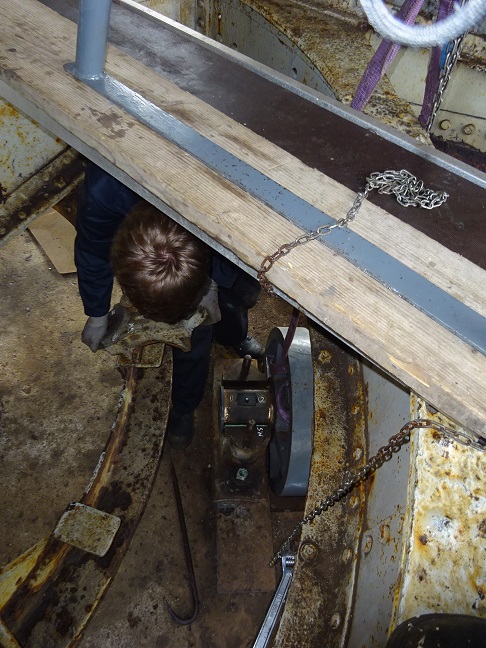

Charlie and David have lifted the bearings off the south west wheel.
The nuts holding the wheel bearing assemby can now be undone to be
able to insert packing underneath.
Since they have not been undone for over 50 years they are expected
to be difficult to undo.
Brunel Swivel Bridge

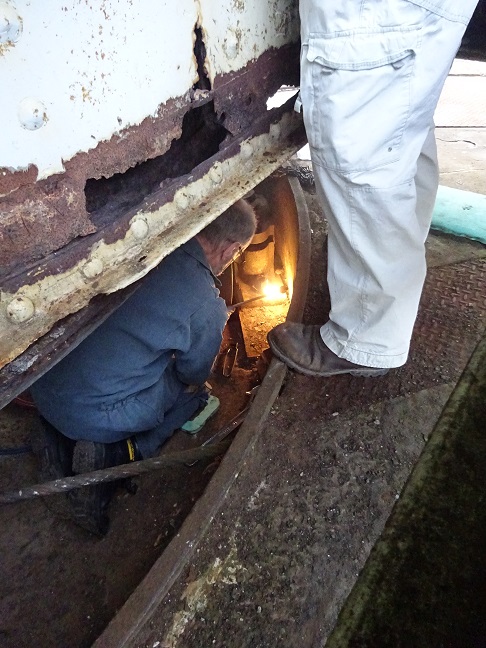

Julian applying the acetylene to the nuts on the outside bearing
Brunel Swivel Bridge

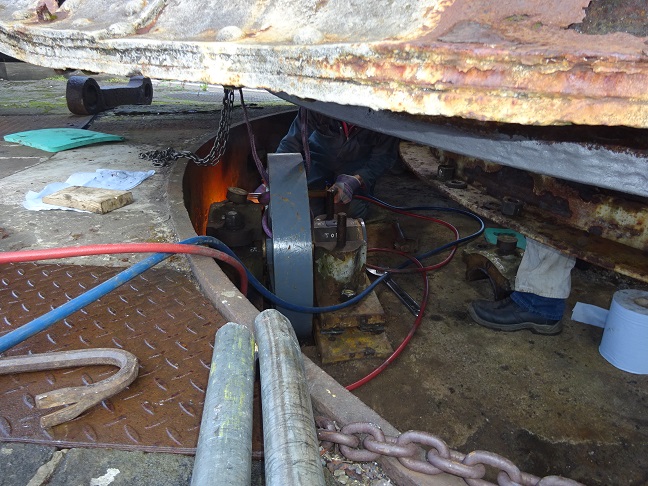

Note that packing has already been added to the inside bearing, and that the bearings
have been carefully numbered to make sure they go back the same way
Brunel Swivel Bridge

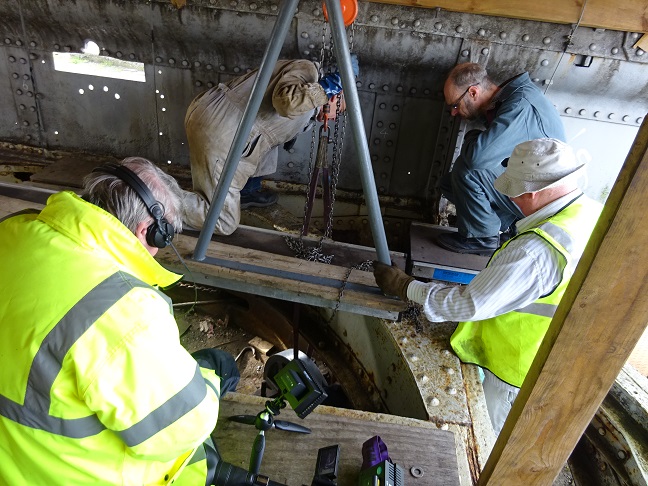

Julian videoing, David using the hoist, Julian and Bob overseeing
Brunel Swivel Bridge

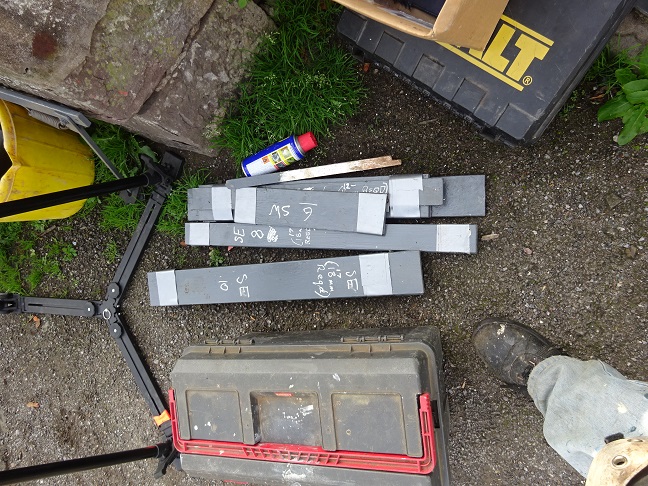

The packing strips have all been made individually and future location identified
Brunel Swivel Bridge

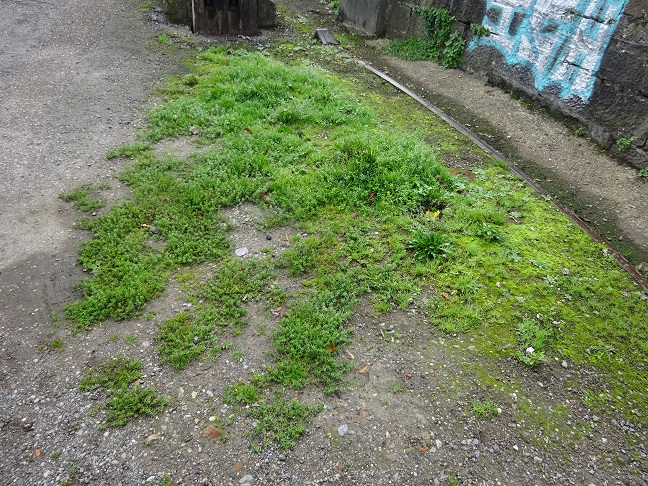

And the weeds continue to grow
