Investigating the wheels Rotor Wheels photos
Brunel Swivel Bridge

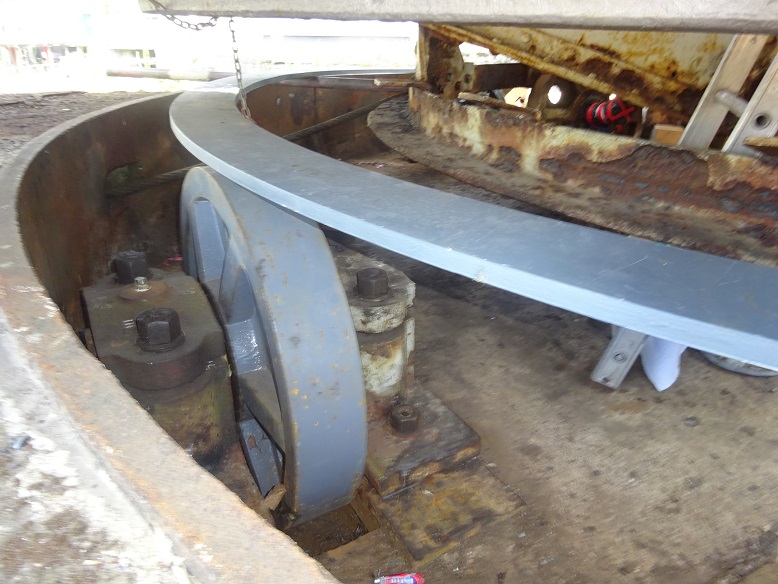

The new ring for the turntable. The old ring can be seen above to show how far the bridge will be lowered
onto it
Brunel Swivel Bridge

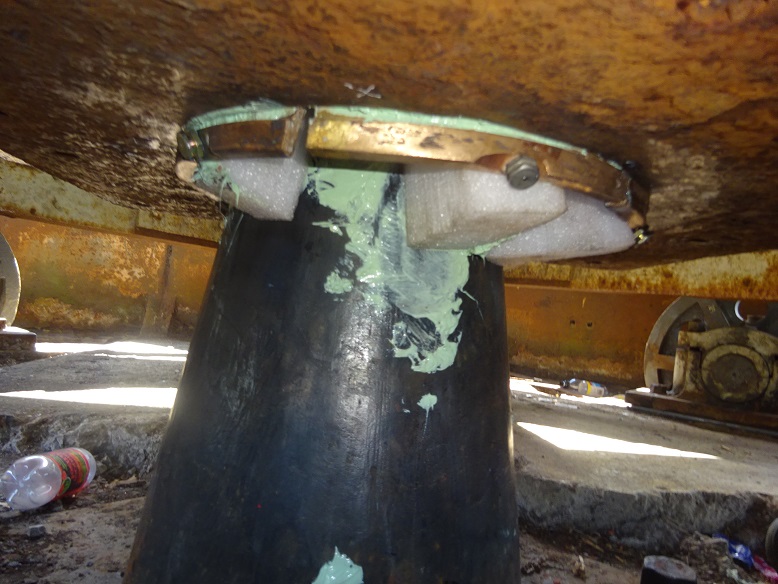

The new collar on the pintle. As the bridge gets lowered, the collar will keep the
bridge turning centrally in a true circle
Brunel Swivel Bridge

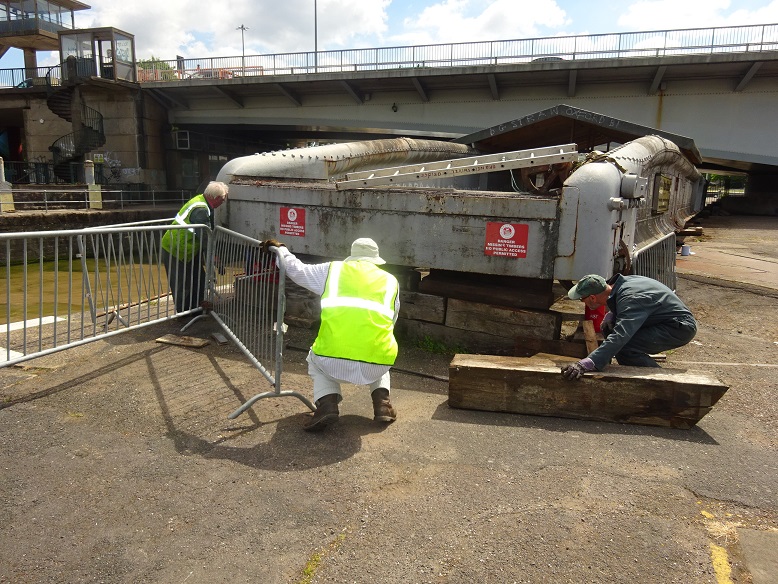

The sides of the bridge are jacked to enable the counterweight to be lowered by removing some of the beams

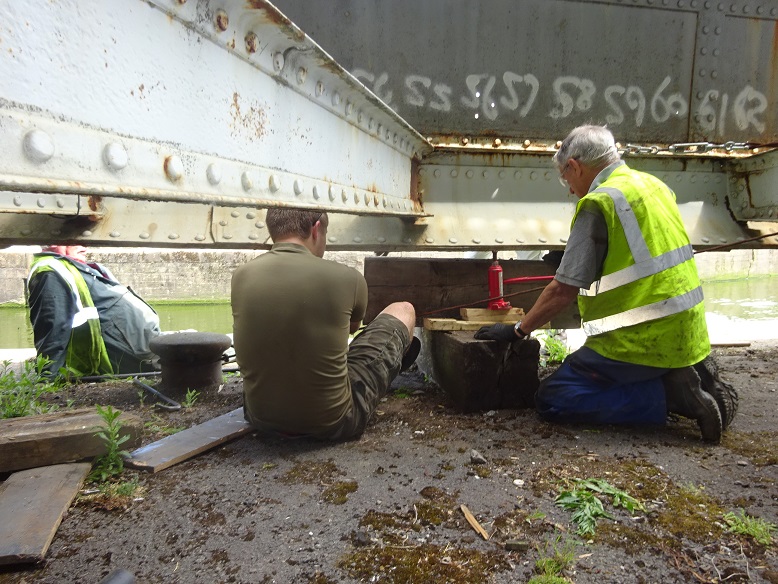

Geoff jacking, Bob checking the bridge stays level and Julian has moved a beam
Brunel Swivel Bridge
beams being removed
Brunel Swivel Bridge

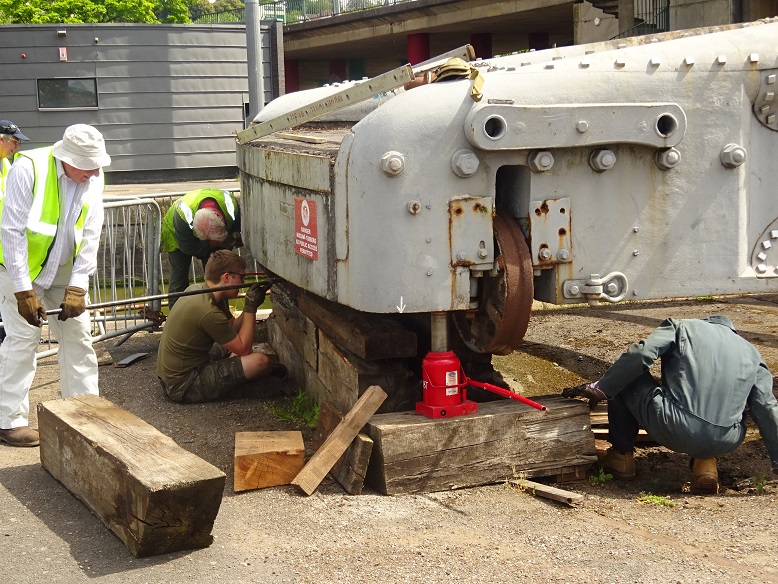

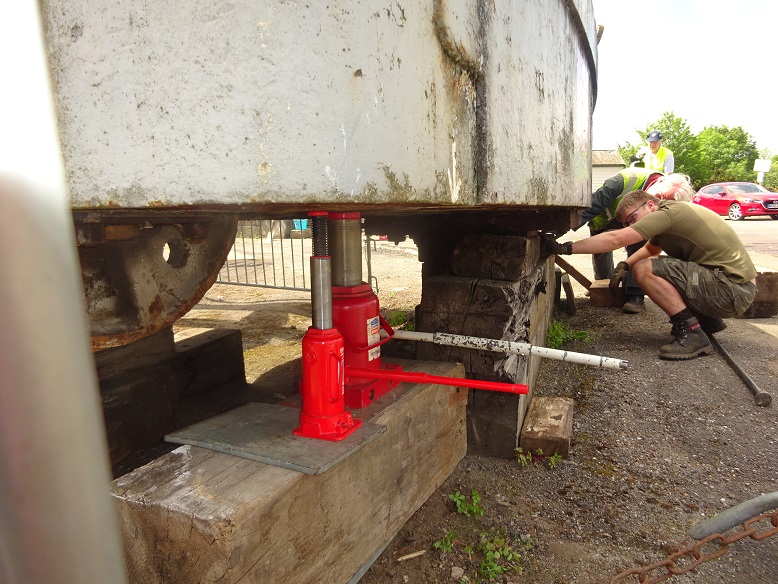

Bob gives a helping hand with a huge bar while Geoff, Charlie and Julian do synchronised jacking.
Spirit level to hand to check
Brunel Swivel Bridge

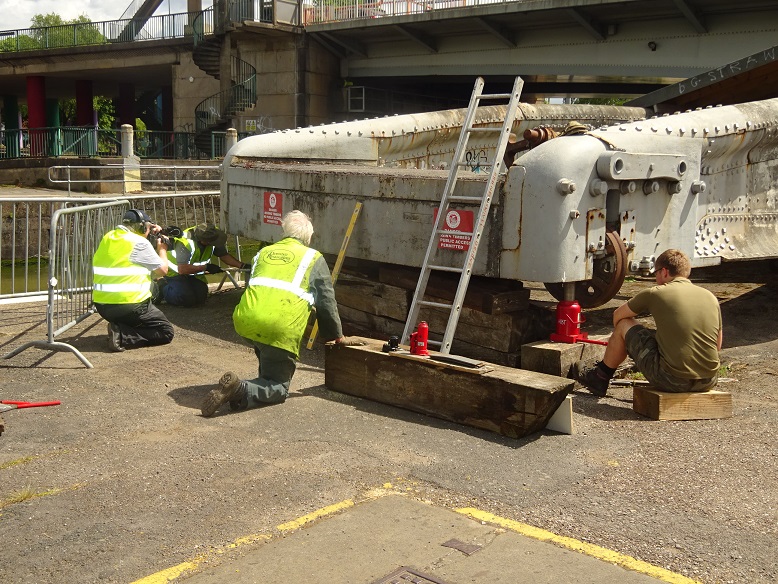

Julian videoing the action. Ian also helping with the action
Brunel Swivel Bridge

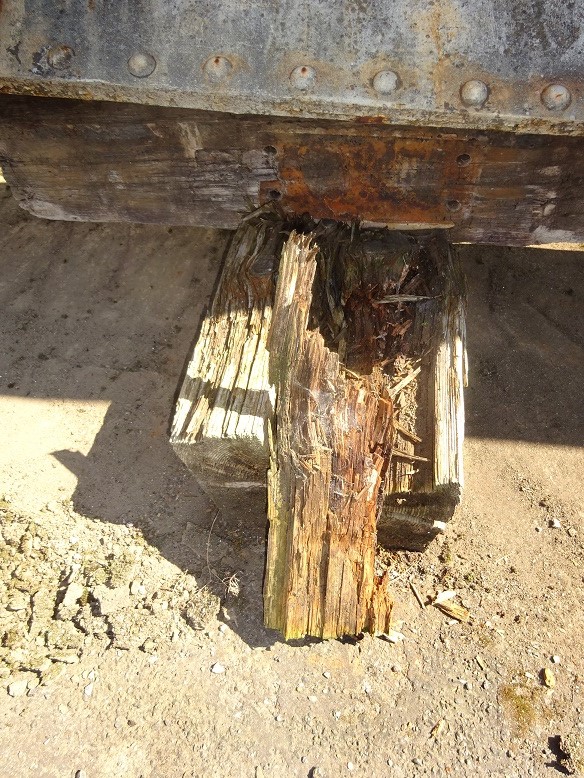

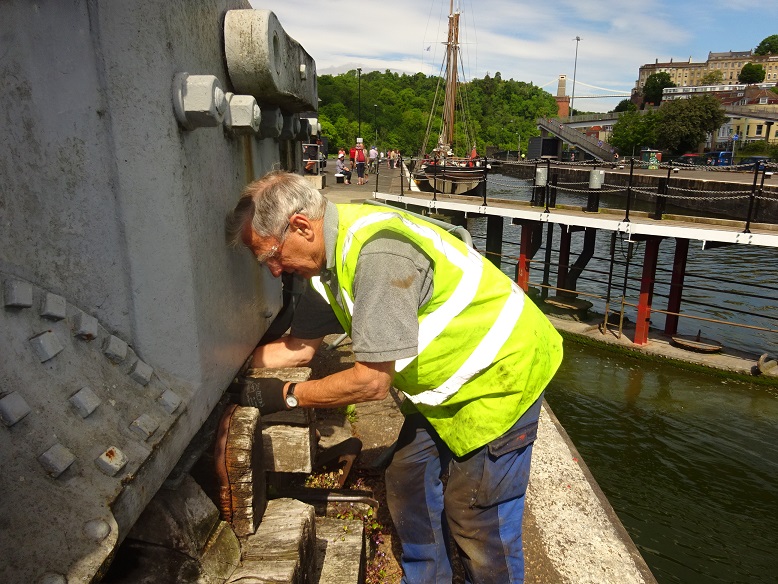

Beam propping up the side has seen better days
Brunel Swivel Bridge

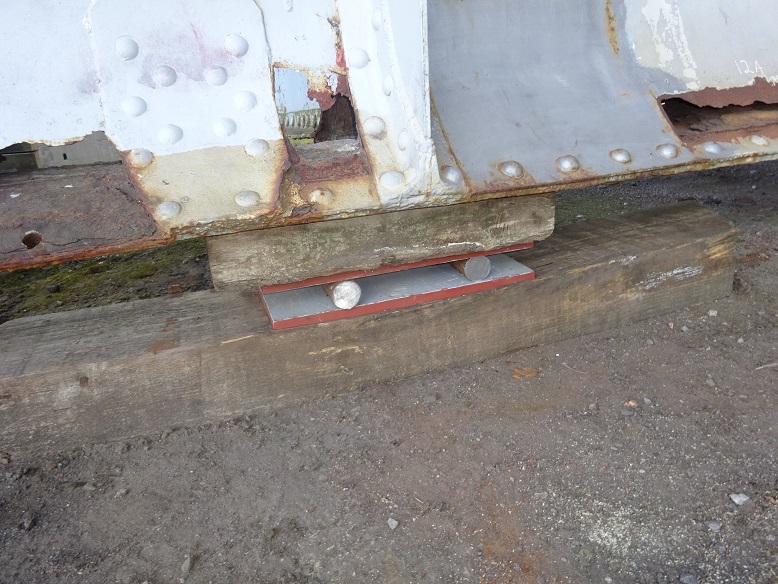

Rollers inserted
Brunel Swivel Bridge

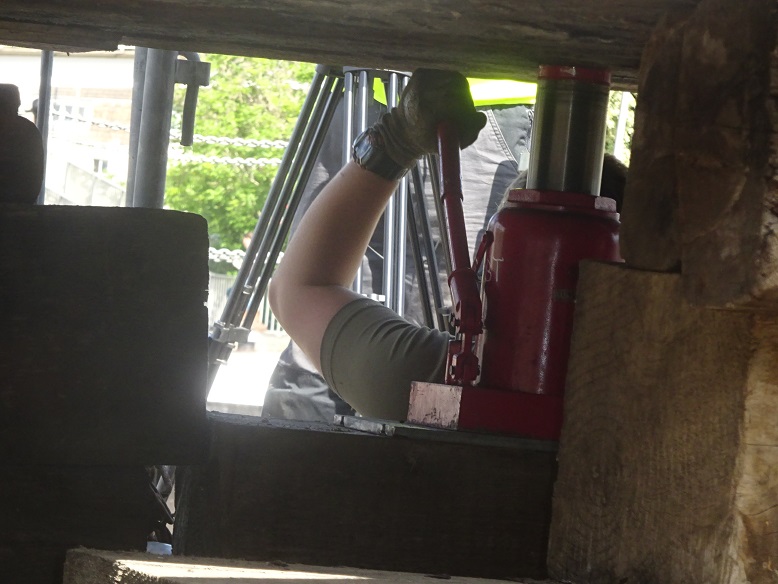

Charlie pumping gas- looks like he is in the gym
Brunel Swivel Bridge
Ian juggling beams. They are not light
Brunel Swivel Bridge
Springy new wood made jacking more difficult
Brunel Swivel Bridge

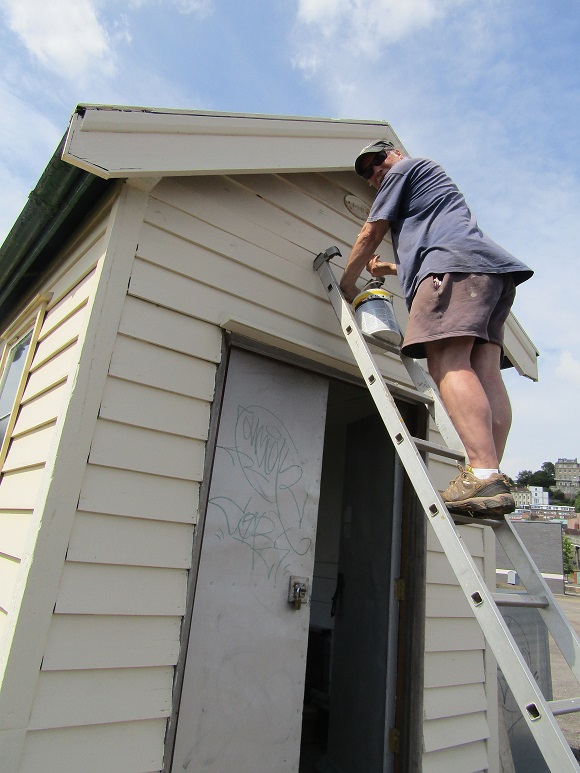

Charlies dad still painting the shed
Brunel Swivel Bridge
SS Great Britain guides taking a walking group to see the bridge!
Brunel Swivel Bridge
Bank holiday and good weather meant lots of boats out, including Queen Galadriel
Brunel Swivel Bridge

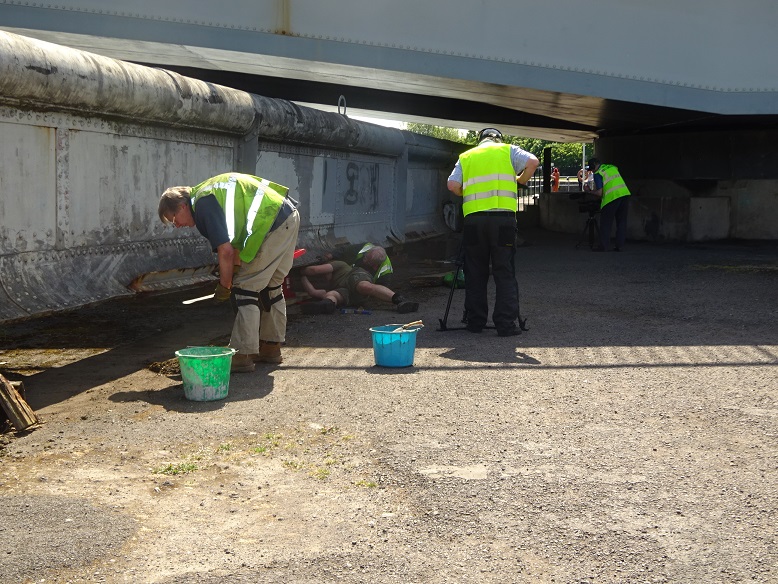

Everywhere you looked there were groups all being busy. John is weeding as was I
