Bob Watkin's drawings of Foundations as expected of the Brunel Swivel Bridge

Bob Watkins predicted that there would be large timber beams just under the ground, supporting the turn-table wheels.

Mike B, Josh and Bob dug down in August 2014 to see if they existed, and sure enough discovered a 12 inch square baulk to everyone's delight. Hammering a screwdriver into it revealed that most of the timber was sound, although damp, and it smelled strongly of tar, so presumably had been treated when installed.

Brunel Swivel Bridge

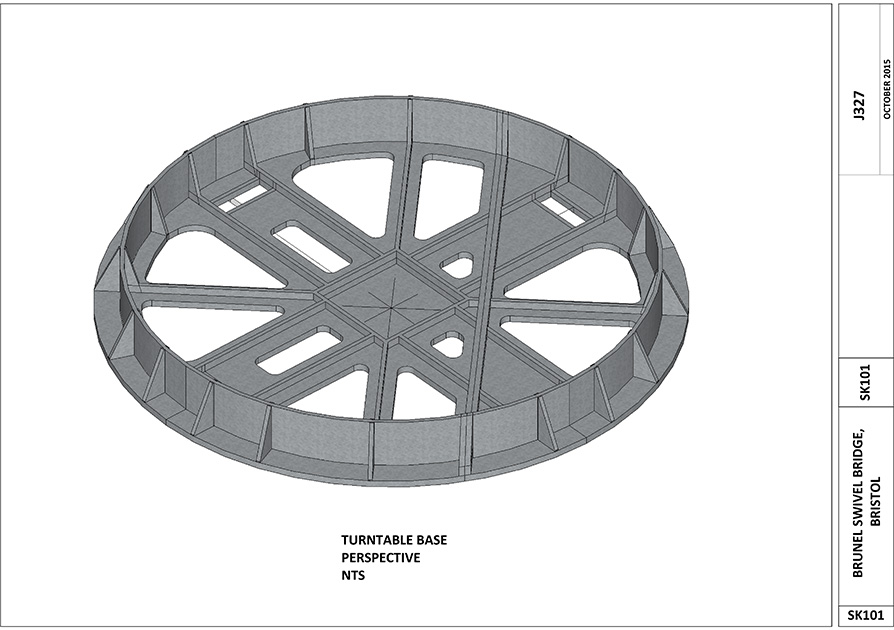

Turntable base perspective
Brunel Swivel Bridge

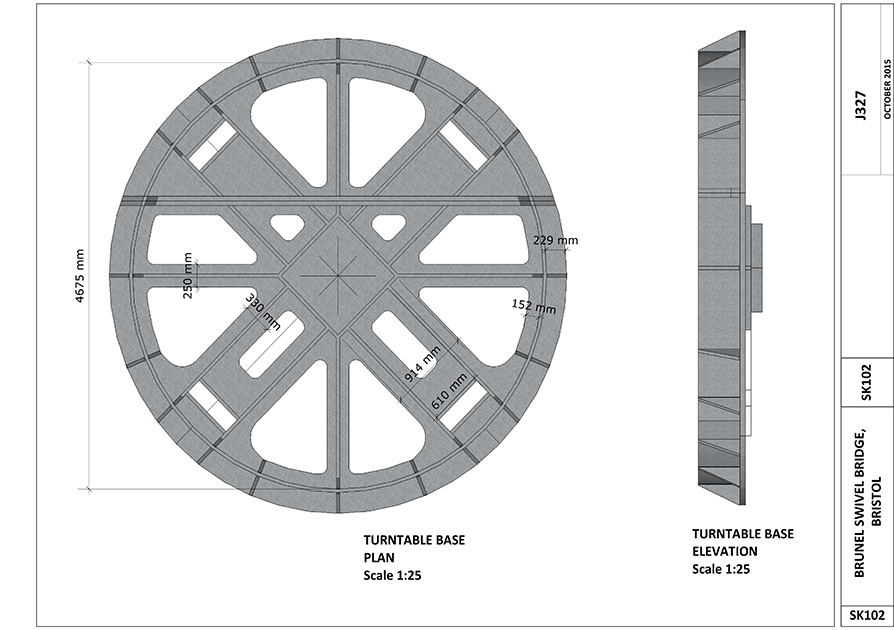

Turntable plan and elevation
Brunel Swivel Bridge

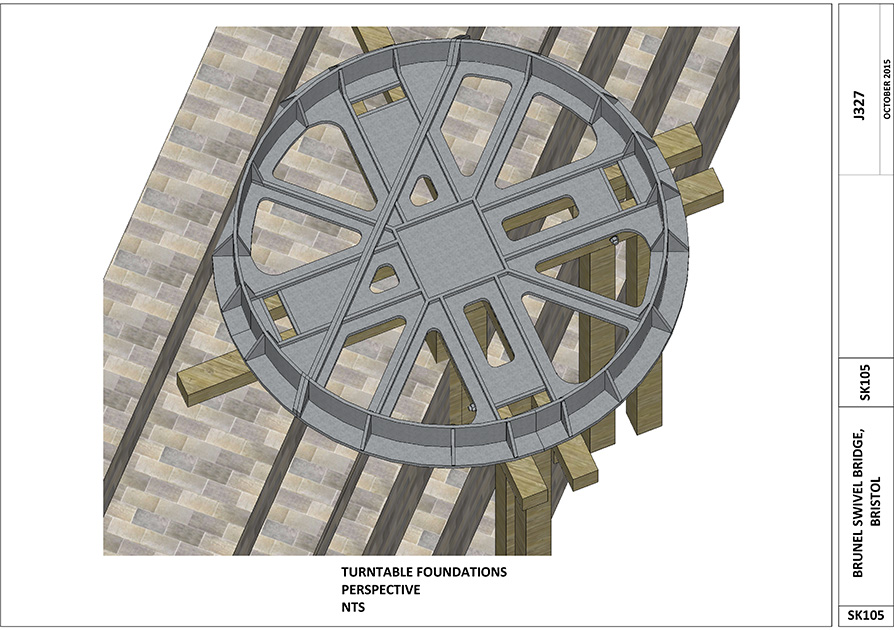

Turntable foundation perspective
Brunel Swivel Bridge

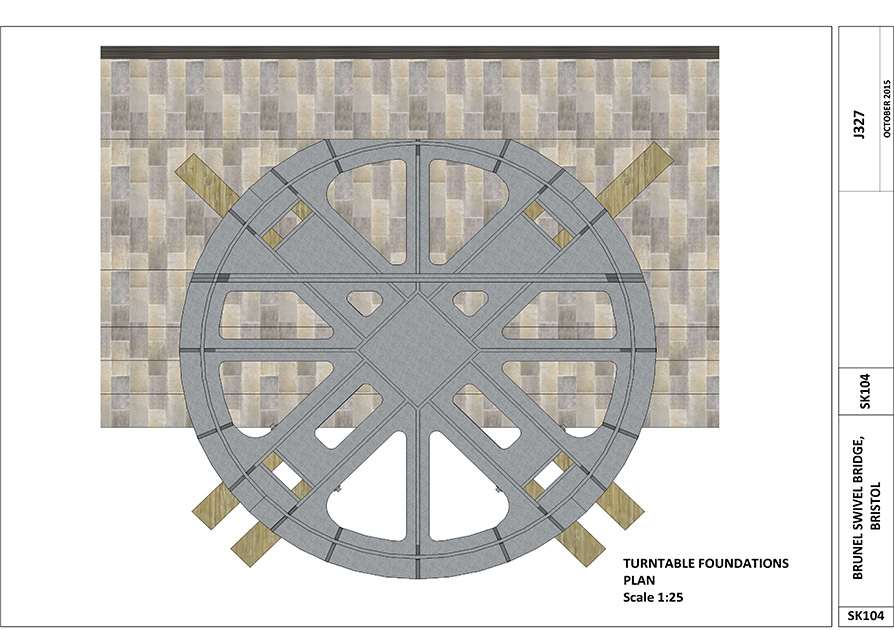

Turntable foundation plan
Brunel Swivel Bridge

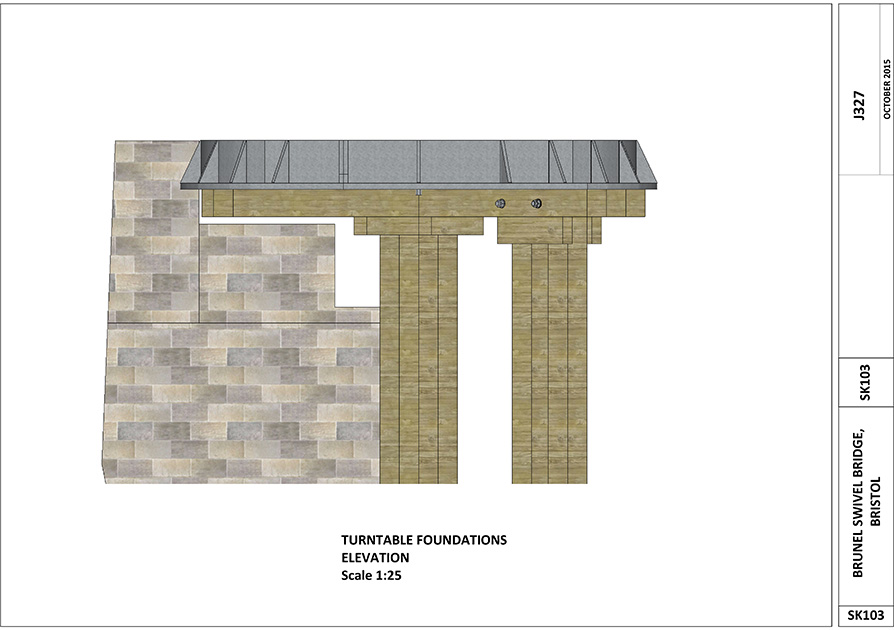

Turntable foundation elevation
