Bob Watkin's drawings of the outside edge of North Beam of the Brunel Swivel Bridge

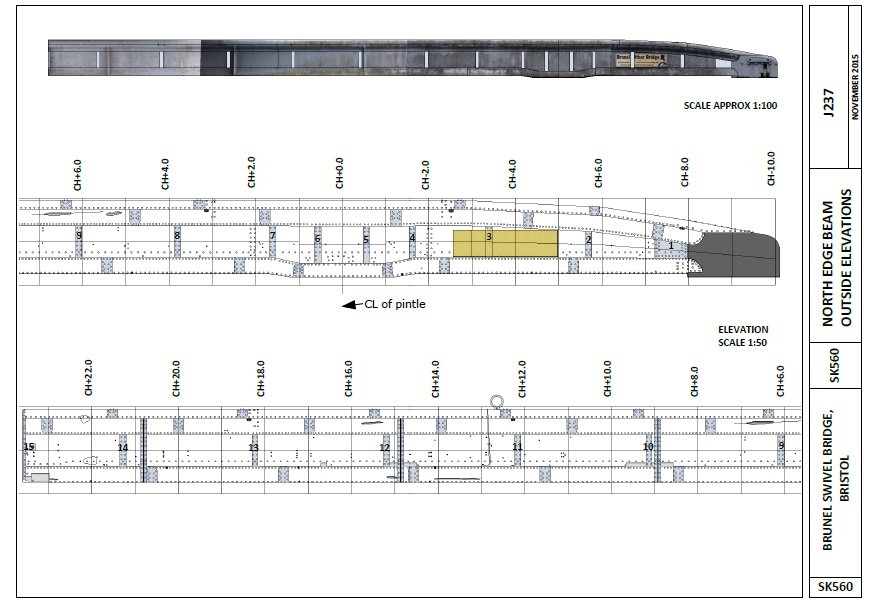

Inspection and measurement of the North edge beams![]() elevation |

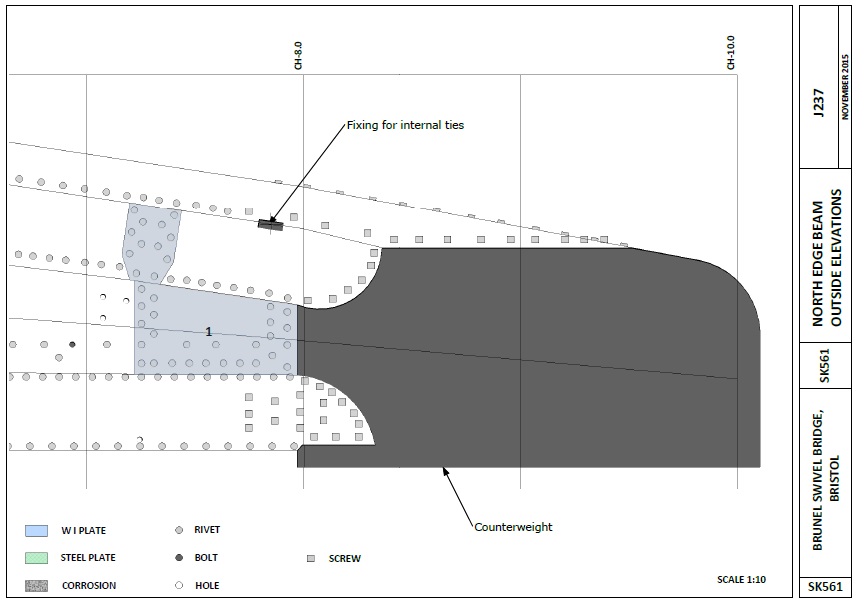

![]() section 1 |

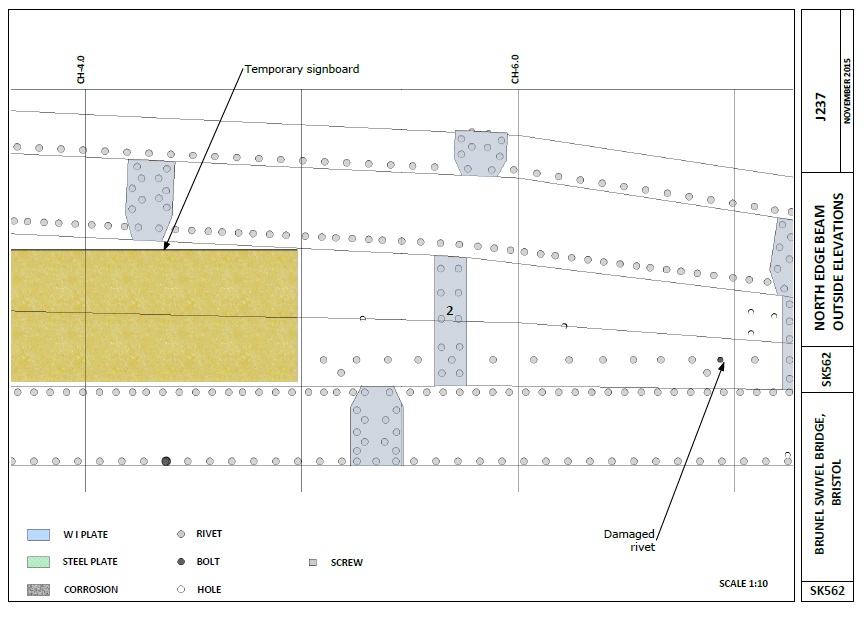

![]() section 2 |

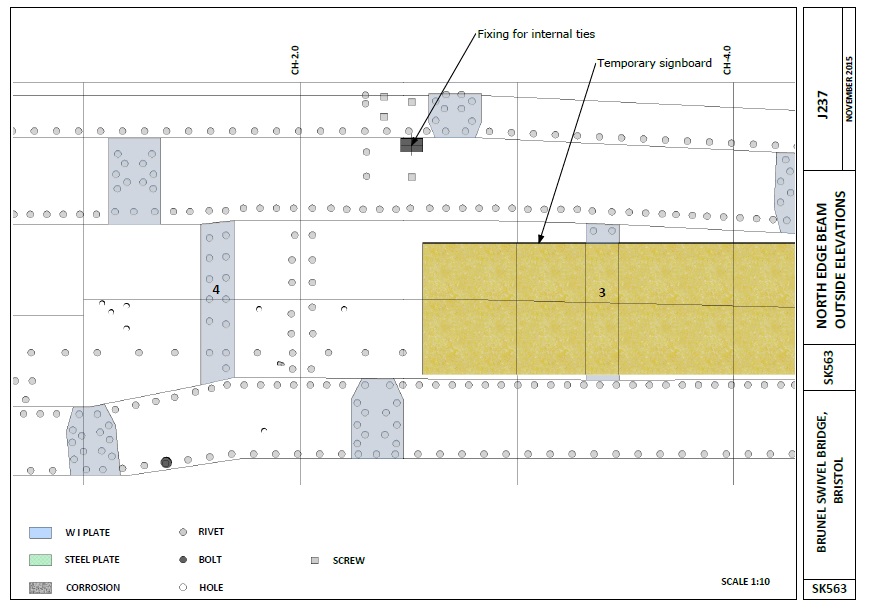

![]() section 3 and 4 |

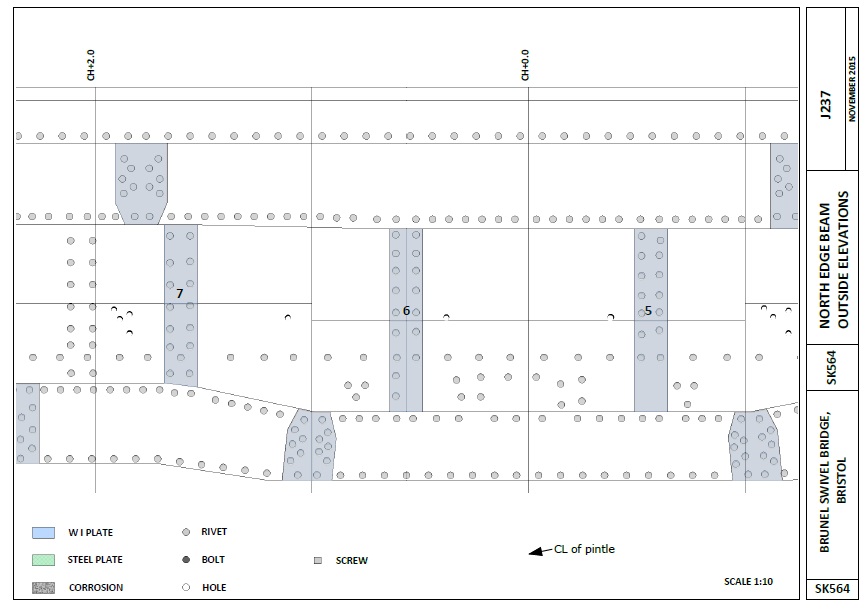

![]() section 5 to 7 |

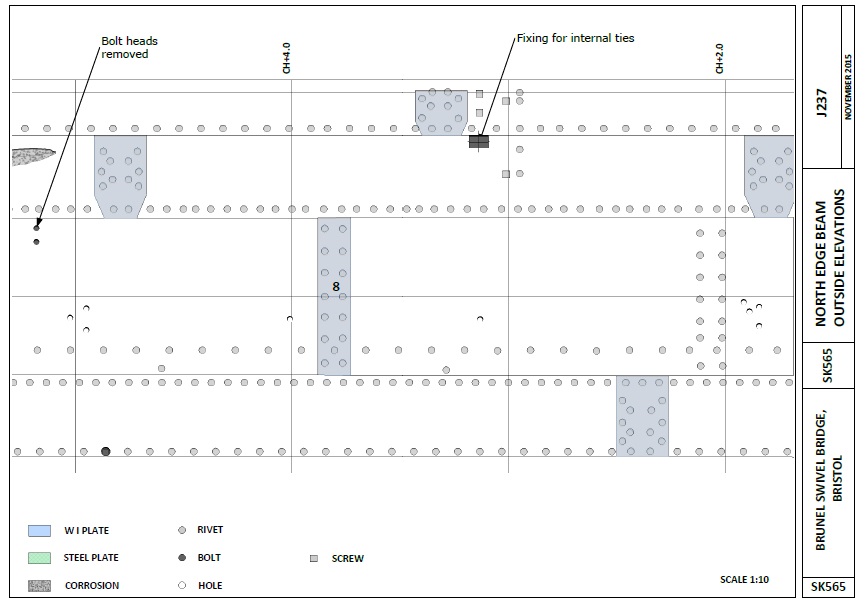

![]() section 8 |
![]() section 9 |

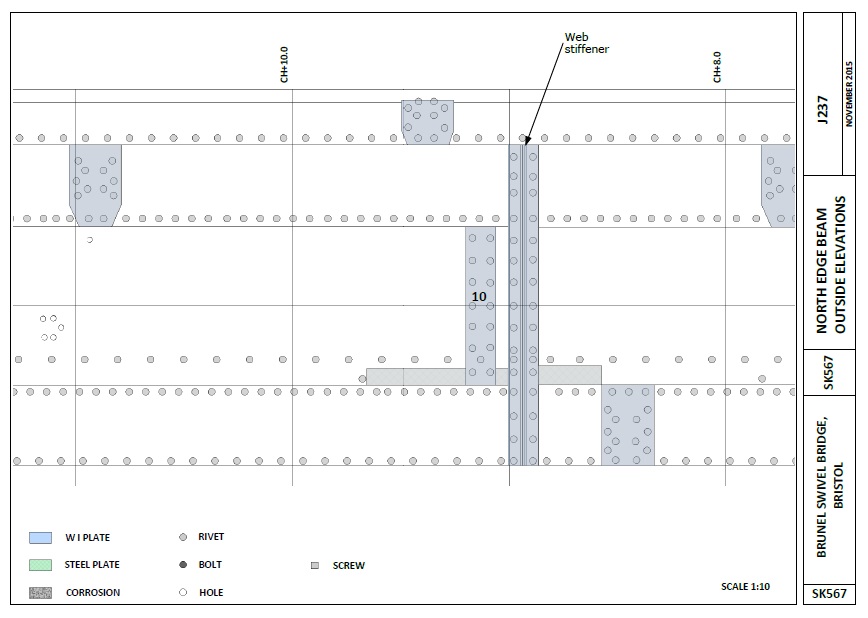

![]() section 10 |

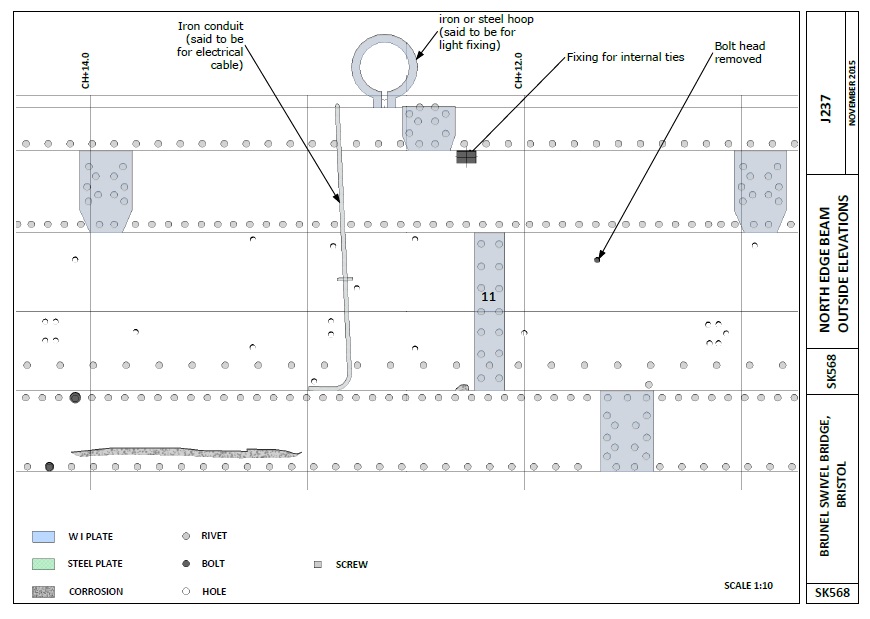

![]() section 11 |
![]() section 12 |

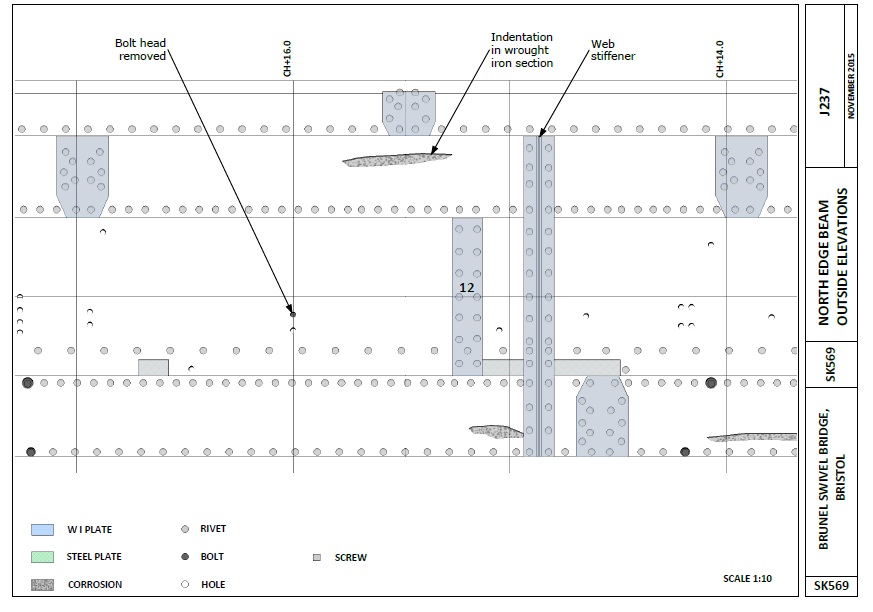

![]() section 13 |

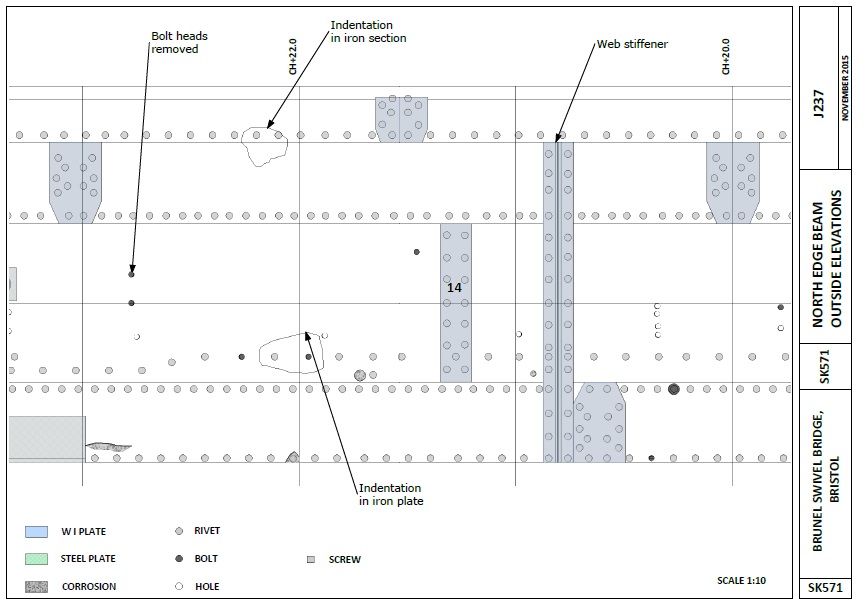

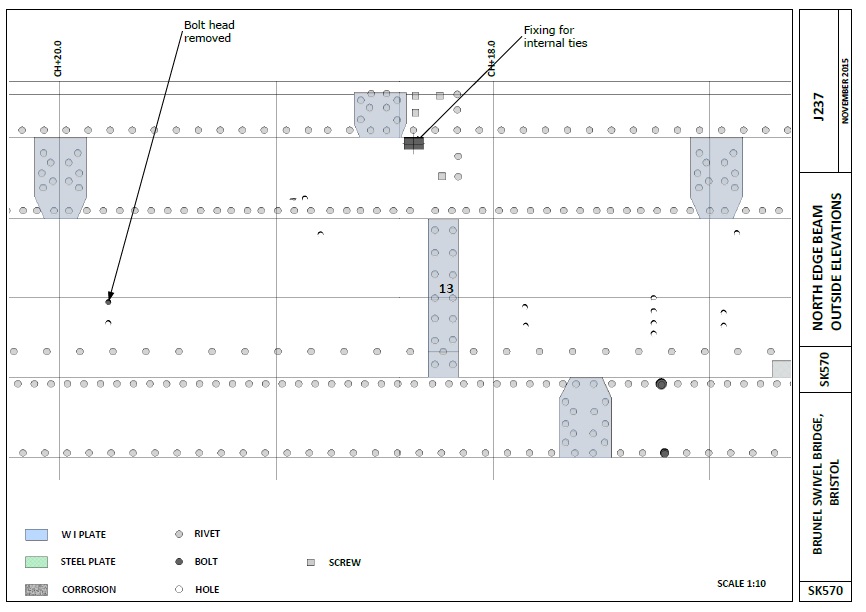

![]() section 14 |
![]() section 15 |
- inside surface drawing beam inspection 573-585 Updated 9 November 2015
- 33 inside surface inspection photos Updated 9 November 2015
- base surface drawing beam inspection 586-588 Updated 22 October 2015
- 20 base surface inspection photos Updated 22 October 2015
