Bob Watkin's drawings of the Superstructure of the Brunel Swivel Bridge

500 series (including counterweights 501-503 and rear wheels, tie bars 504-505, beams 506-510, ‘jib’ end of the bridge 518 and 519 – the latch and roller, 520-523 transverse beams, 524 turntable beam)
Brunel Swivel Bridge
Counterweight perspective 		Brunel Swivel Bridge
Counterweight plan
Brunel Swivel Bridge
Counterweight Elevation		 Brunel Swivel Bridge

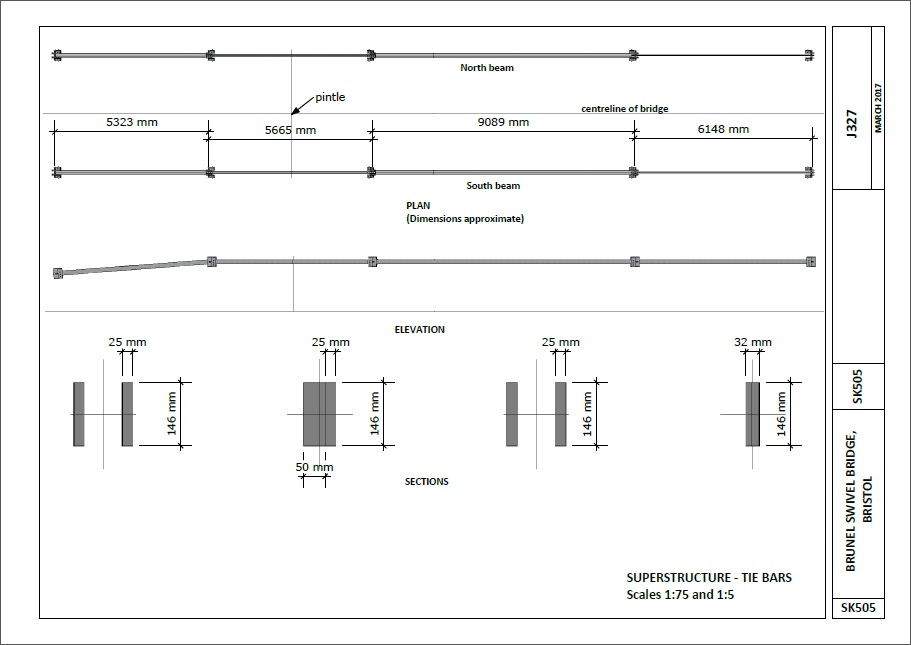

Tie bars
Brunel Swivel Bridge

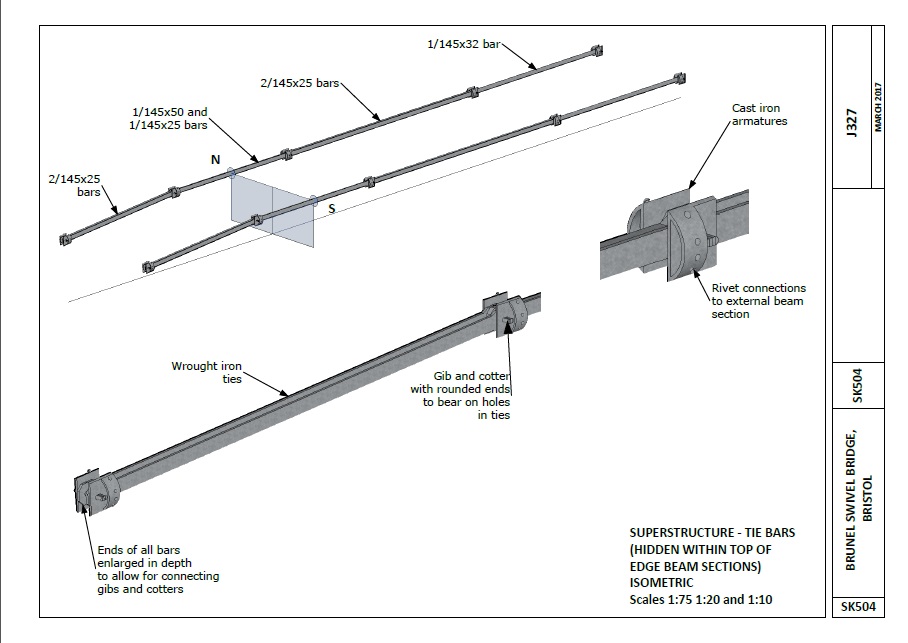

Tie bars detail 		Brunel Swivel Bridge

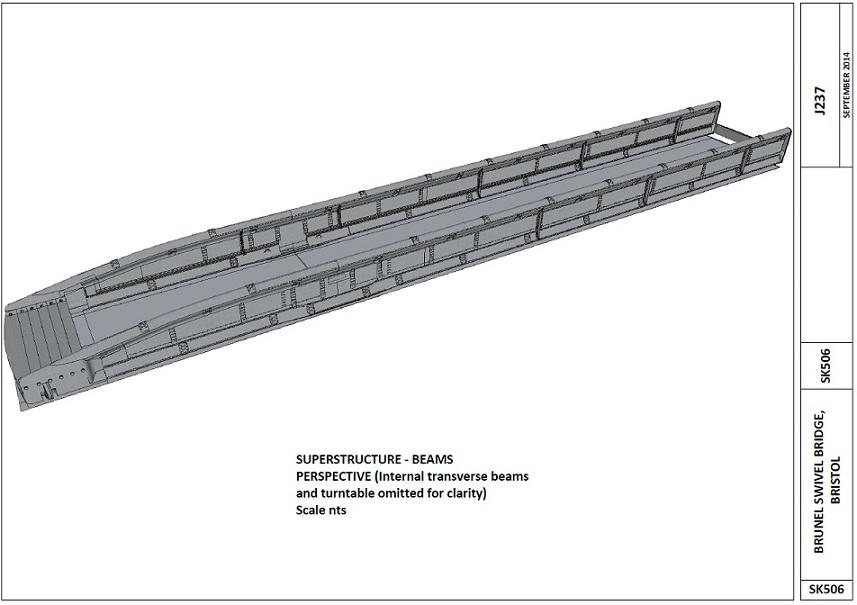

Beams perspective
Brunel Swivel Bridge

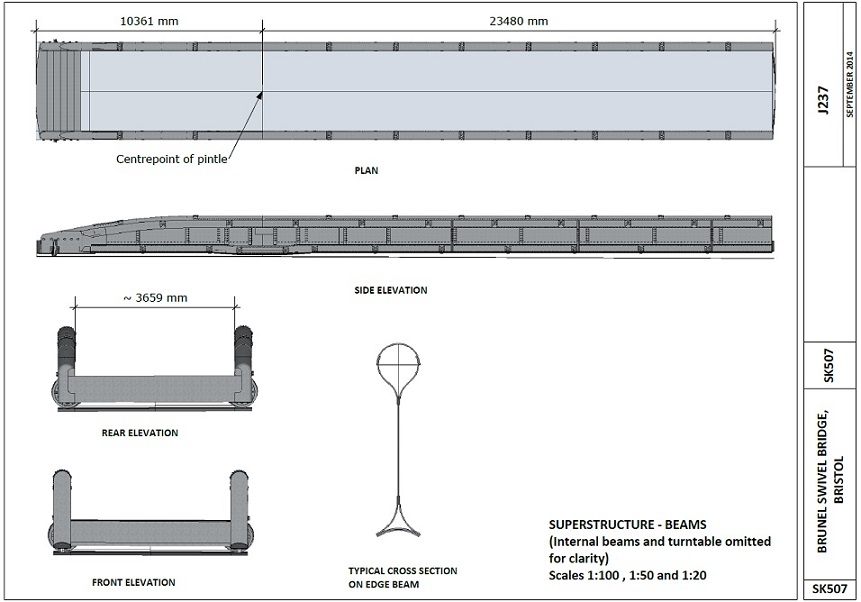

Beams		 Brunel Swivel Bridge
Edge beams
Brunel Swivel Bridge

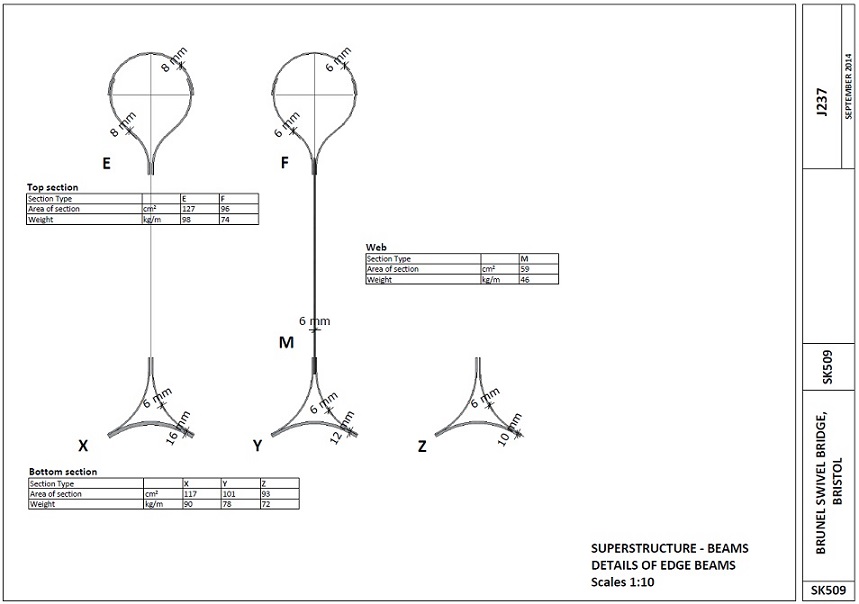

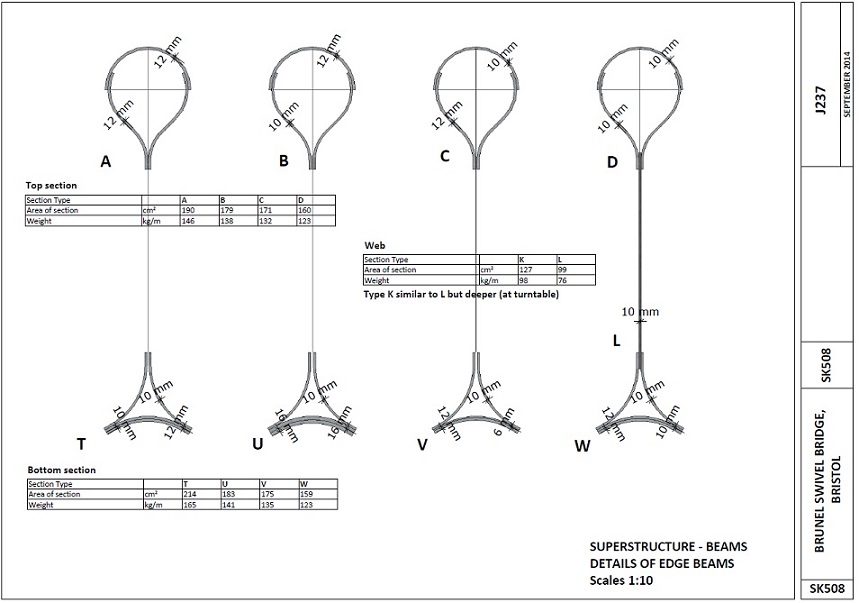

Edge beams detail		 Brunel Swivel Bridge

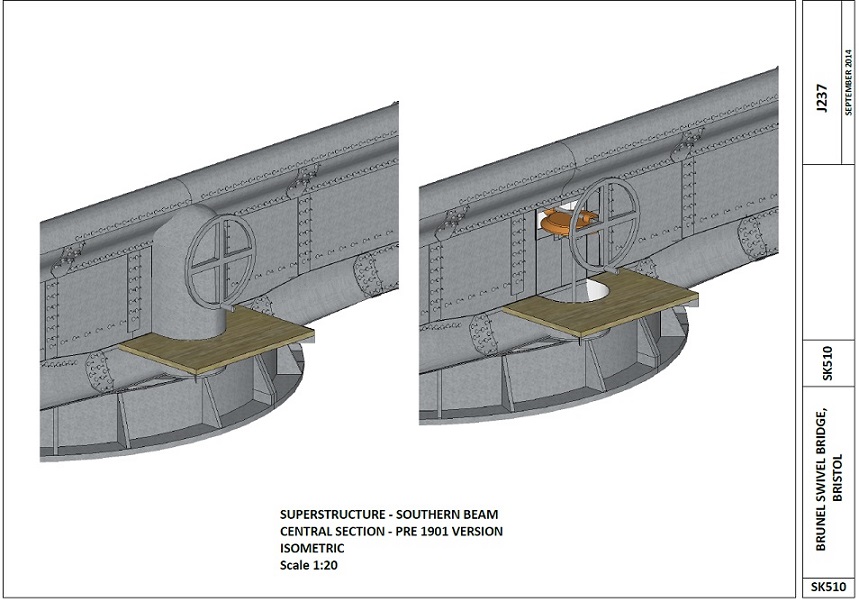

Southern beam
Brunel Swivel Bridge

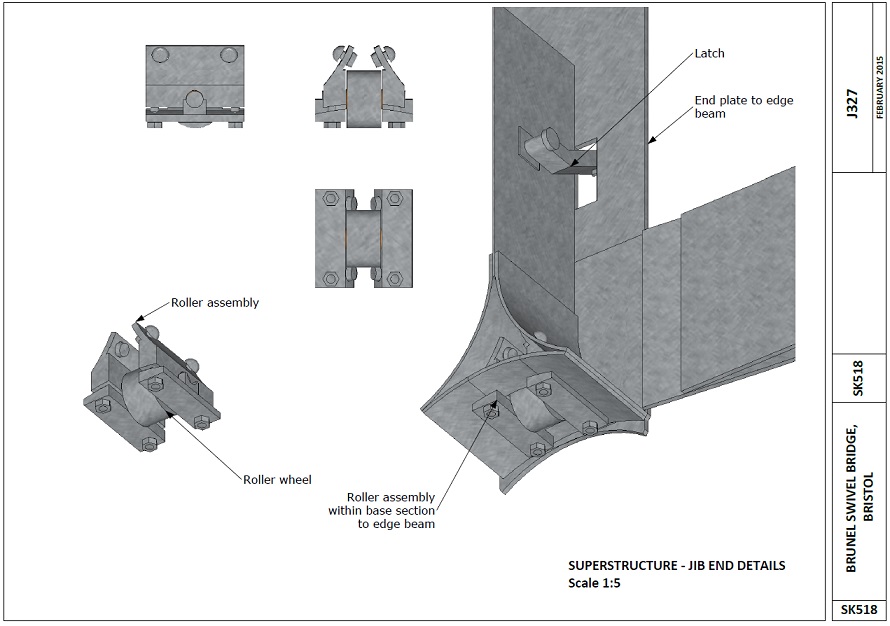

‘jib’ end of the bridge – the latch and roller		 Brunel Swivel Bridge
the latch
Brunel Swivel Bridge

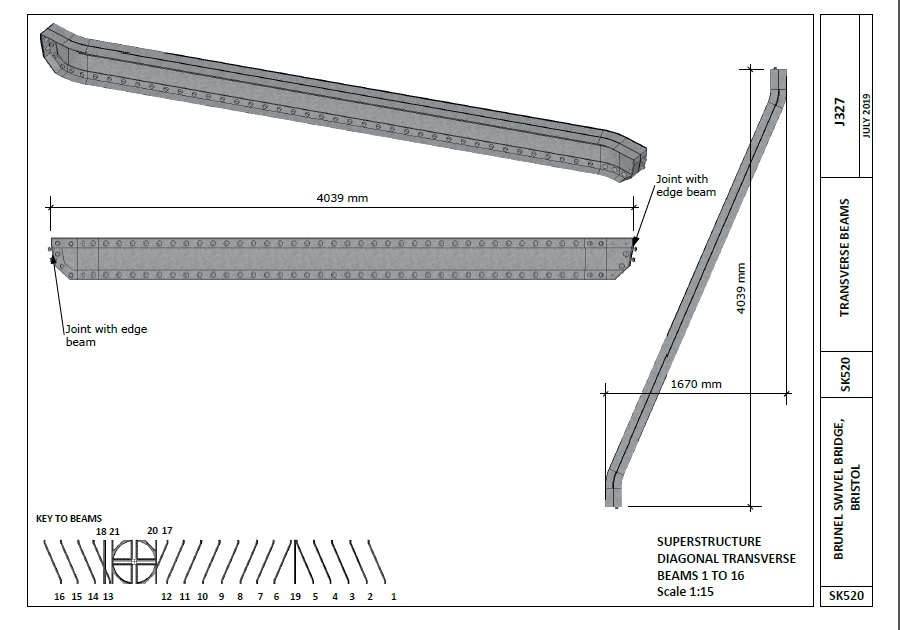

SUPERSTRUCTURE DIAGONAL TRANSVERSE BEAMS 1 TO 16 1:15		 Brunel Swivel Bridge

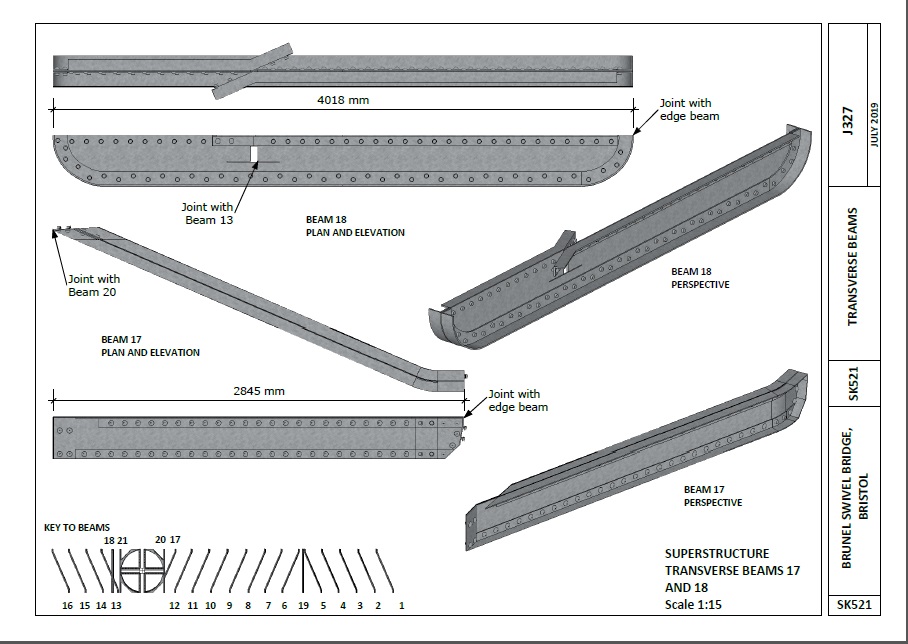

SUPERSTRUCTURE TRANSVERSE BEAMS 17 AND 18 Scale 1:15
Brunel Swivel Bridge

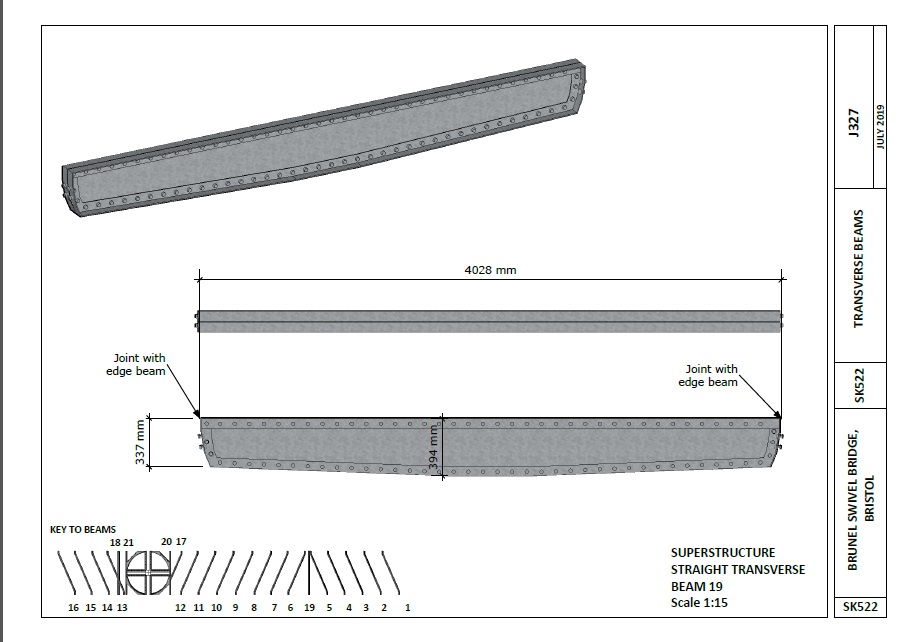

SUPERSTRUCTURE STRAIGHT TRANSVERSE BEAM 19 Scale 1:15		 Brunel Swivel Bridge

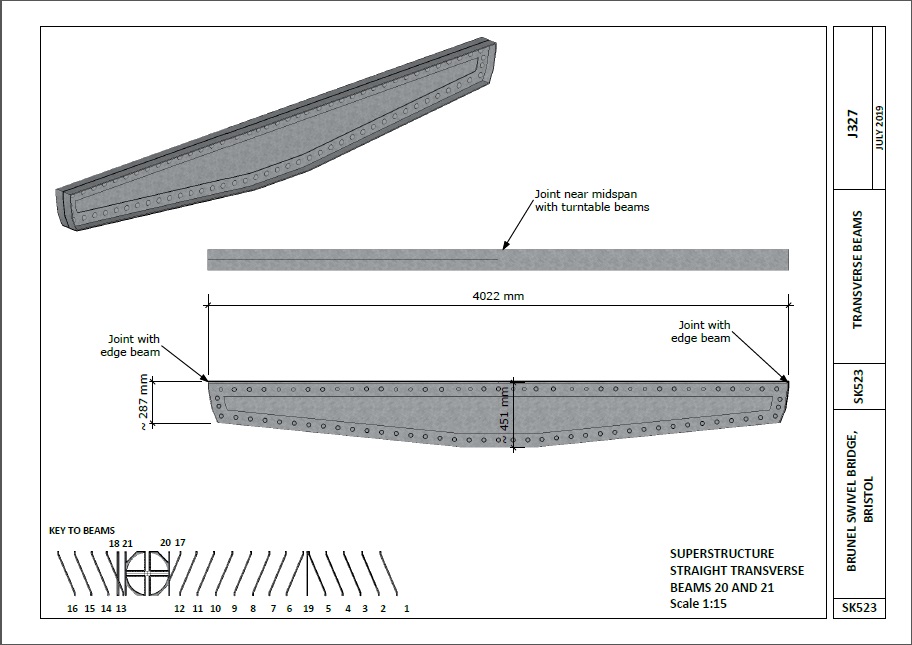

SUPERSTRUCTURE STRAIGHT TRANSVERSE BEAMS 20 AND 21 Scale 1:15
Brunel Swivel Bridge

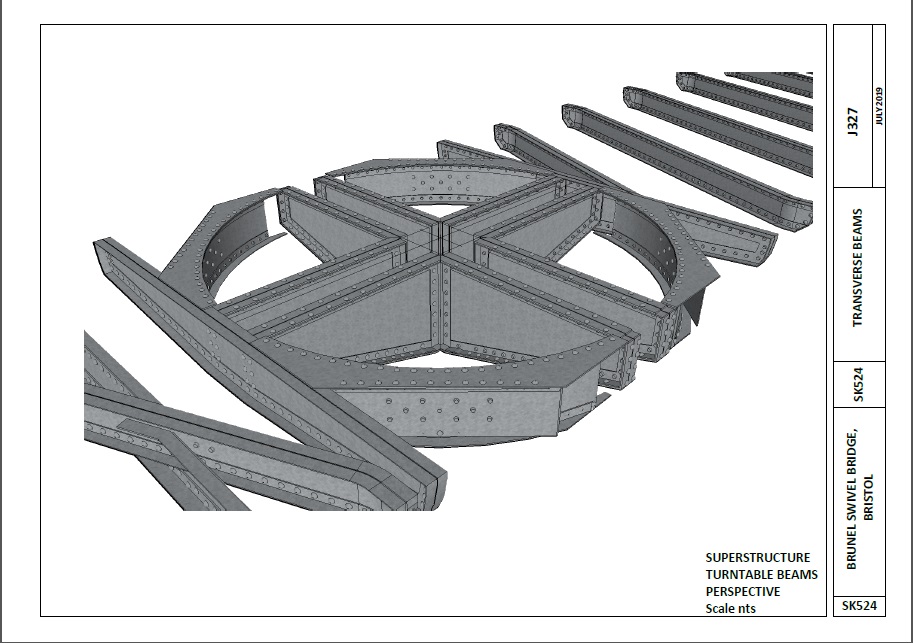

SUPERSTRUCTURE TURNTABLE BEAMS PERSPECTIVE
