Bob Watkin's drawings of Elevations and Level Survey of the Brunel Swivel Bridge

Level survey

Brunel Swivel Bridge

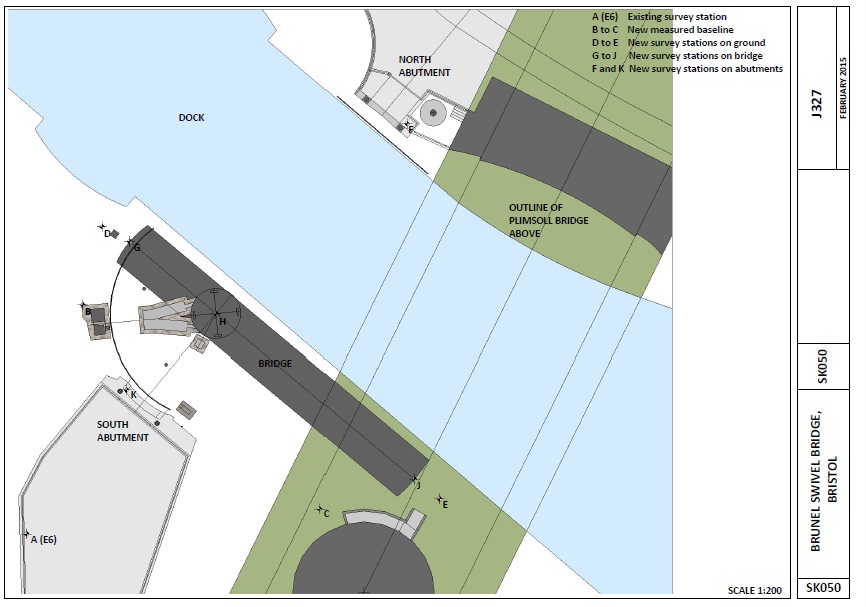

Survey Stations		 Brunel Swivel Bridge

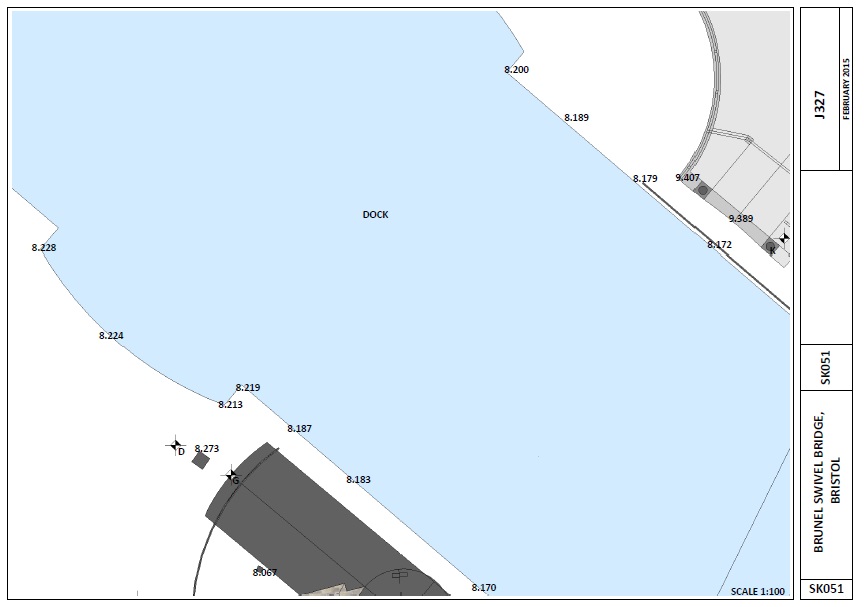

Survey Station D and G
Brunel Swivel Bridge

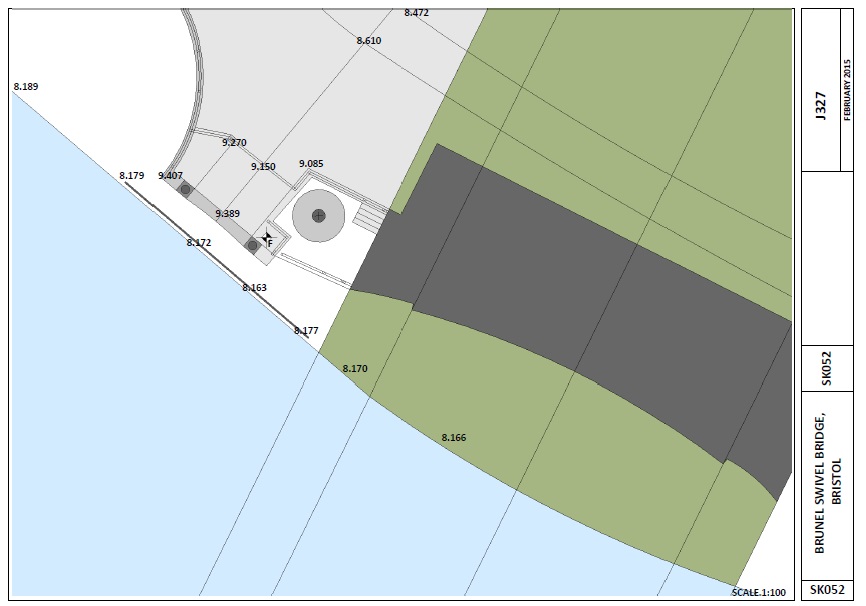

Survey Station F		 Brunel Swivel Bridge

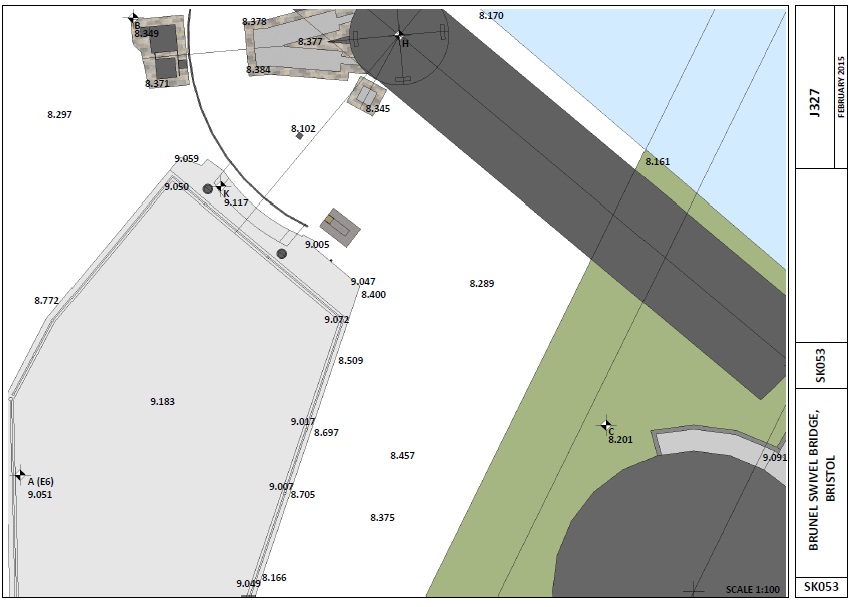

Survey Station A, B, C and K
Brunel Swivel Bridge

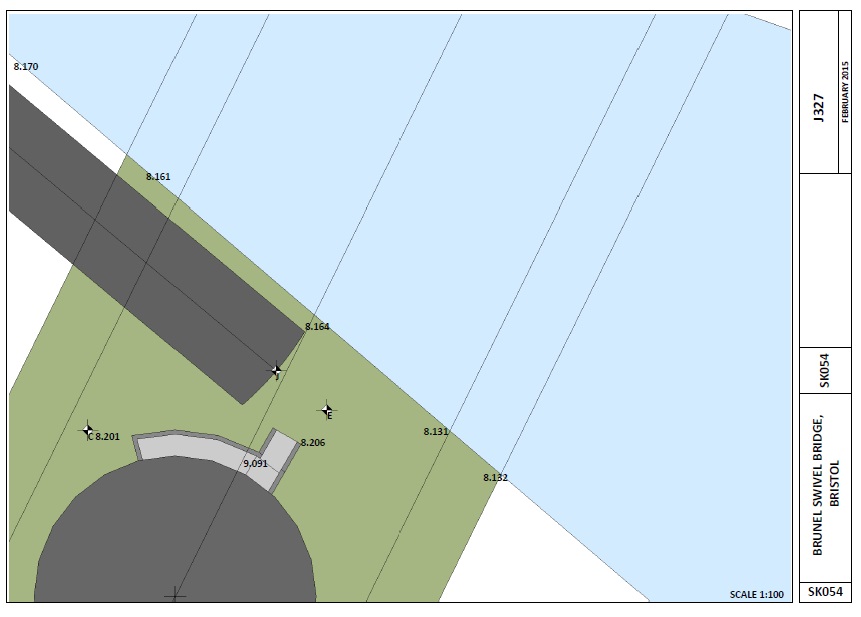

Survey Station C, E and J

South Abutment
Brunel Swivel Bridge

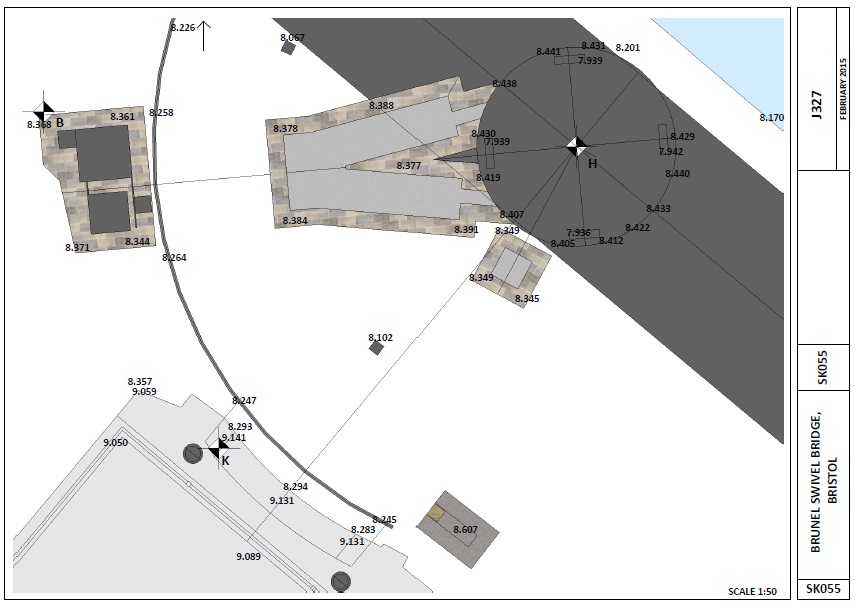

Survey Stations B and K

North Abutment
Brunel Swivel Bridge

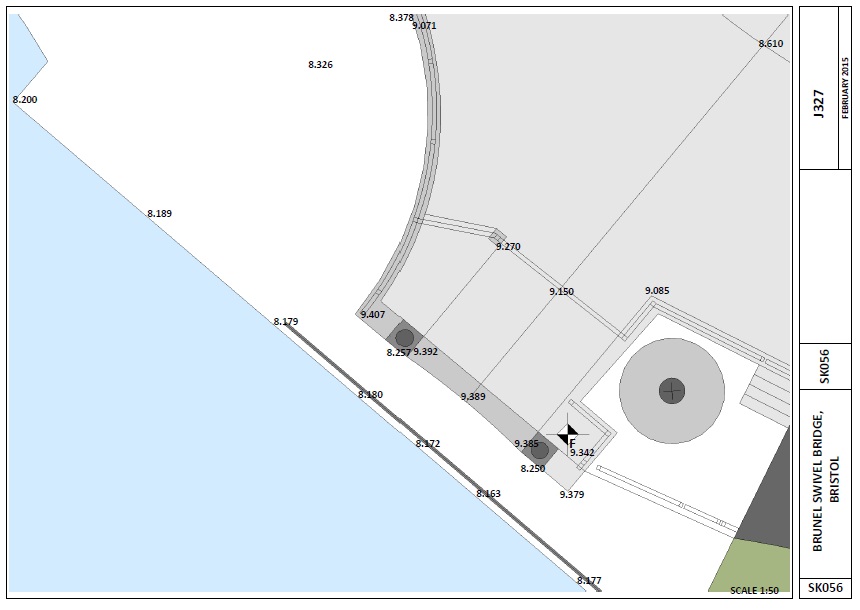

Survey Station F
