Brunel Swivel Bridge Project Photos November 2014

Page contents

Investigative work by Dorothea Restorations with Mann Williams

This work is funded by the English Heritage grant

Details of work

Details of progress in 2013

Details of progress in 2014

Tuesday 28 October 2014

We are in the process of progressing investigations to inform the repair and restoration of the bridge structure. As part of these works we are looking to carry out some trial repairs on a small number of selected areas of plate and riveted locations. The aim is to select areas that are either in an advanced state of decay, or where there are later plated repairs to the original structure.

We are keen to ensure that we keep the conservation officer informed of these progressing works so that we can respond to any queries. We met on site to agree the locations of the investigations. These will be chalk-marked and photographed as a record of proposals. The physical investigations were planned to commence the following week.

Brunel Swivel Bridge

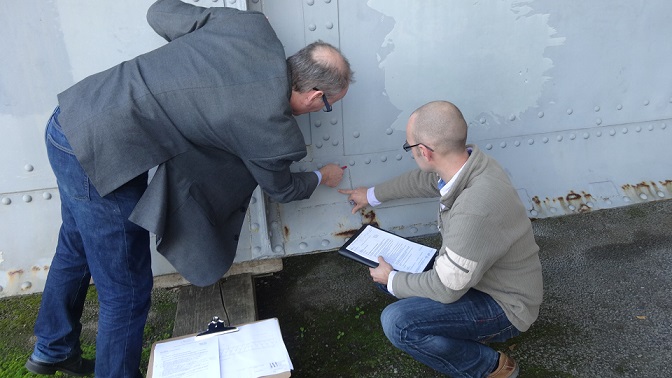

John Wallis of Dorothea discussing work to be investigated with Jon Avent of Mann Williams
Brunel Swivel Bridge

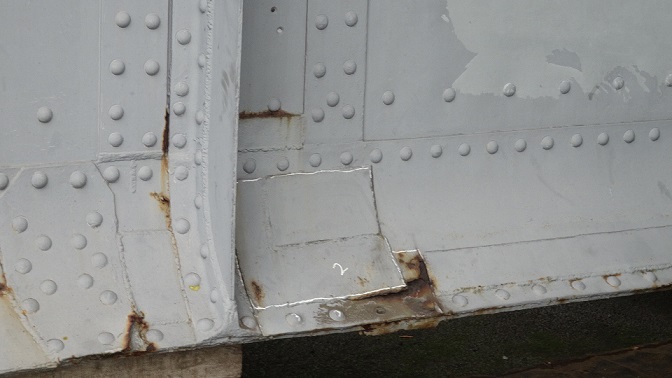

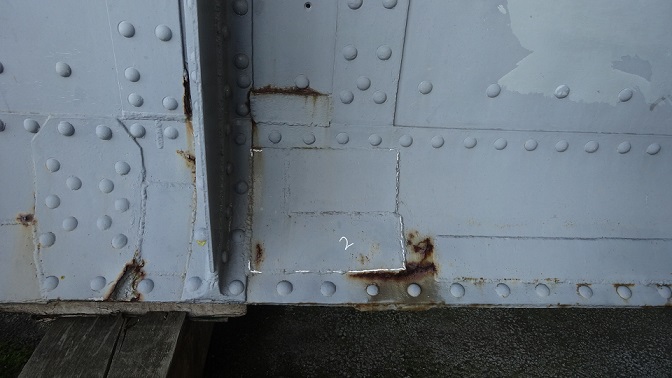

Patch 2, which has already been repaired
Brunel Swivel Bridge

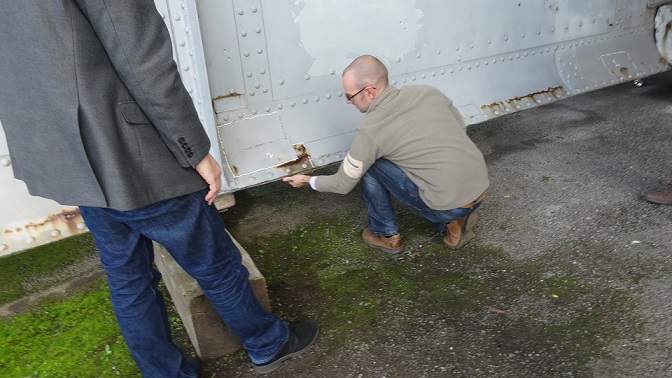

Another discussion. Patch 1. Rusty along the join, again has previously repaired
Brunel Swivel Bridge

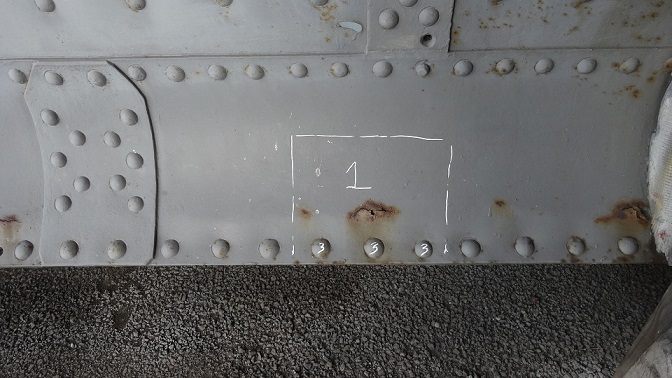

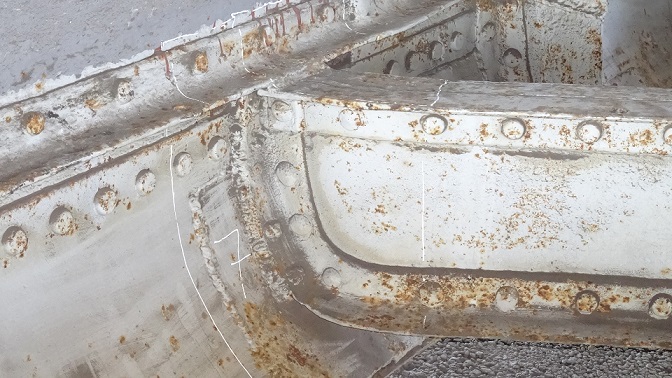

Patch 1 near the bridge stop. Different types of fastenings to try
Brunel Swivel Bridge

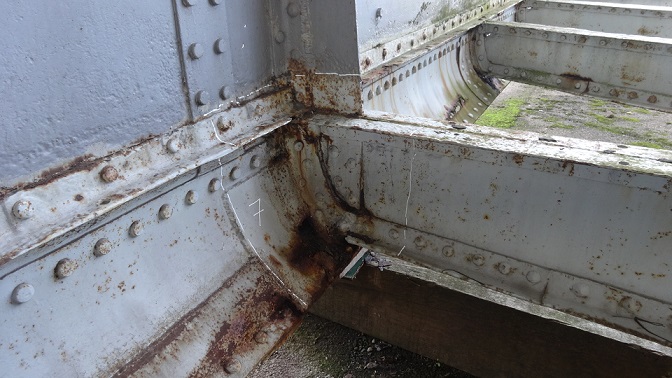

Patch 7 inside by road timber support
Brunel Swivel Bridge
Trial area to blast

Tuesday 11 November 2014

Brunel Swivel Bridge

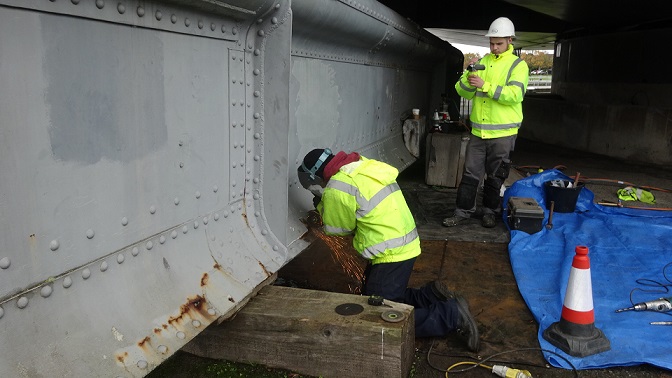

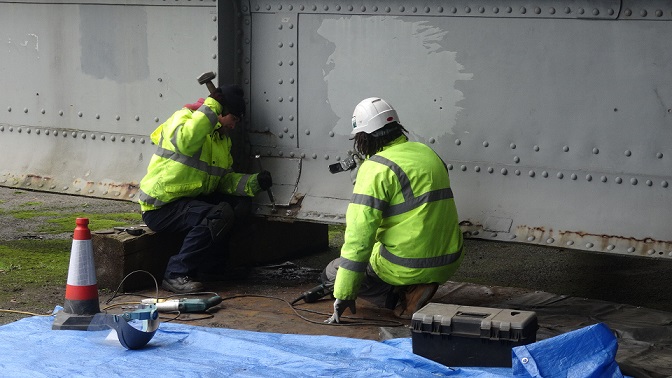

Dorothea starting to cut a panel out, and keeping a photographic record
Brunel Swivel Bridge

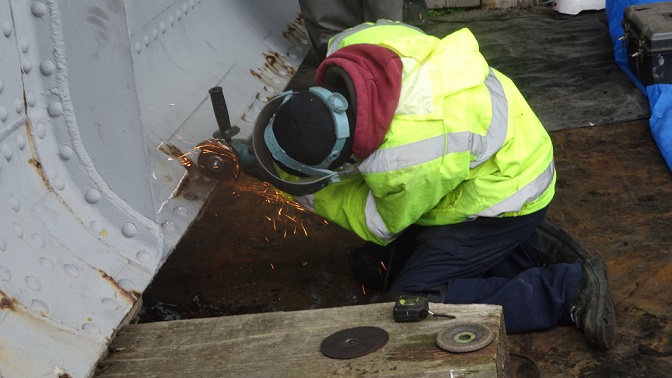

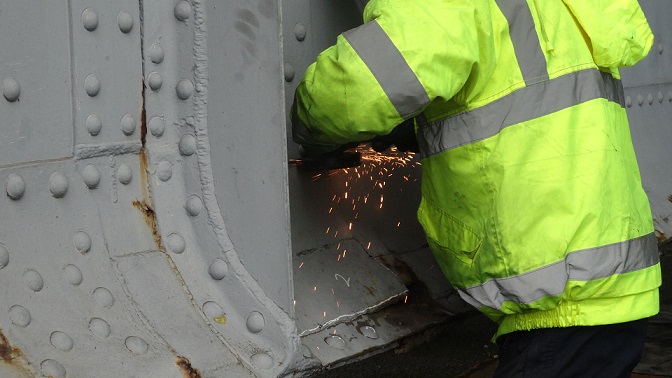

hard work cutting wrought iron
Brunel Swivel Bridge
two rivet head cut off, two more to do
Brunel Swivel Bridge
more cutting
Brunel Swivel Bridge

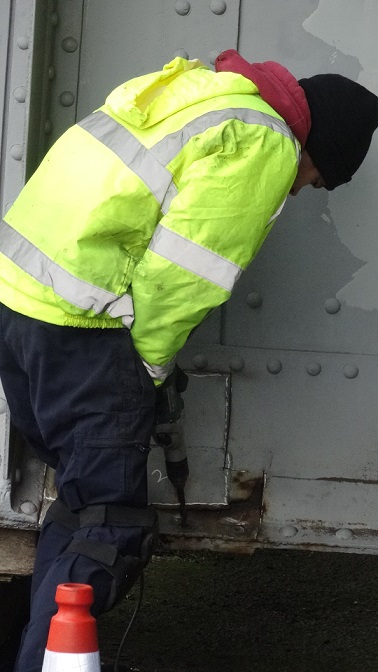

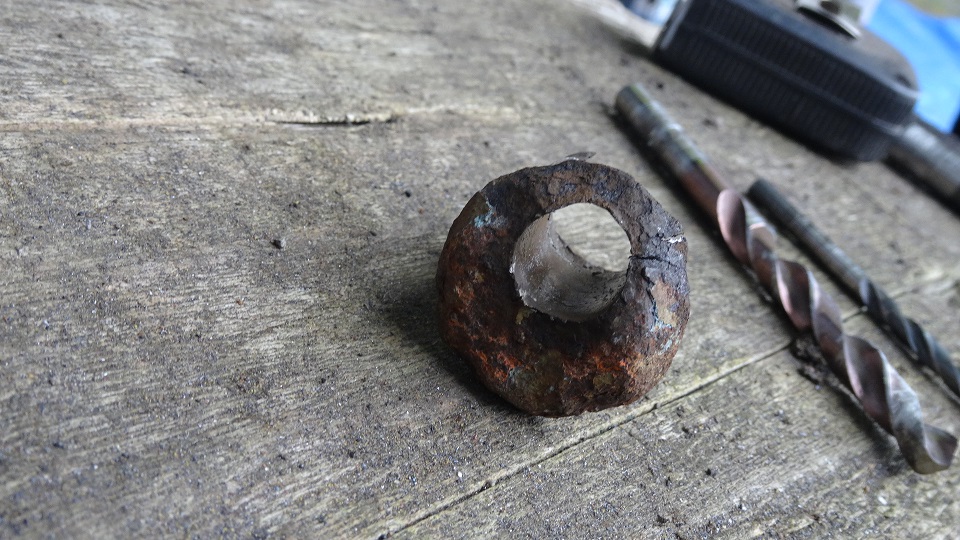

drilling rivet out. Rivets very hard too
Brunel Swivel Bridge

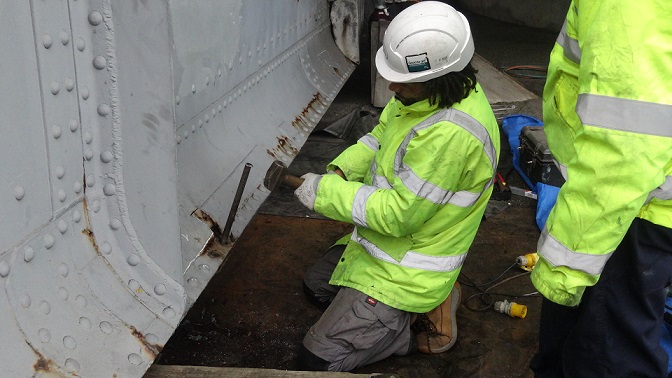

try the lump hammer and drift method now
Brunel Swivel Bridge
nearly there now
Brunel Swivel Bridge
success
Brunel Swivel Bridge
Brunel Swivel Bridge
Brunel Swivel Bridge

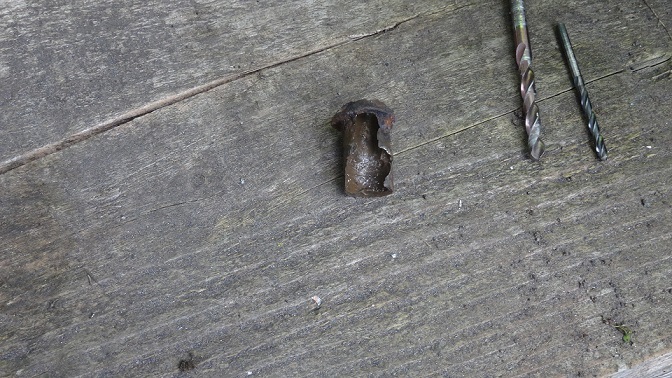

long rivets needed due to joint
Brunel Swivel Bridge

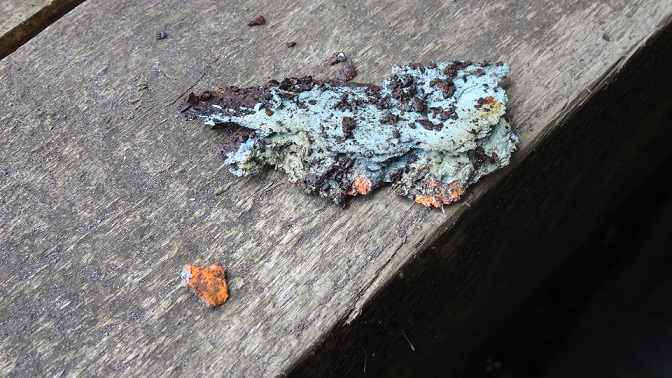

paint sample
Brunel Swivel Bridge

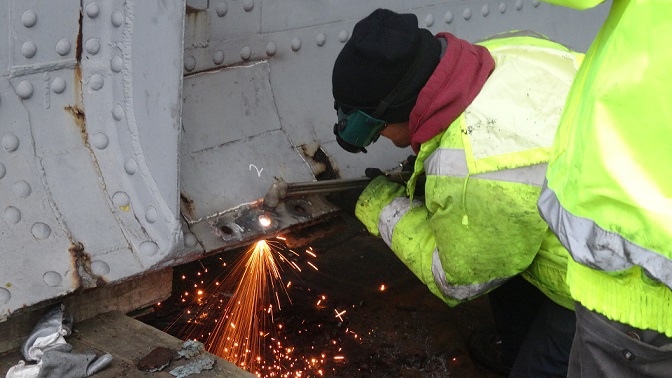

using acetyline this time
Brunel Swivel Bridge

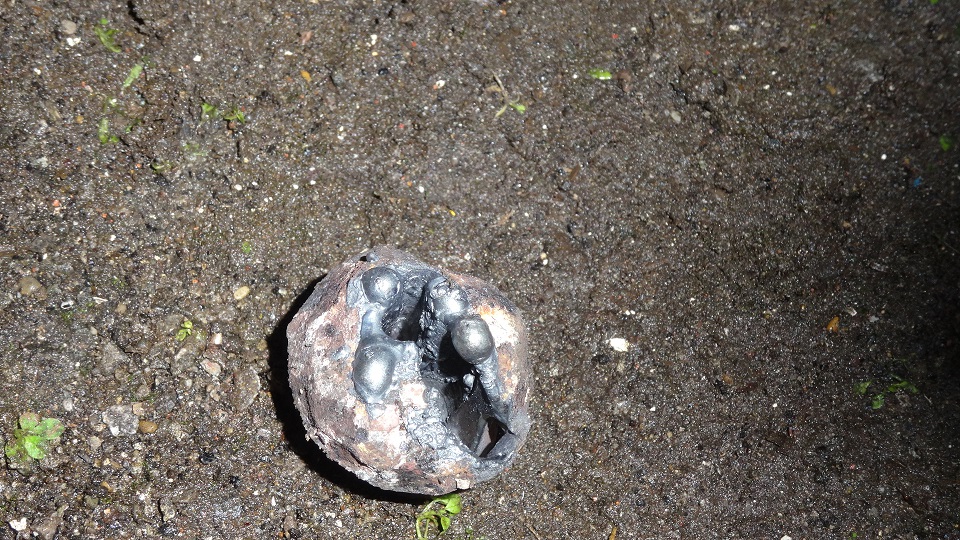

rivet removed by acetyline
Brunel Swivel Bridge

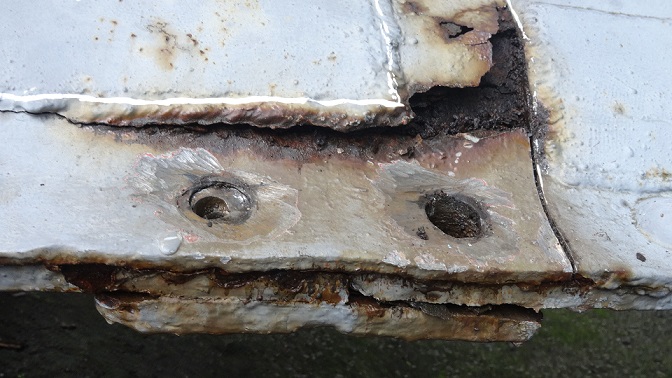

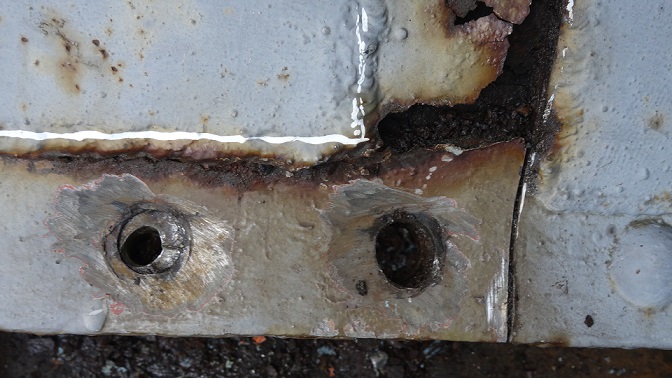

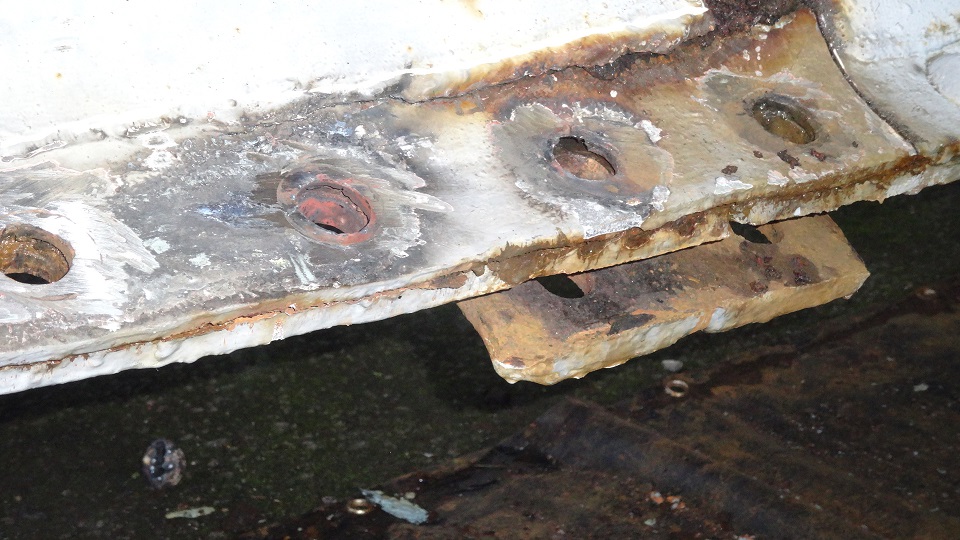

all out
Brunel Swivel Bridge

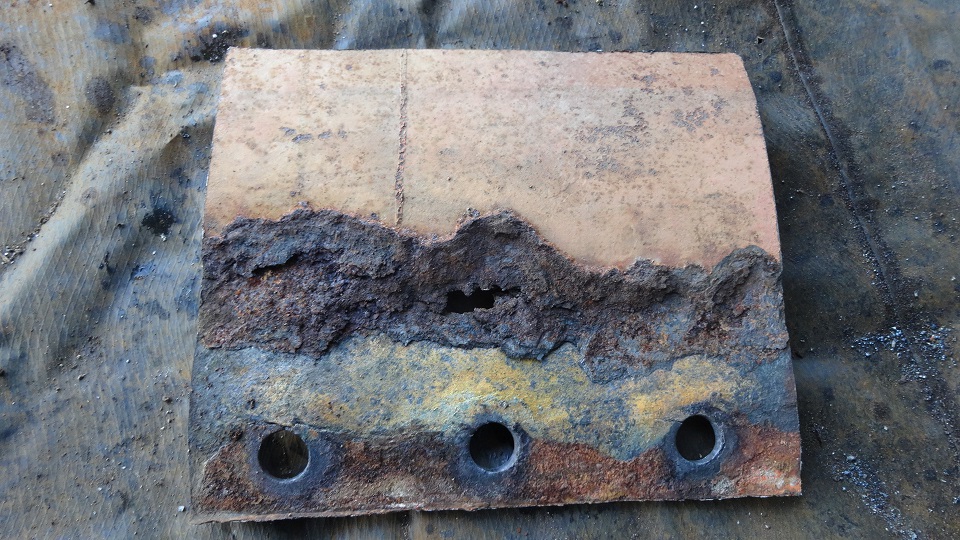

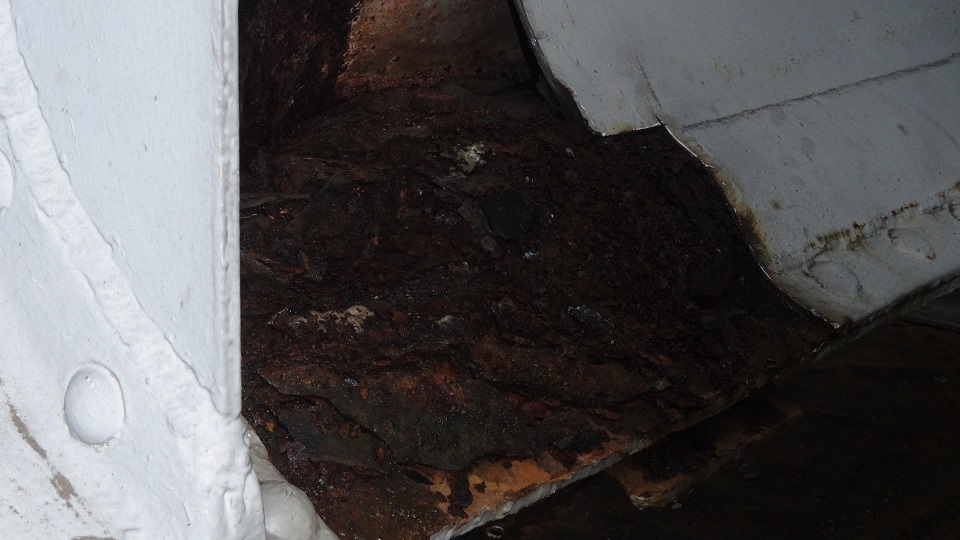

plate levered off- so much rust. The repair has caused more problems
Brunel Swivel Bridge
so sad
Brunel Swivel Bridge

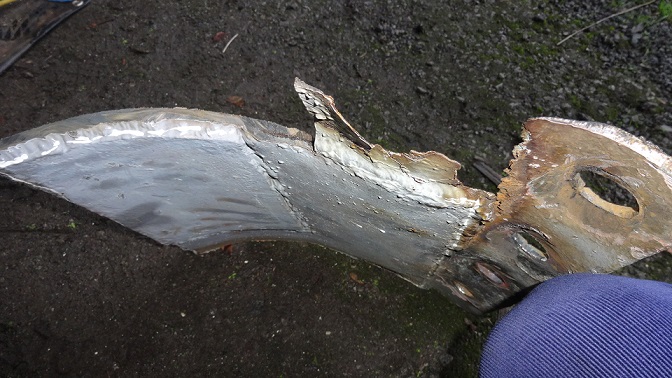

the patch is so thin
Brunel Swivel Bridge

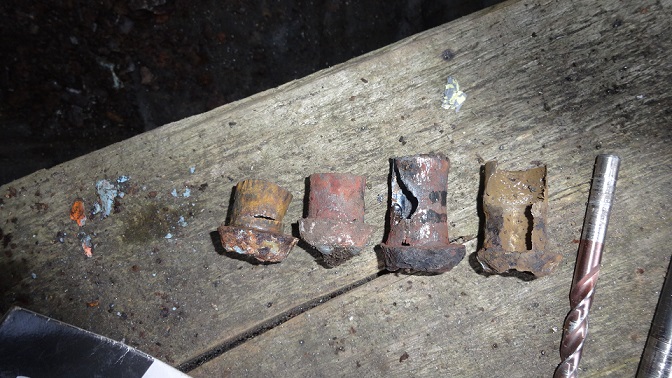

the rivets
Brunel Swivel Bridge

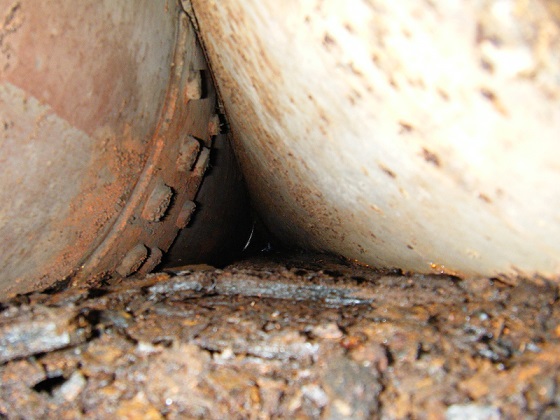

the second plate came off quicker. Rust at the point of contact with the base of the bridge
Brunel Swivel Bridge
in the triangular section, some good. Not much evidence of paint!
Brunel Swivel Bridge

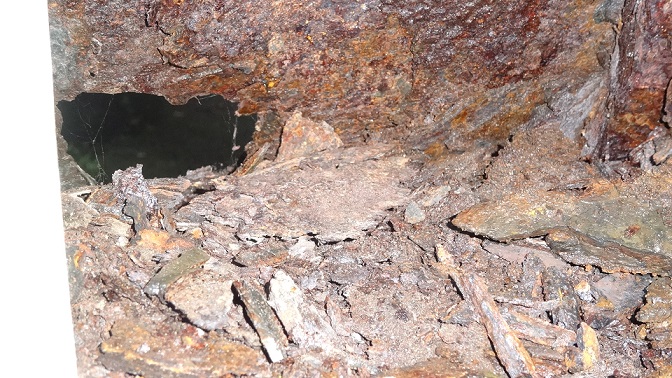

some bad. We have now put temporary plates on to avoid further damage
Brunel Swivel Bridge

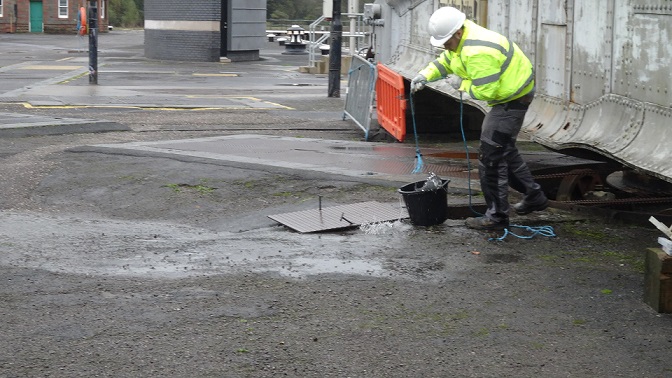

bailing out the water before the slurry can be removed
Brunel Swivel Bridge

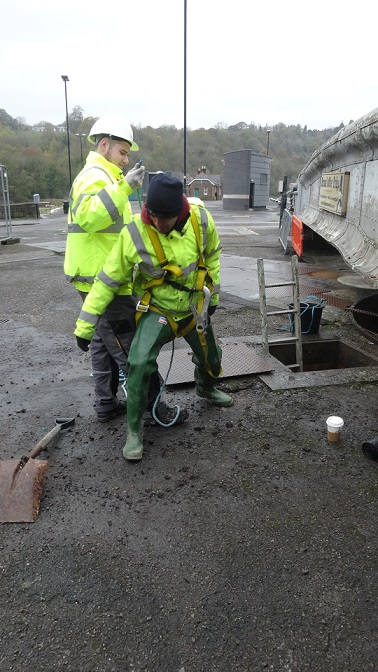

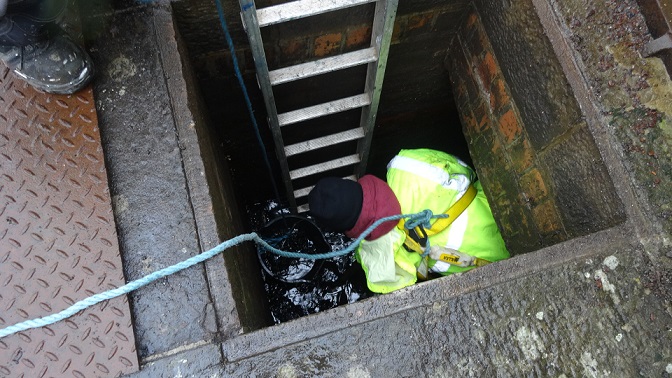

getting properly kitted up. No idea how much slurry to remove
Brunel Swivel Bridge
very tarry
