June 2017

North West turntable inner abd outer wheel bearings
Brunel Swivel Bridge
First remove the top caps, and remove the bearings. Identify them for when they are returned
Brunel Swivel Bridge

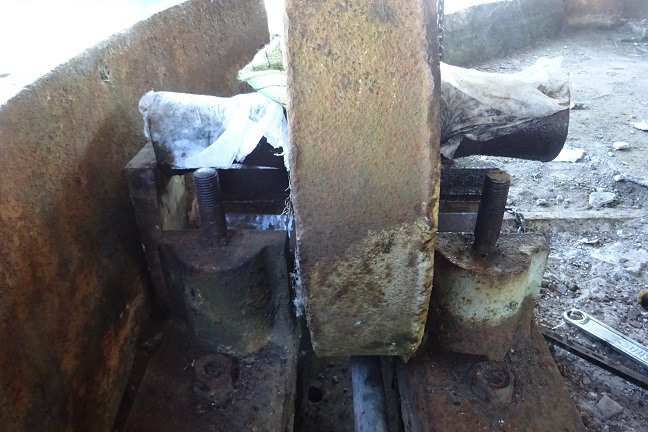

Lift the wheel. If you look closely you can see parts of three people! Geoff, Ian, Bob and Martyn were in charge.
Brunel Swivel Bridge

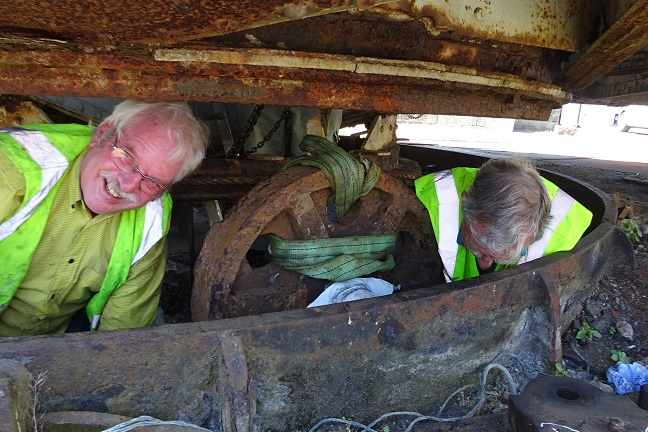

Geoff and Ian
Brunel Swivel Bridge
Martyn separating the bottom cap and bearing
Brunel Swivel Bridge

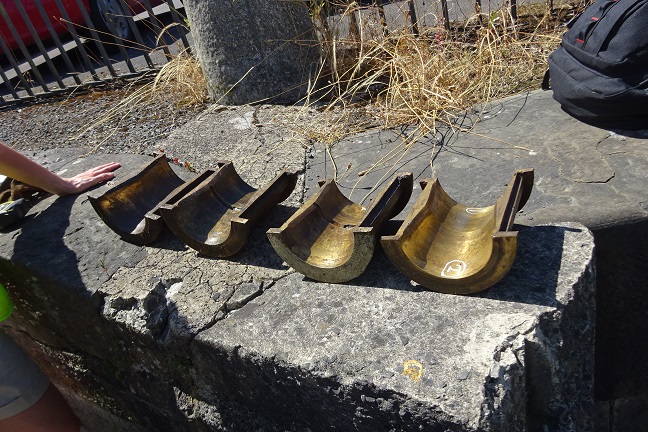

Inner and outer bearings removed. Clearly the bottom bearings do not have lubrication holes
Brunel Swivel Bridge

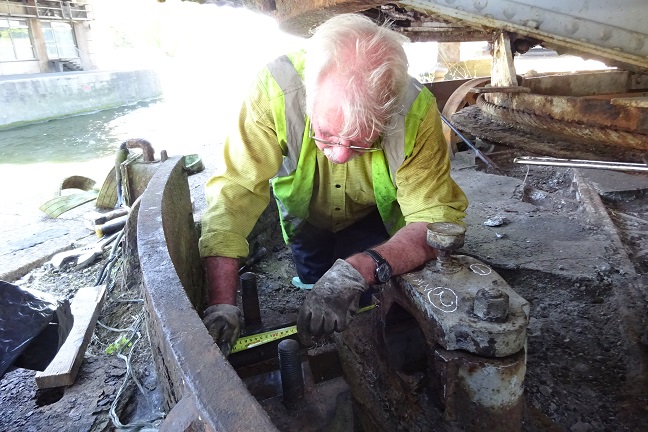

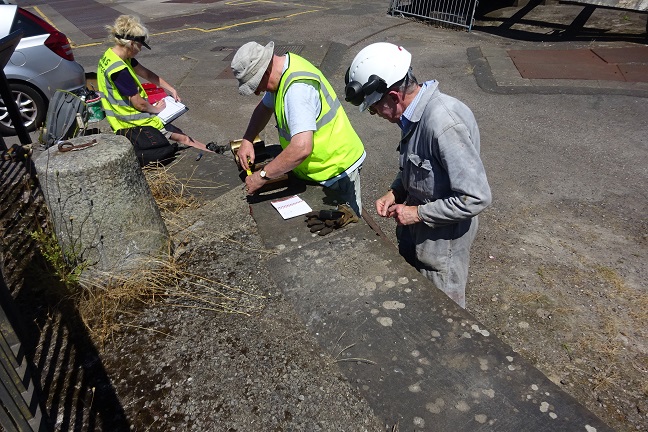

Bob measuring the bearings with Martyn standing by. Sal doing her survey.
Brunel Swivel Bridge

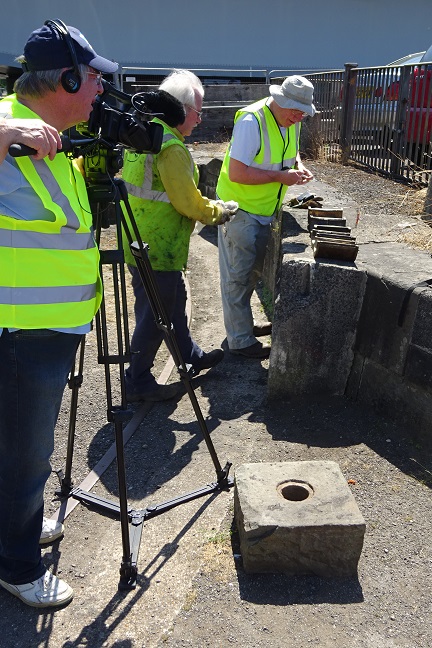

Julian videoing Bob
Brunel Swivel Bridge

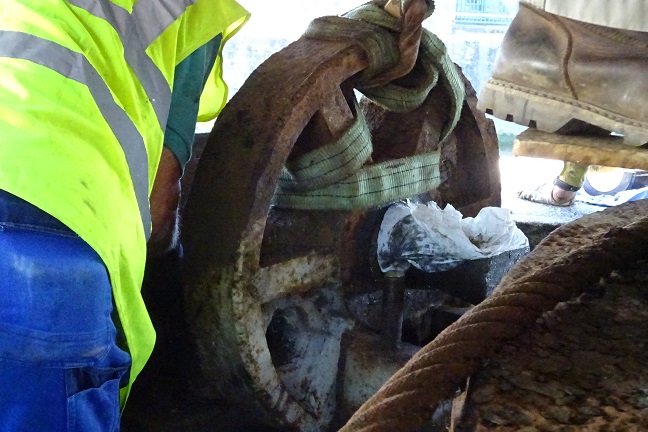

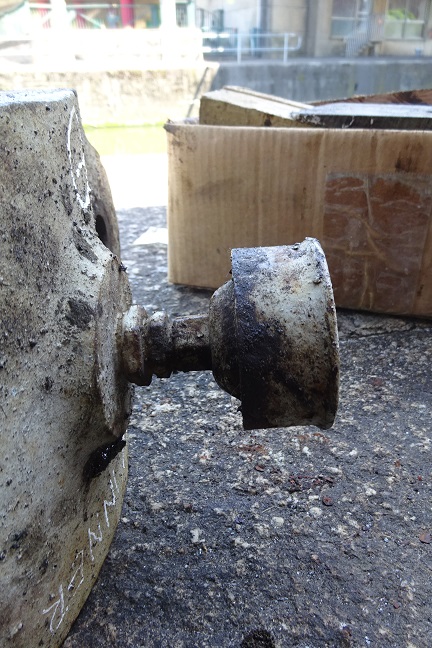

One worn wheel!
Brunel Swivel Bridge
Another shot of the worn wheel
Brunel Swivel Bridge

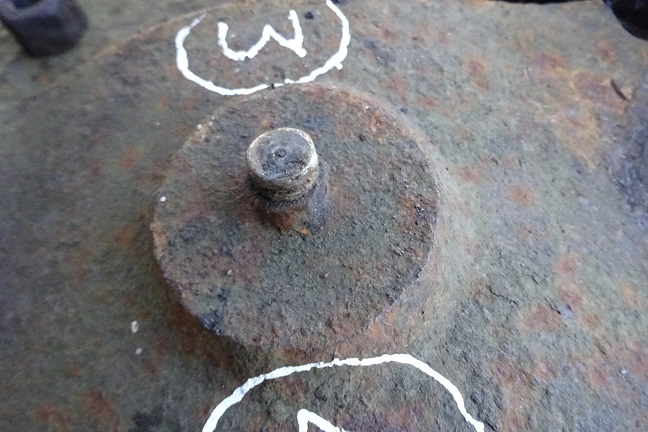

Rothmans screw in greaser on one cap
Brunel Swivel Bridge

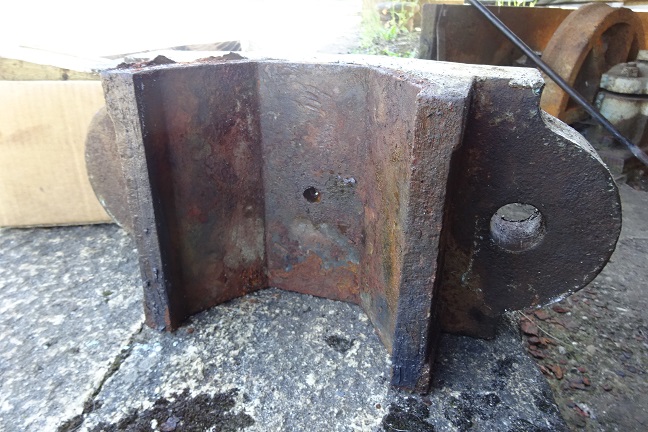

Hexagonal greaser on other cap, requiring a grease gun
Brunel Swivel Bridge

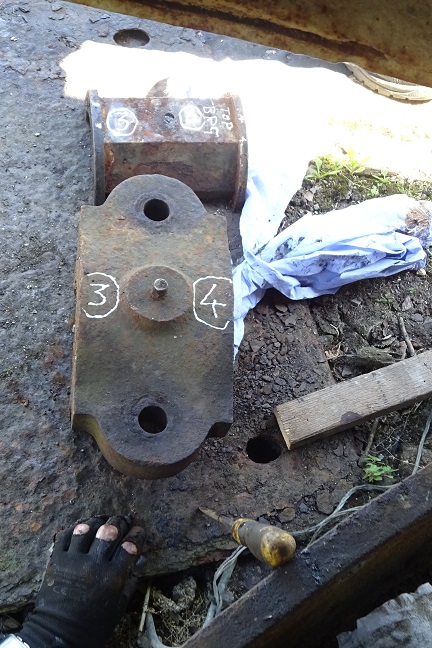

top cap
Brunel Swivel Bridge

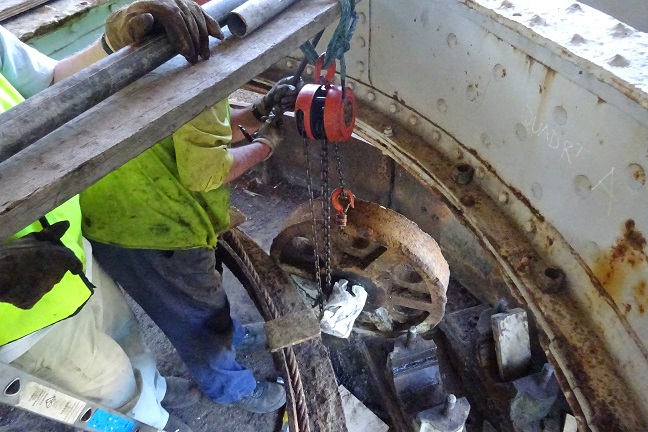

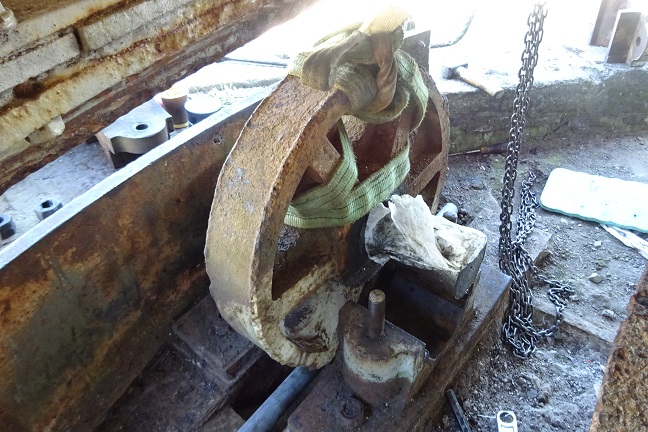

Geoff and Bob manoevring the wheel away from the bearing to save time when the new wheel comes back
Brunel Swivel Bridge
more measuring
Brunel Swivel Bridge

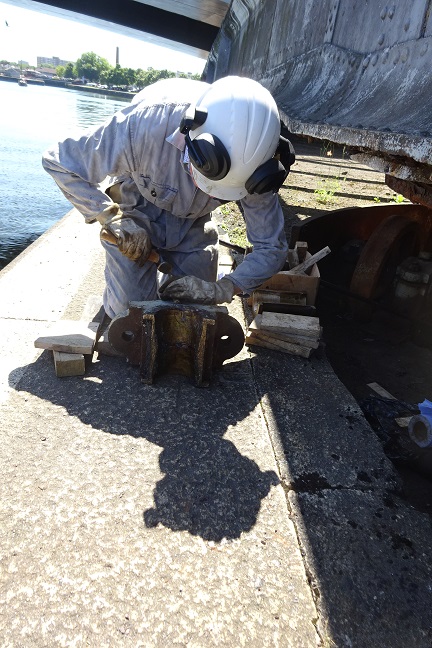

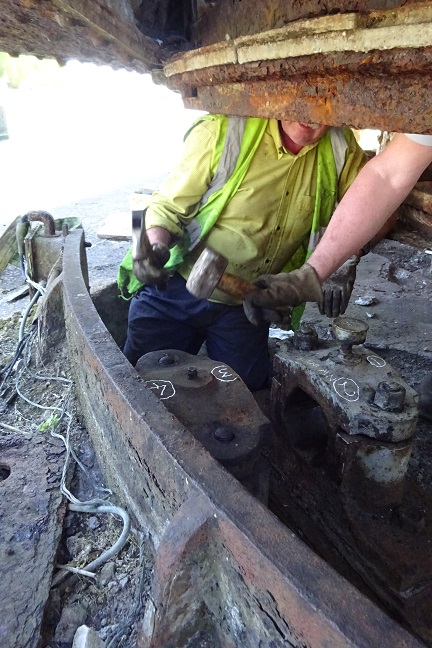

Geoff and Bob doing synchronised hammering to put the caps back on
Surveying
Brunel Swivel Bridge

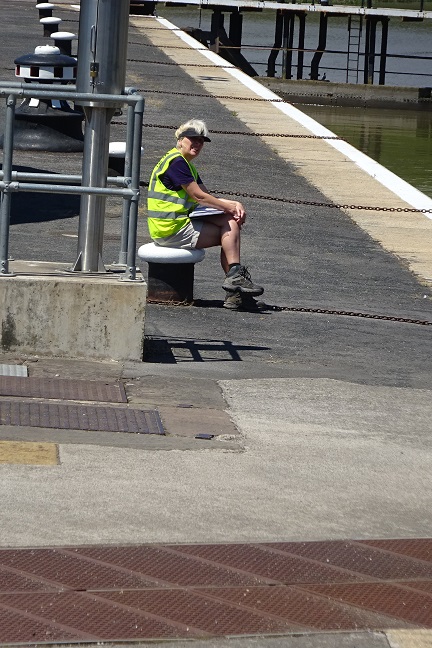

Sal surveying sitting on a convenient capstan
Brunel Swivel Bridge
Gratifying to see several groups coming to look at the area
