Brunel Swivel Bridge Project Photos February 2019

Page contents

Investigative Work in 2019


Brunel Swivel Bridge

2019 investigative work is on the rotation of the bridge

Details of work

Details of progress in 2013

Details of progress in 2014

Details of progress in 2015

Details of progress in 2016

Details of progress in 2017

Details of progress in 2018

Details of progress in 2019

February 2019

Investigating the wheels Rotor Wheels photos
Brunel Swivel Bridge

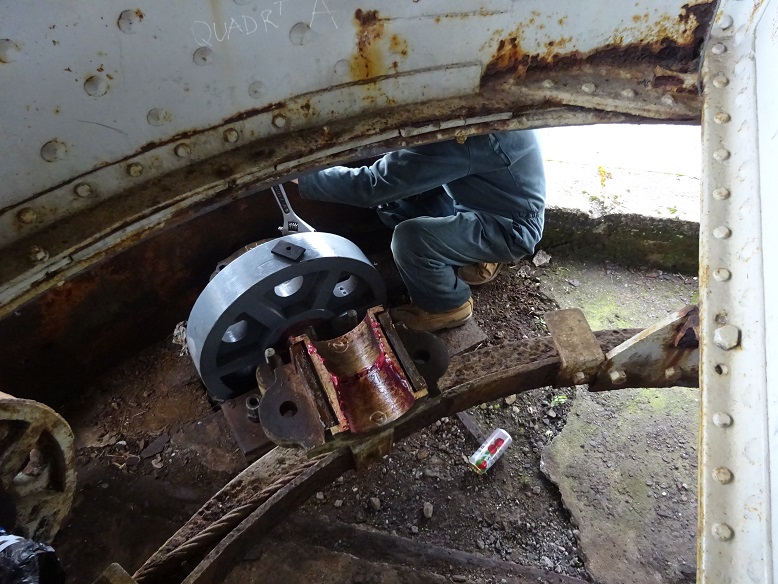

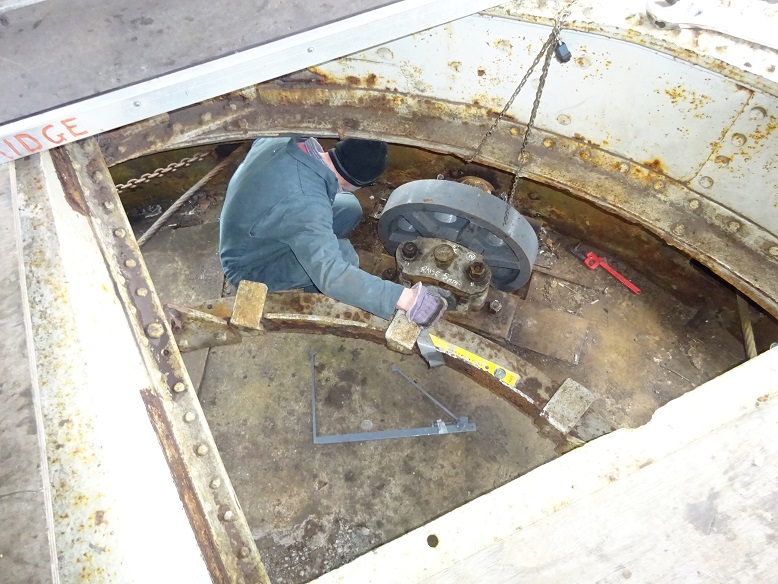

Julian working on the north east wheel. Note the home made measuring tool
Brunel Swivel Bridge

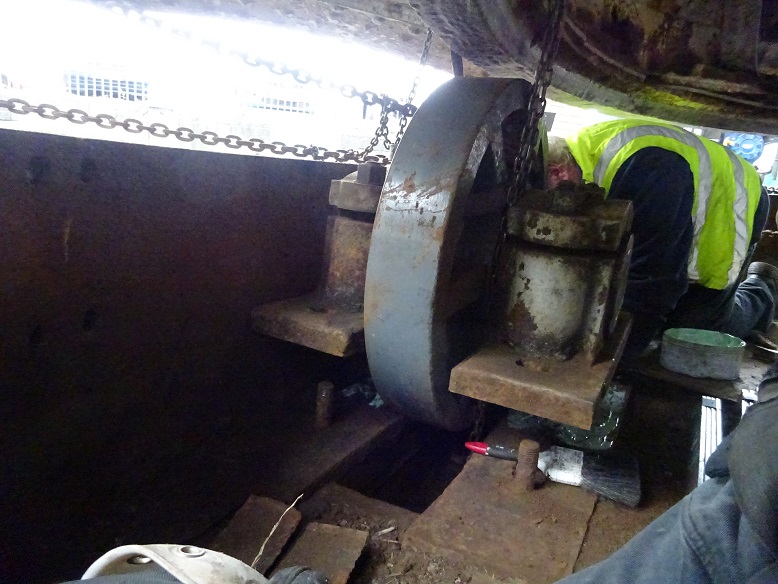

Taking the bearing apart again
Brunel Swivel Bridge

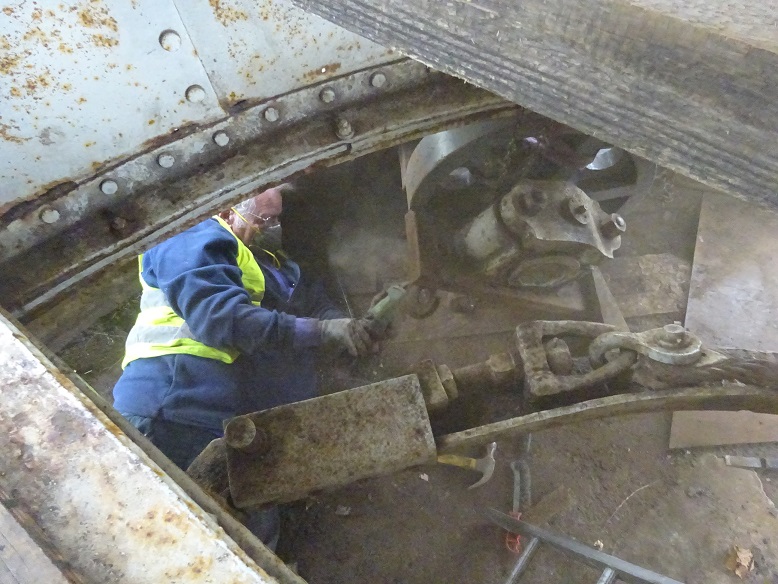

Charlie taking the south west wheel apart again
Brunel Swivel Bridge
Geoff cleaning the undersides
Brunel Swivel Bridge

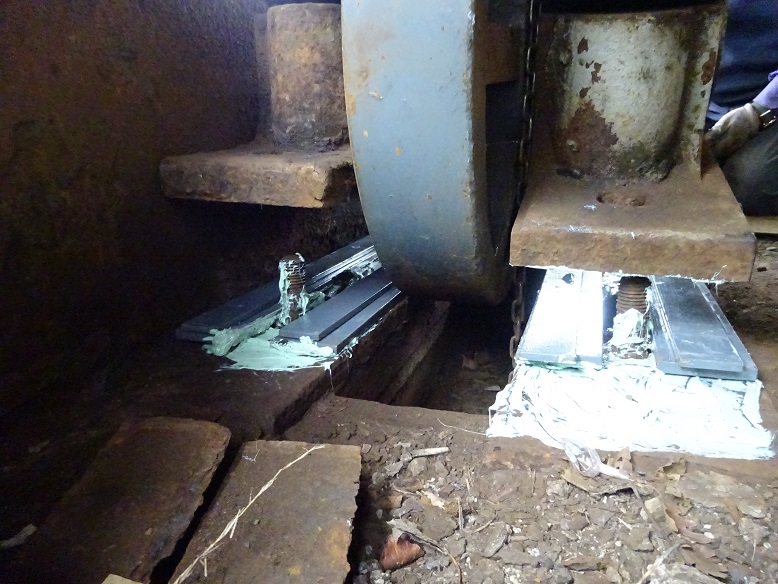

Grease being applied before reassembly. Packing strips at the ready
Brunel Swivel Bridge

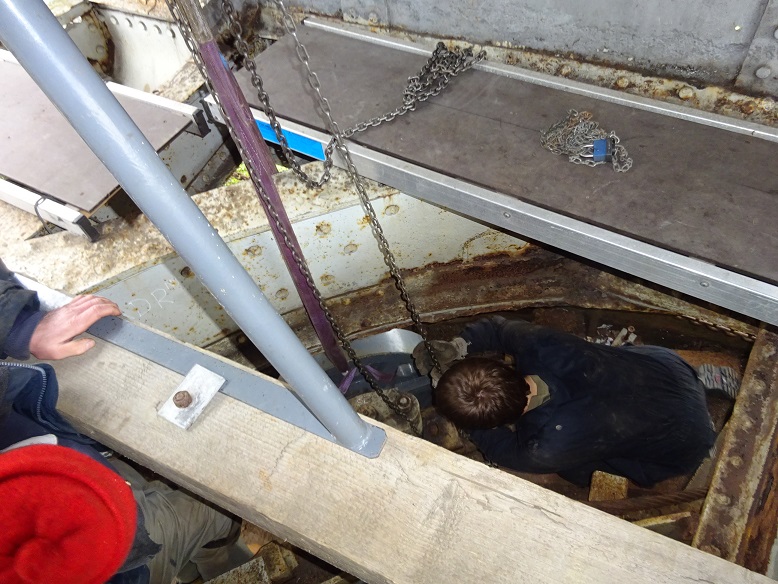

Taking a photo whilst cleaning out wheel pit yet again, and putting grease on
Brunel Swivel Bridge
All greased up
Brunel Swivel Bridge

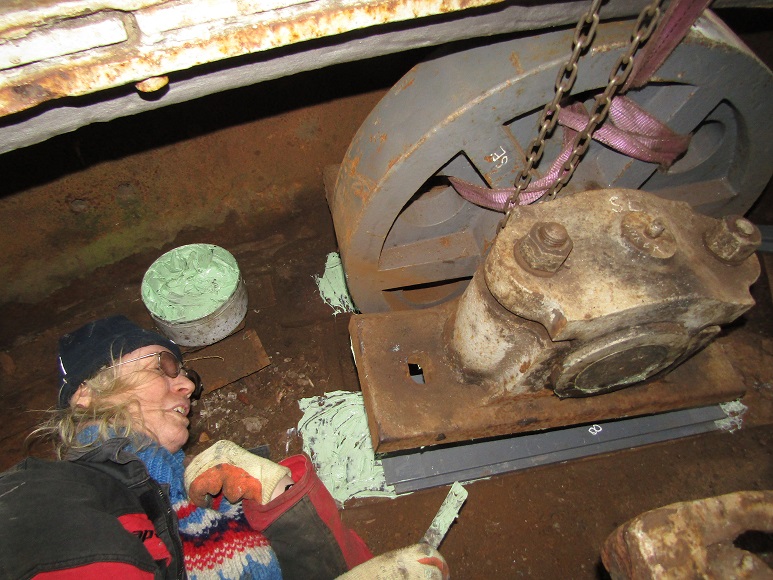

Maggie getting her hands greasy
Brunel Swivel Bridge

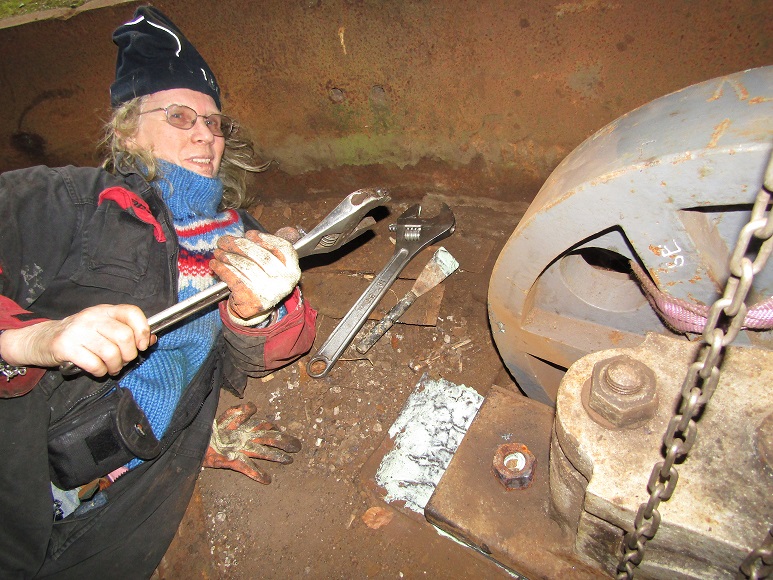

Wheel lowered and Maggie tightens the nuts
Brunel Swivel Bridge

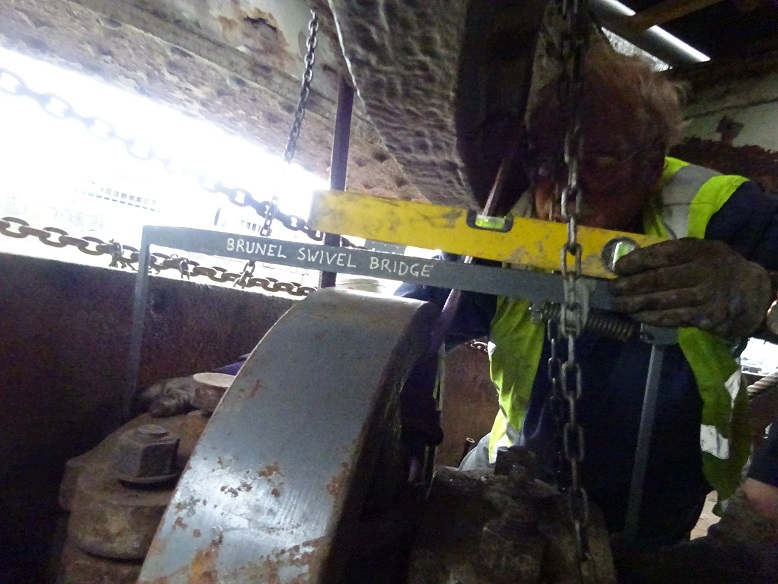

David and Maggie checking the level of the two west wheels
Brunel Swivel Bridge

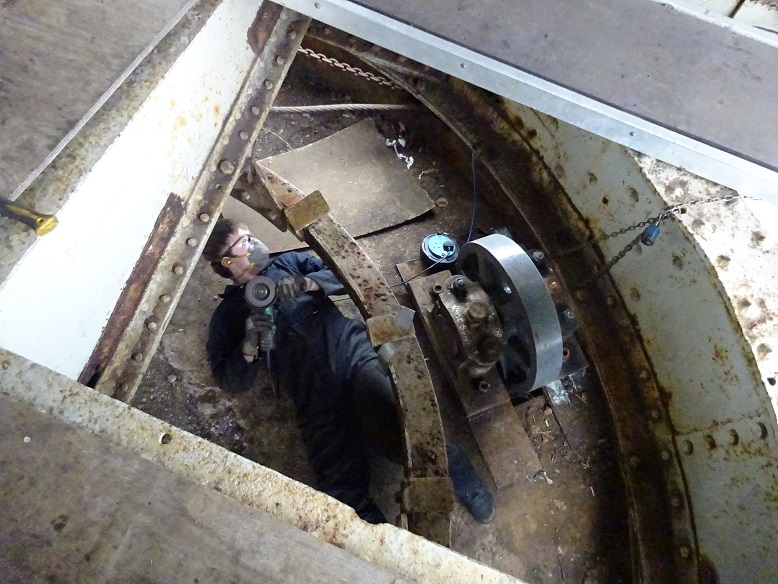

Charlie grinding the turntable surface
Brunel Swivel Bridge

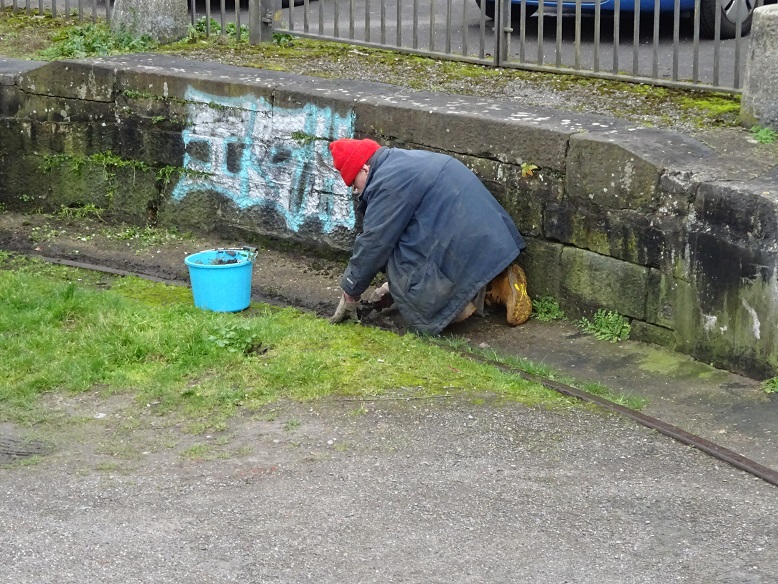

Ken weeding round the wheel
Brunel Swivel Bridge

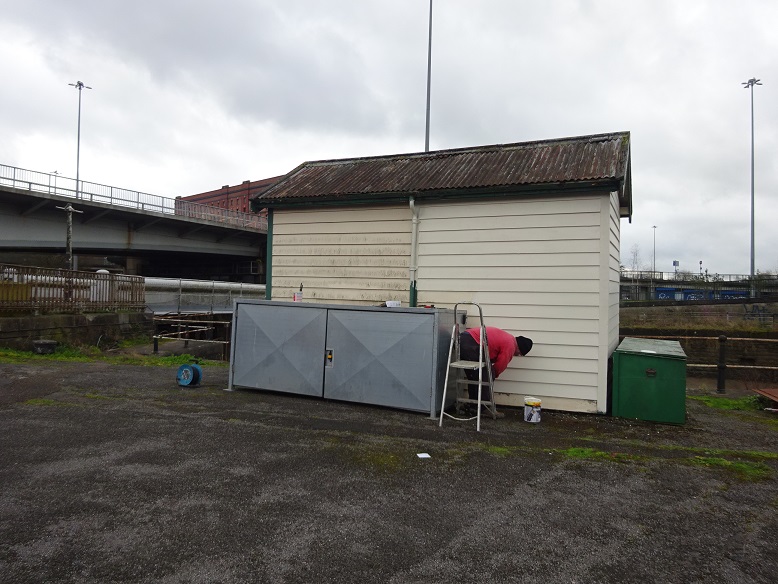

Martin painted the hut
Brunel Swivel Bridge
Someone has a sense of humour even though they cant spell
