Brunel Swivel Bridge Project Photos March 2017

Page contents

Investigative Work in 2017


Brunel Swivel Bridge

2017 investigative work is on the rotation of the bridge

Details of work

Details of progress in 2013

Details of progress in 2014

Details of progress in 2015

Details of progress in 2016

Details of progress in 2017

March 2017

Trip by Warminster School Friday 18 March
Brunel Swivel Bridge
Saw Royal Navy Lynx helicopters' final flight in farewell tour while setting up for the trip!
Brunel Swivel Bridge
The 42 pupils were split up into two groups. There were more French than English so there were three interpreters
Brunel Swivel Bridge
Maggie led one group round the back to show them three generations of swing bridge, and finer details of Brunel's bridge and the new patches, while Geoff's group were shown the wheels and the work in progress and a fox skull we found
Brunel Swivel Bridge

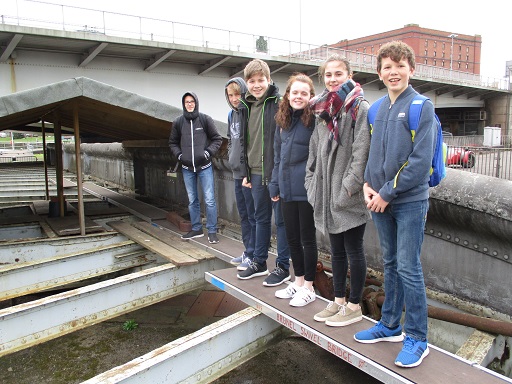

Pupils on the bridge
Brunel Swivel Bridge
Farewell photo
Brunel Swivel Bridge
Looking at Maggie's car!

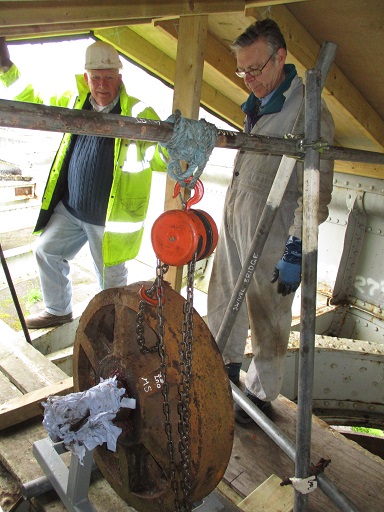

Lifting out the worn wheel
Brunel Swivel Bridge
The wheel is out
Brunel Swivel Bridge

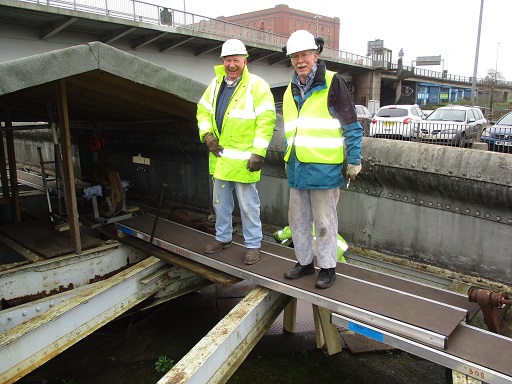

Bob and Martin doing a scientific load-test on a Youngmans Board to see if a board would take the load of a cast iron wheel safely. The answer was 'No', hence the scaffolding trestle we built mid-span between the Bridge and car!
Brunel Swivel Bridge
The wheel is ready to load into the car
Brunel Swivel Bridge

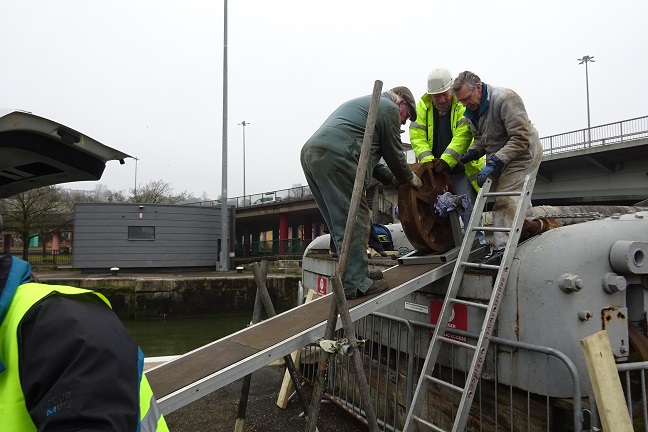

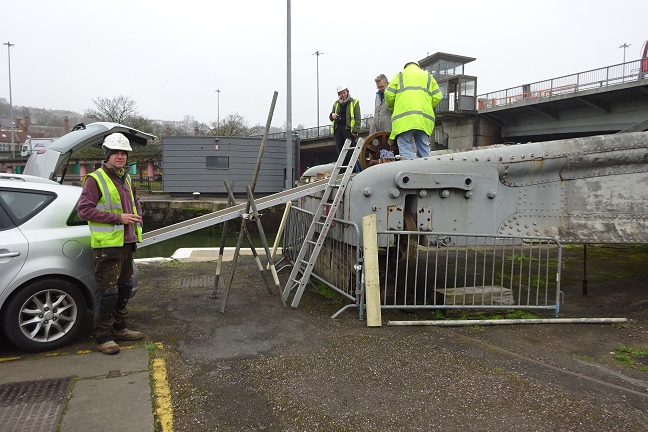

Steady does it. Geoff, Bob and David start to roll it down the ramp on a specially made stand
Brunel Swivel Bridge

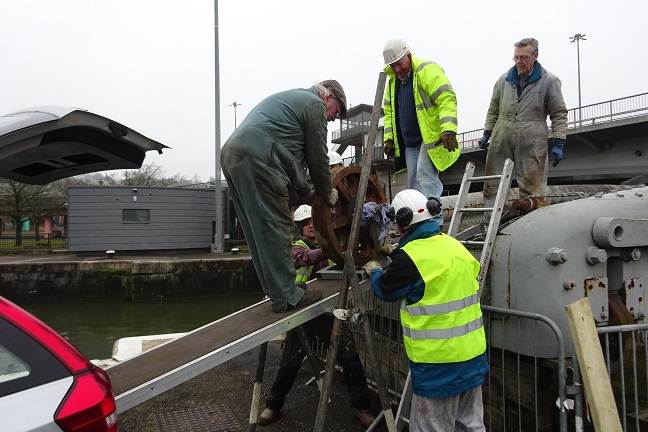

Matthew and martin come to the rescue
Brunel Swivel Bridge

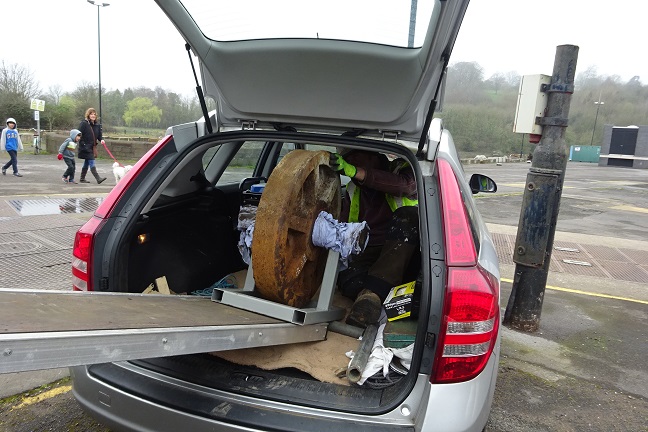

Will it fit into the car?
Brunel Swivel Bridge

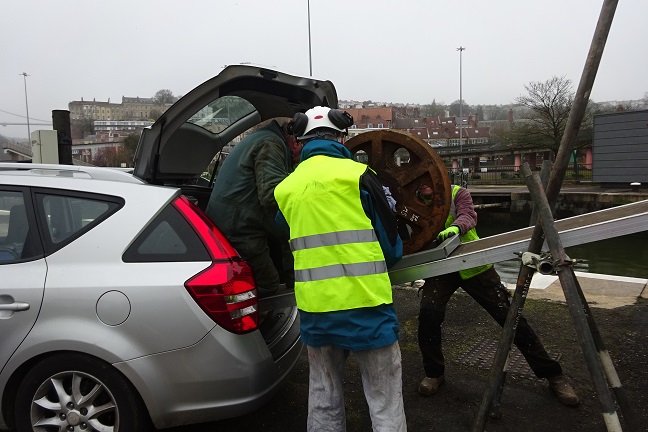

Matthew moving it in position. Can only take one wheel home at a time! Weight would also be a problem!
Brunel Swivel Bridge

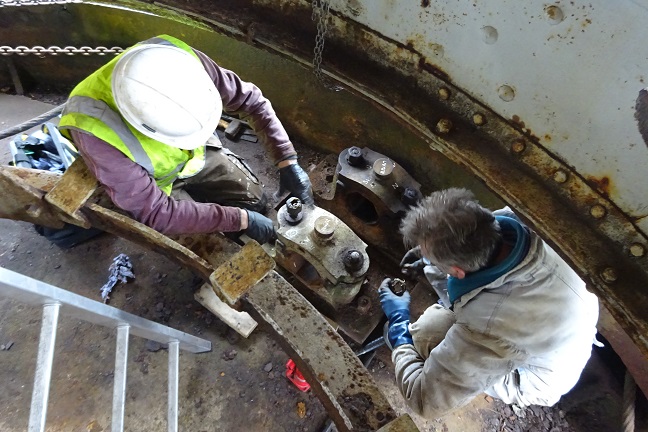

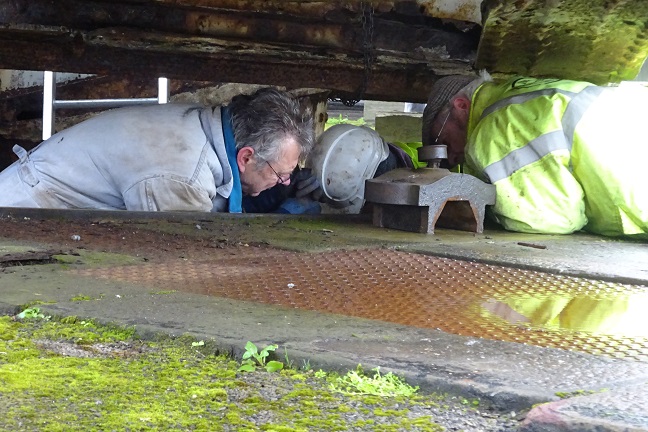

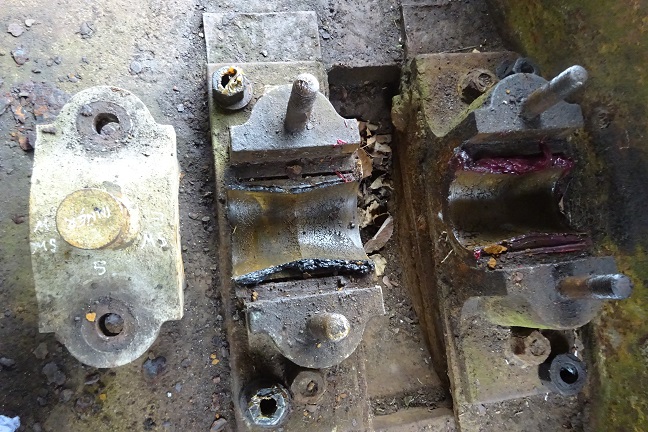

The shells must be reassembled
Brunel Swivel Bridge

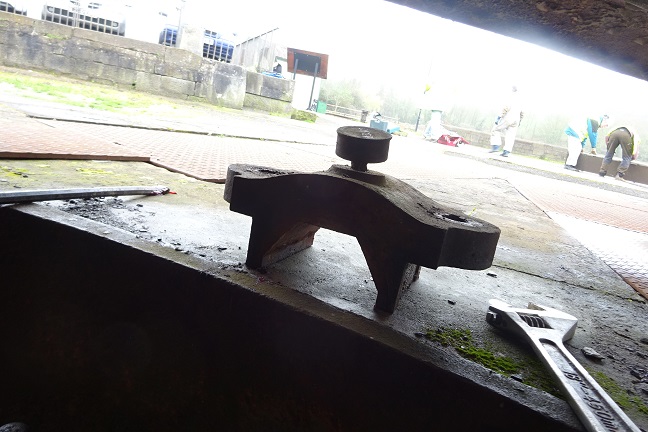

The other shell. Funny how you see other helpers by accident
Brunel Swivel Bridge
3 heads are better than none
Brunel Swivel Bridge
back together again
Brunel Swivel Bridge

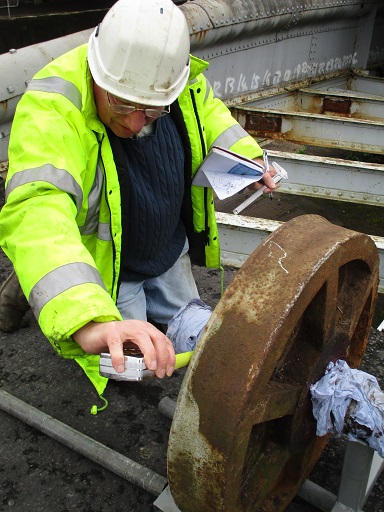

Bob measuring the wheel
Brunel Swivel Bridge
Maggie and Sal did some weeding, after surveying passers by
