Brunel Swivel Bridge
This time we did not have the old stop as a pattern.
Mike had previously dug out all the mess in October 2015.
Brunel Swivel Bridge
Nearly finished. Just need to round to top and put the new cover on

Investigative Work in 2016


Fourth volunteer day of the year spent drawing the most worn wheel bearing, continuing with renewal of timber stops, and painting and weeding.

We were blessed with another sunny day and lots of teamwork. We also had harbour festival activities to watch.

Details of work

Details of progress in 2013

Details of progress in 2014

Details of progress in 2015

Details of progress in 2016

july 2016

Rail end stop
Brunel Swivel Bridge

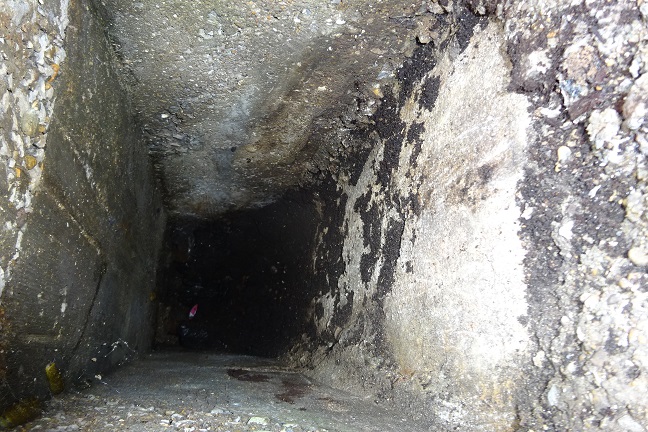

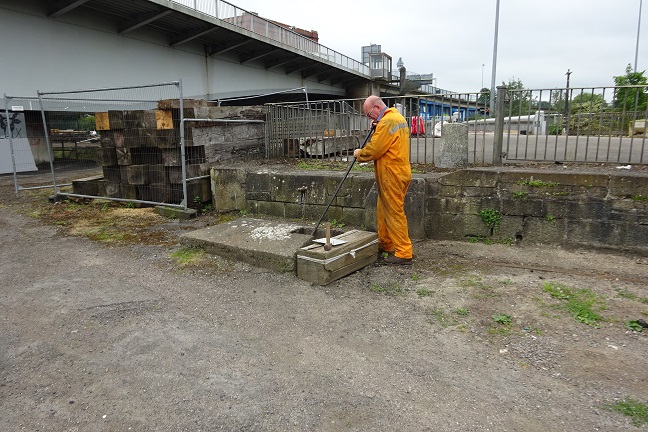

Mike put a base plate in the sloping hole
Brunel Swivel Bridge

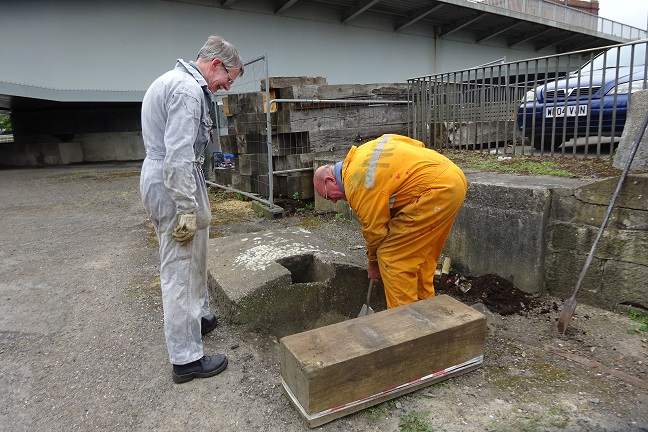

He then started to clear the hole out for the vertical posts, watched by Martyn
Brunel Swivel Bridge

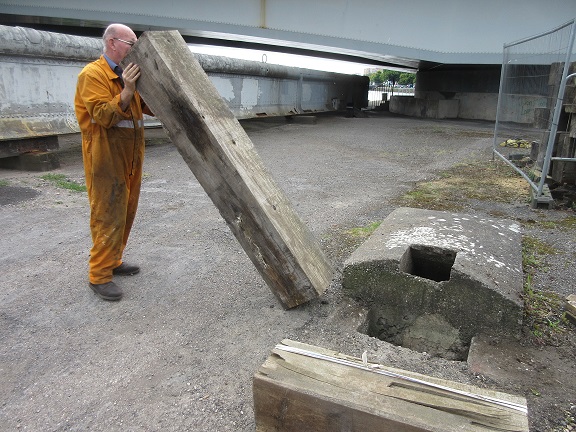

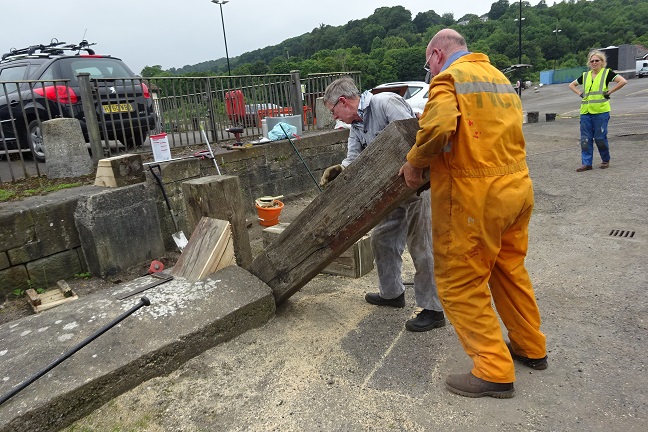

These baulks of timber are heavy
Brunel Swivel Bridge

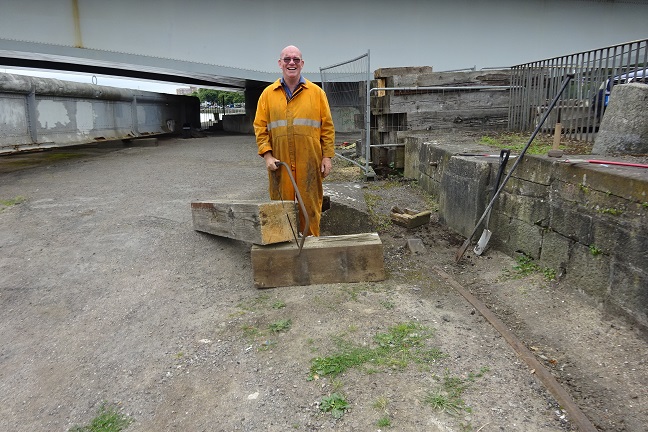

He then had to hand saw the post, seems happy enough
Brunel Swivel Bridge

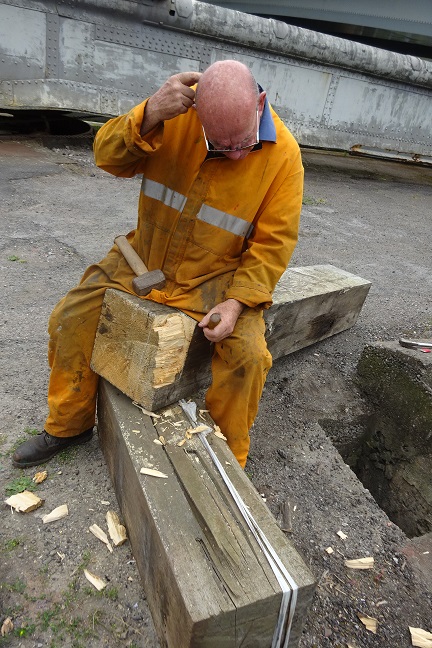

Chiselling caused a bit of thought
Brunel Swivel Bridge

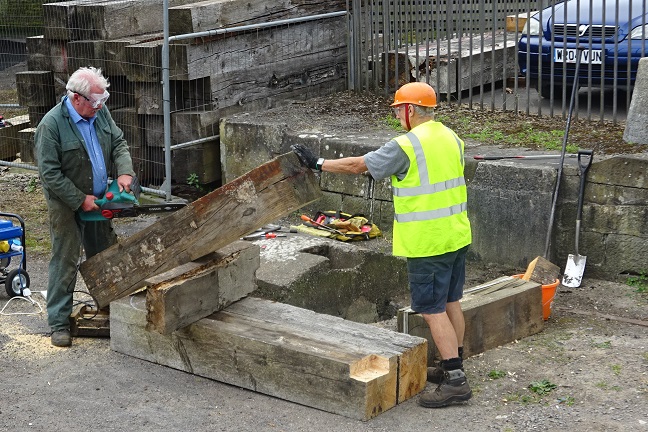

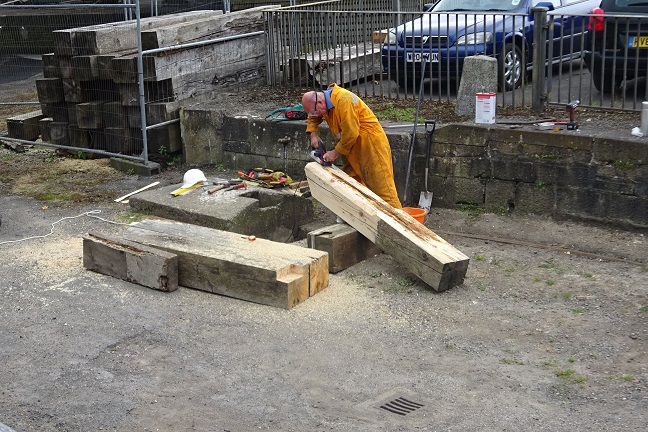

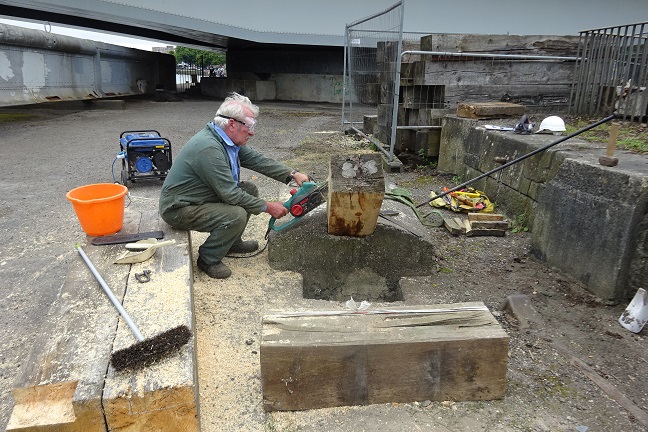

Meanwhile Ian got on with preparing the vertical stops using electric tools watched by Geoff
Brunel Swivel Bridge

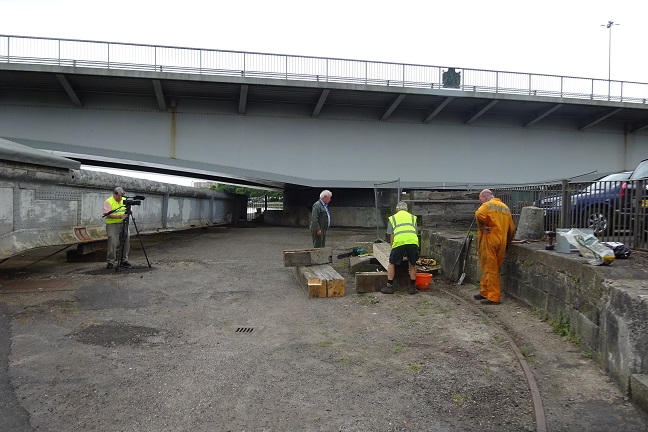

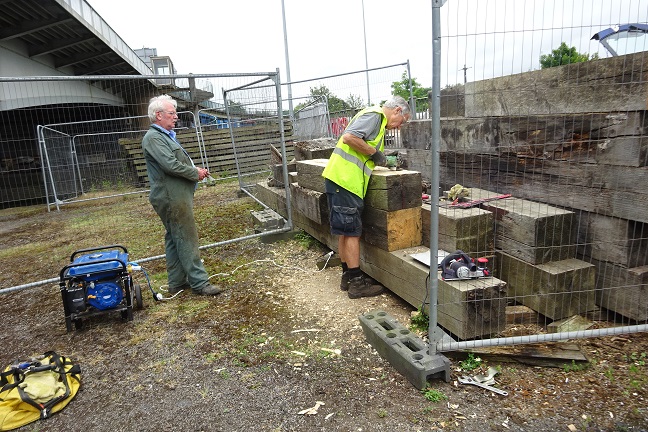

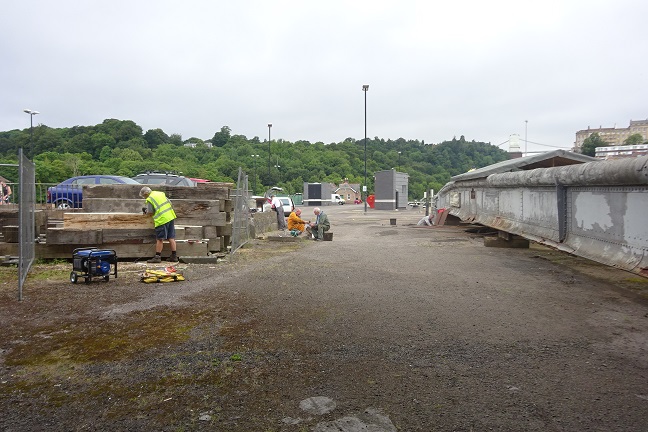

distance shot showing everyone beavering away. Geoff has gone to help Mike.

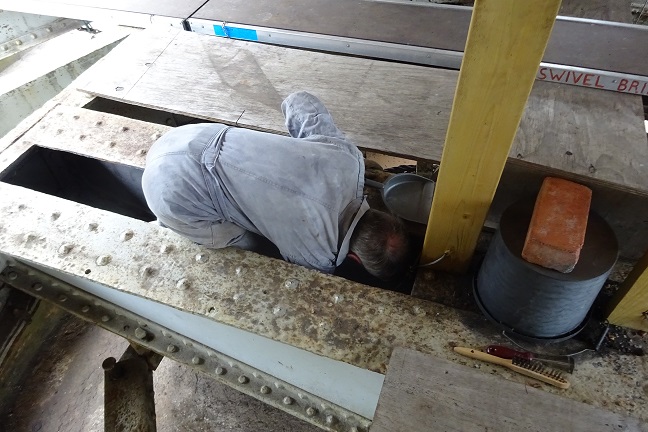

John is drawing the bearing cap, David is working in the hydraulic ram pit
Brunel Swivel Bridge
Julian came round to do some more filming. Ian brought the wood over
Brunel Swivel Bridge

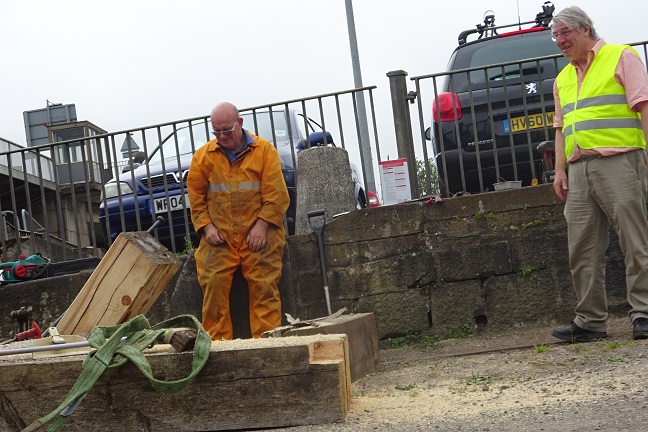

Geoff gtting the wood to fit helped by Ian
Brunel Swivel Bridge

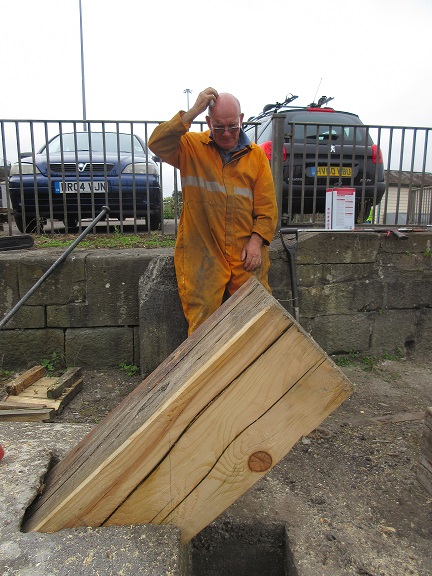

Bit to big. Just got to get it further into the hole
Brunel Swivel Bridge
Geoff and Mike made adjustments
Brunel Swivel Bridge

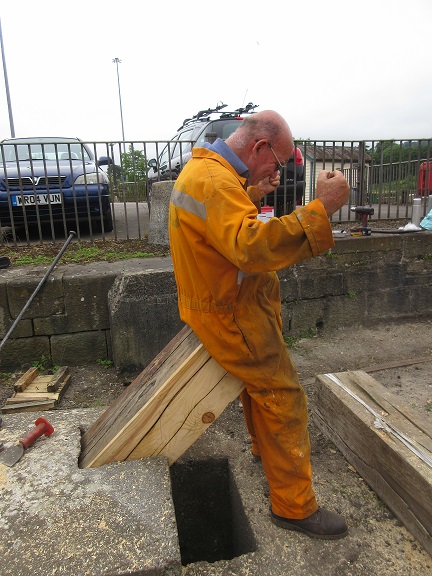

Nearly in but not quite
Brunel Swivel Bridge

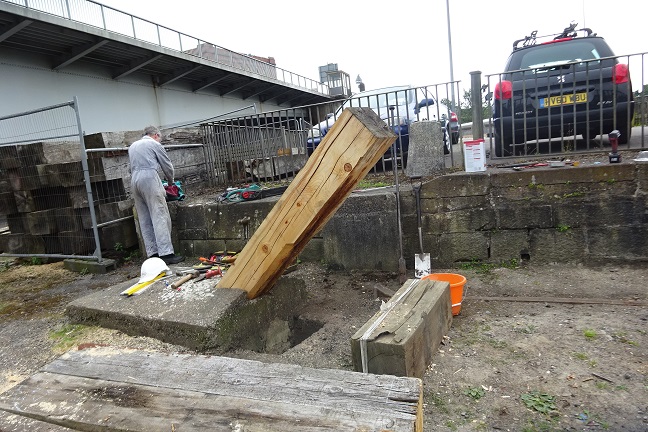

big relief after it hits the bottom, having received an extra push
Brunel Swivel Bridge
Mike looking pleased with his handiwork with Julian
Brunel Swivel Bridge
Geoff then cut the edge to make it vertical
Brunel Swivel Bridge

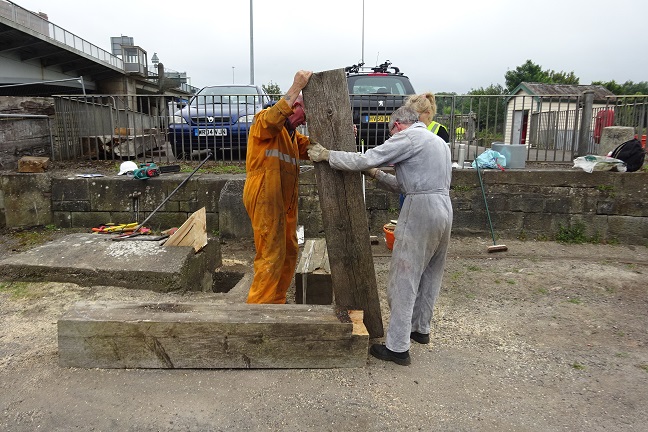

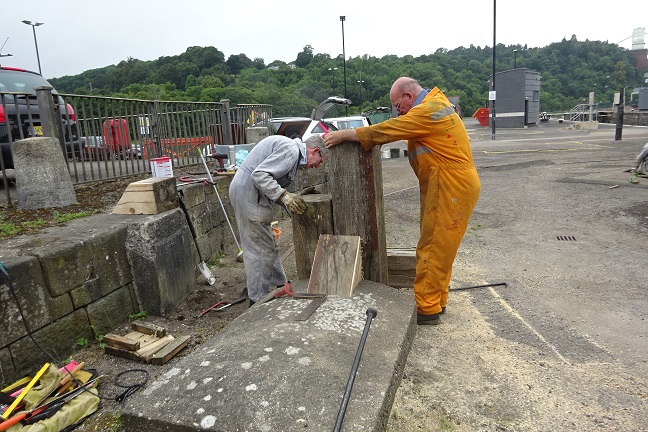

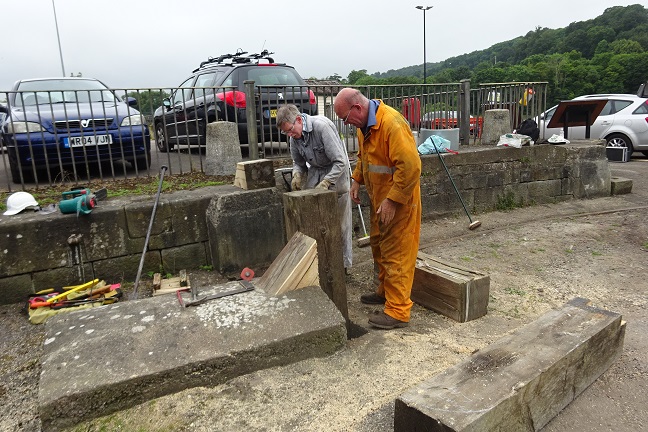

Martin came to help Mike put in the vertical baulks. Sal standing by
Brunel Swivel Bridge
First one went in well
Brunel Swivel Bridge
Second one going in
Brunel Swivel Bridge
Bit of a discrepancy
Brunel Swivel Bridge

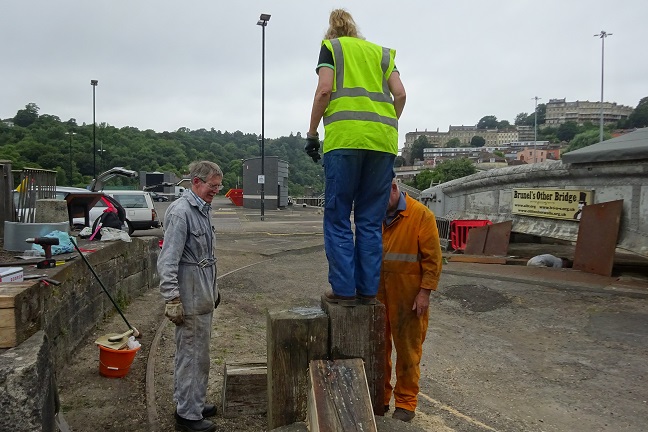

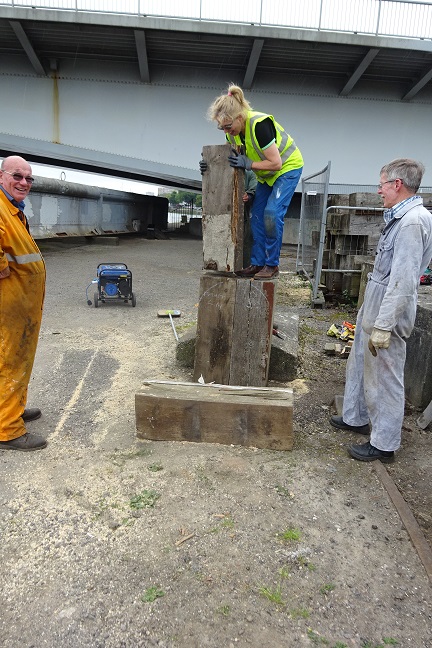

Sal acted as a pile driver much to Martyn's delight
Brunel Swivel Bridge

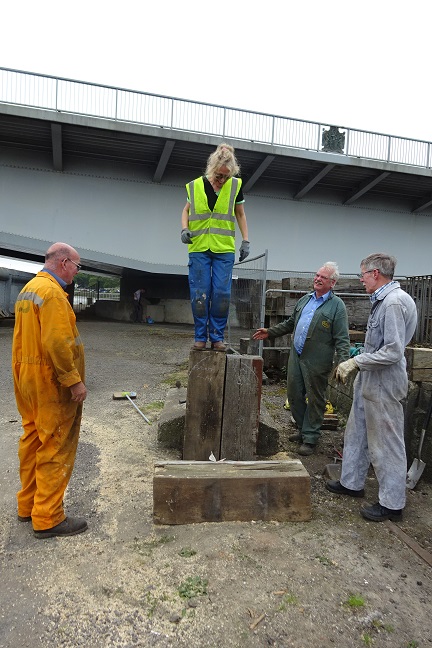

Sal danced up and down to the delight of everyone, biut still a bit to go
Brunel Swivel Bridge
A baulk of timber was lifted up for Sal to finish off the job.
A good laugh and happy productive job. Just need to round the corners and put on the round cover
in due course.
Cleaning the ram pit area
Brunel Swivel Bridge

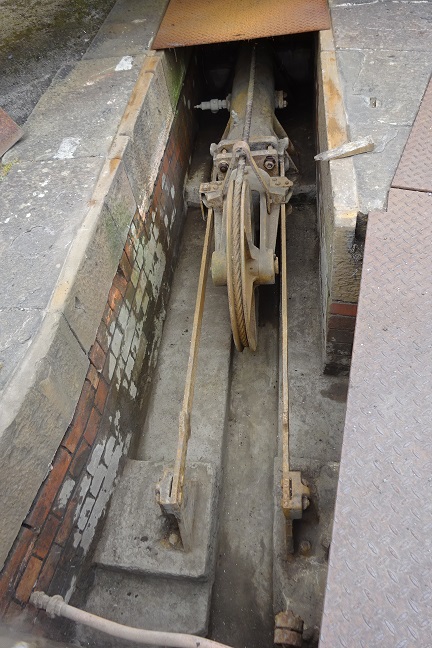

The pit had debris in from the last floods, and new plants
Brunel Swivel Bridge

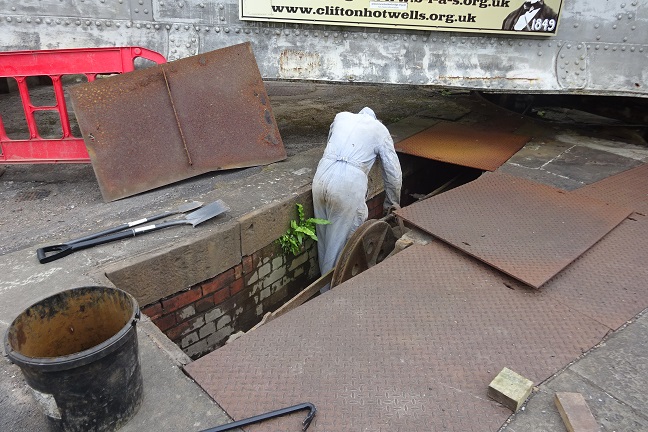

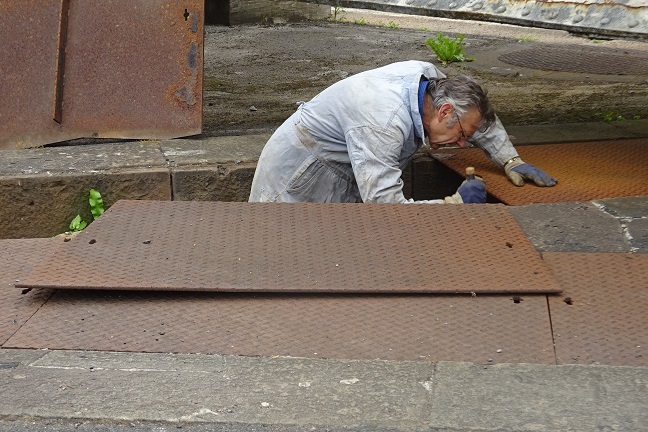

David (looking like the headless man) investigates
Brunel Swivel Bridge
Cleaning well
Brunel Swivel Bridge

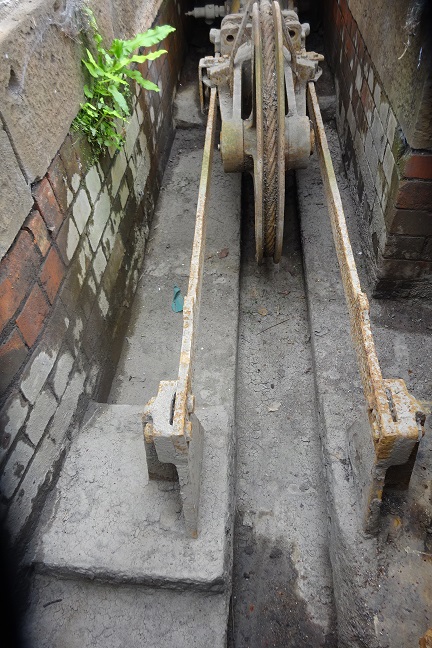

Clean job. Gas pipe in the foreground for nozzles to keep the area warm in winter
Painting the turntable
Brunel Swivel Bridge

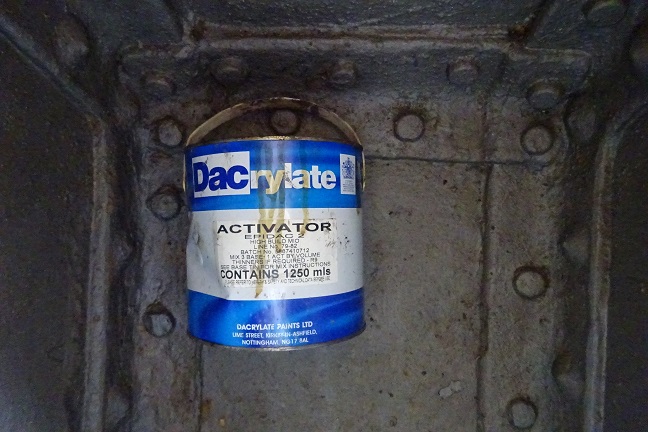

Used Dacrylite to touch up the areas where paint had flaked off due to inadequate preparation
Brunel Swivel Bridge

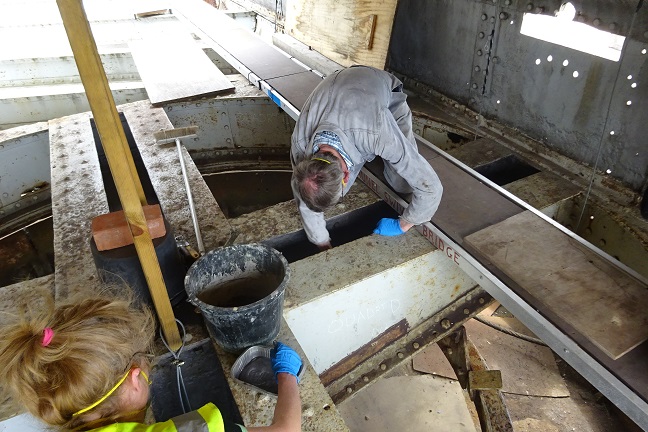

Sal preparing the surface
Brunel Swivel Bridge

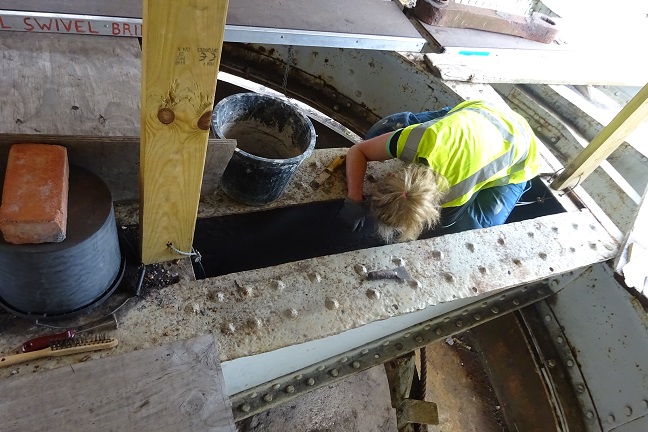

Martin in another section. It pays to be slim with 10' arms
Brunel Swivel Bridge
Masks and gloves at the ready. Sal and Martin paint
Meccano model

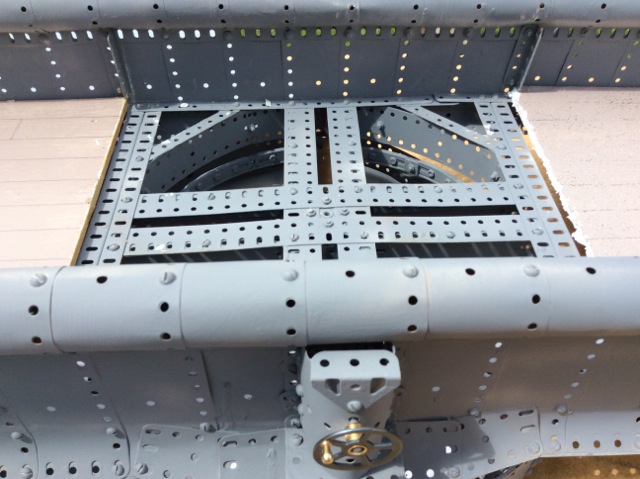

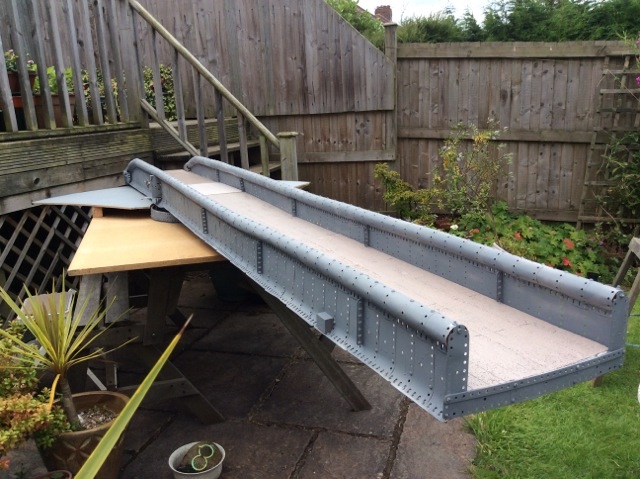

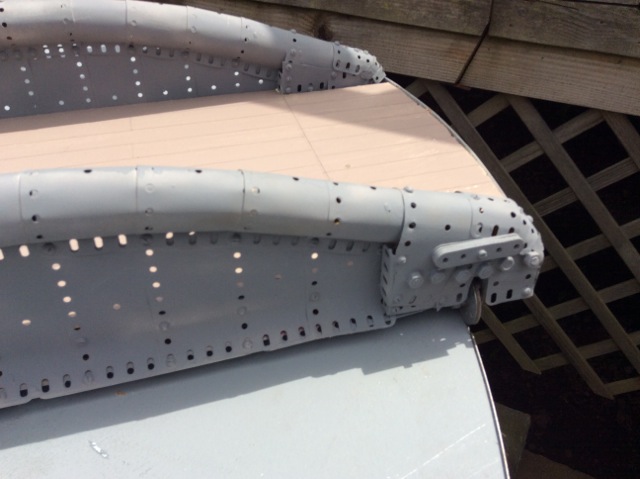

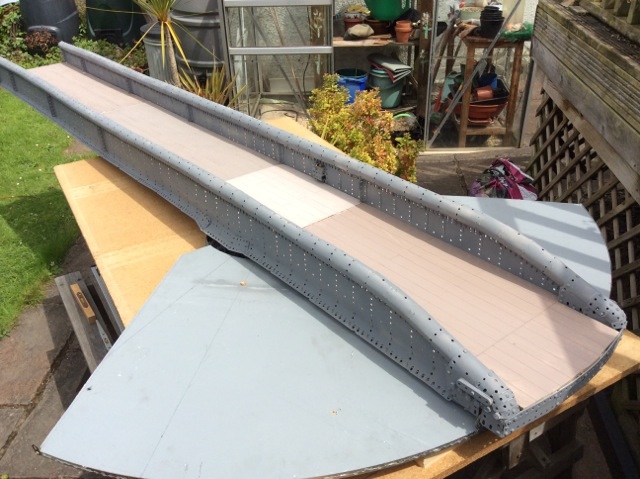

Ian has been making a superb meccano model at home 3m long. It will be on show at the Model Engineers show in August
Brunel Swivel Bridge
Brunel Swivel Bridge
Brunel Swivel Bridge
Brunel Swivel Bridge
