Brunel Swivel Bridge Project Photos May 2018

Page contents

Investigative Work in 2018


Brunel Swivel Bridge

2018 investigative work is on the rotation of the bridge

Details of work

Details of progress in 2013

Details of progress in 2014

Details of progress in 2015

Details of progress in 2016

Details of progress in 2017

Details of progress in 2018

May 2018

Investigating the wheels and bearings. Rotor Wheels photosThis time the South West.
Brunel Swivel Bridge

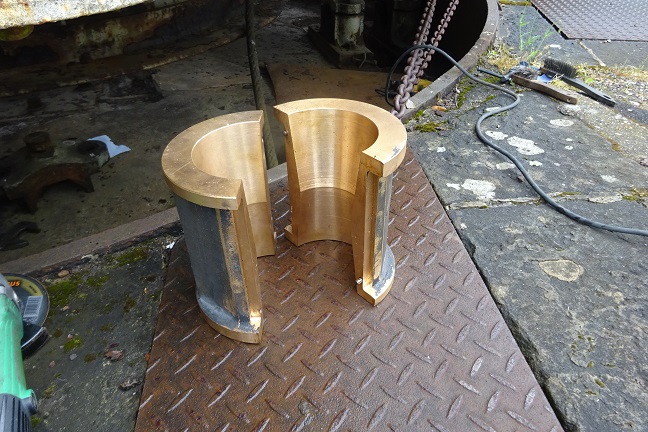

New Bearings
Brunel Swivel Bridge
Charlie using the hoist
Brunel Swivel Bridge

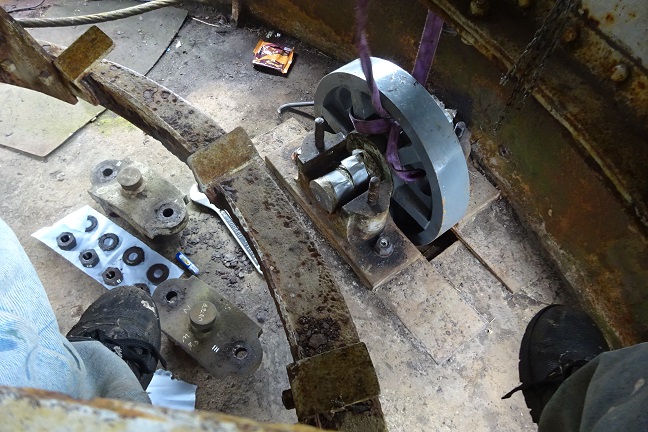

Wheel lifted, and bearing holders off
Brunel Swivel Bridge

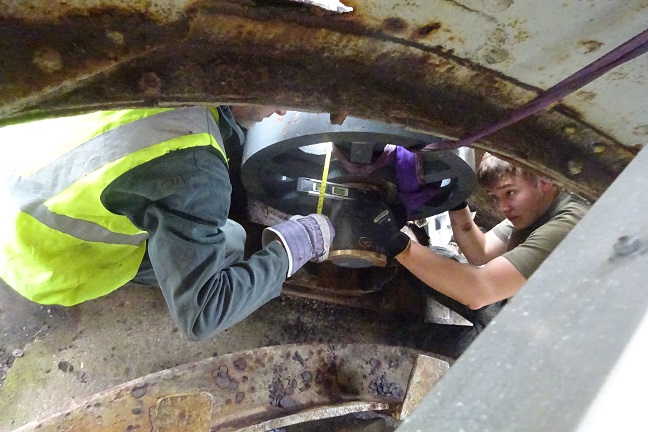

Julian checking the bearings with the wheel and holders, Charlie helping
Brunel Swivel Bridge

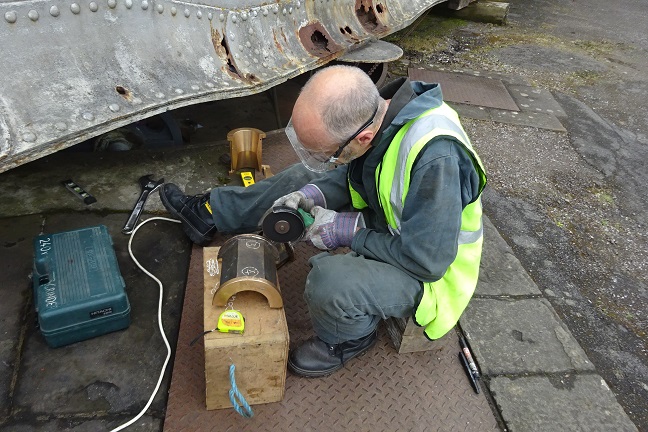

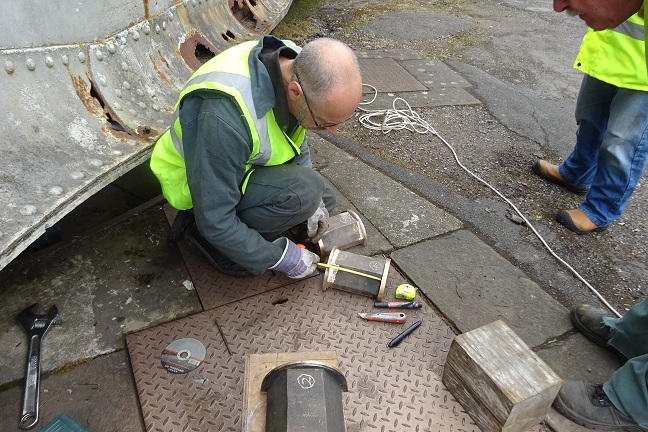

Julian grinding down the bearings to fit the holders
Brunel Swivel Bridge
Checking the fit
Brunel Swivel Bridge

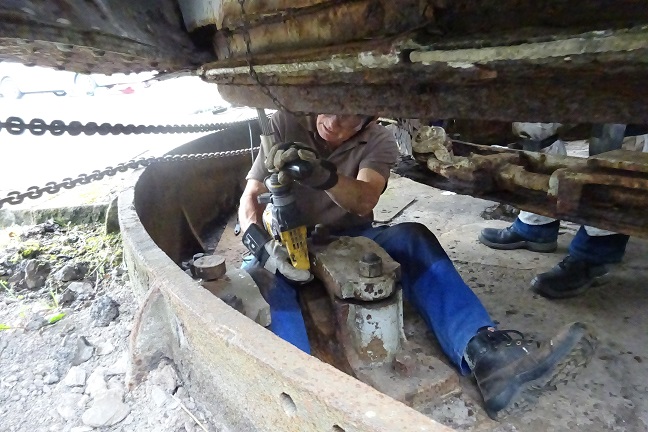

David using the needle gun on the turntable ring
Brunel Swivel Bridge

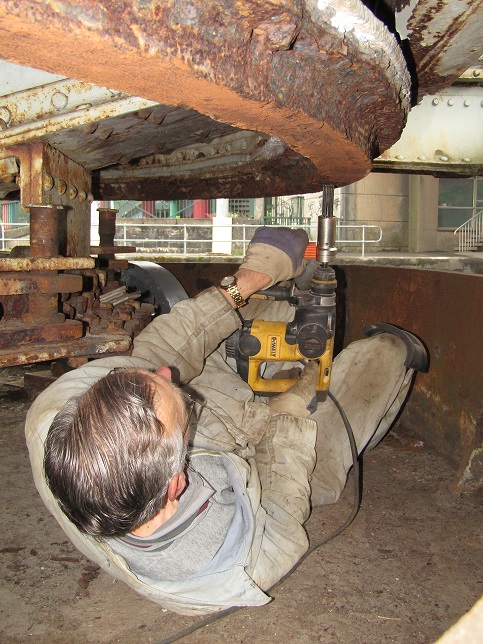

Ian on the gun, muscles bulging
Brunel Swivel Bridge

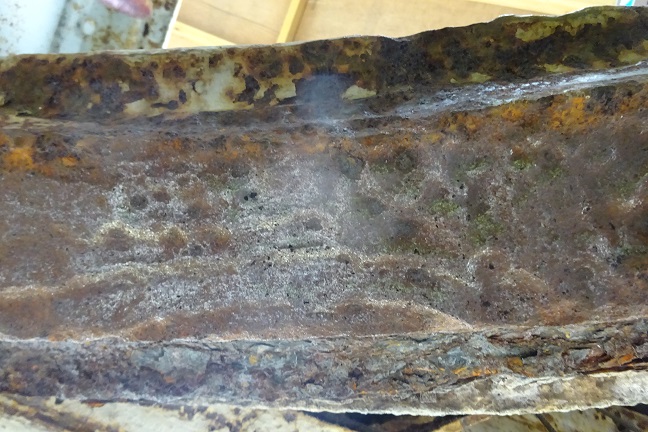

Good surface
Brunel Swivel Bridge

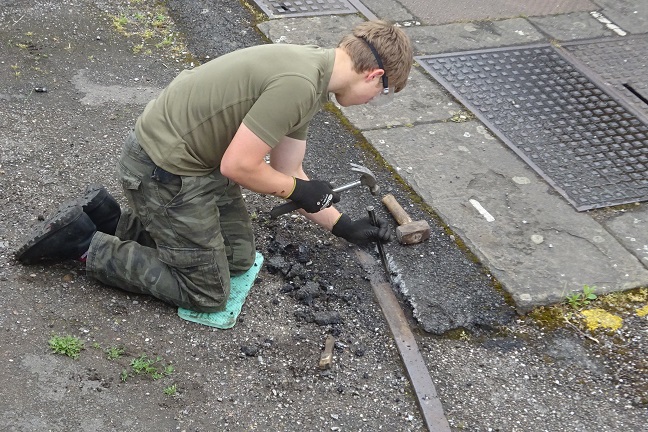

Charlie getting the tarmac off the rail
Brunel Swivel Bridge

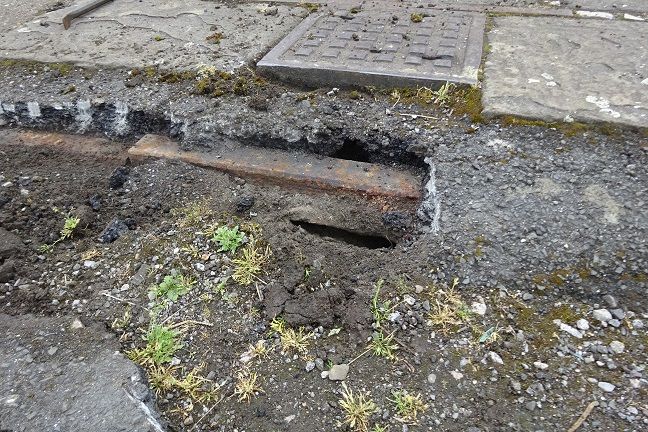

Difference in height of rail at joint!
Brunel Swivel Bridge

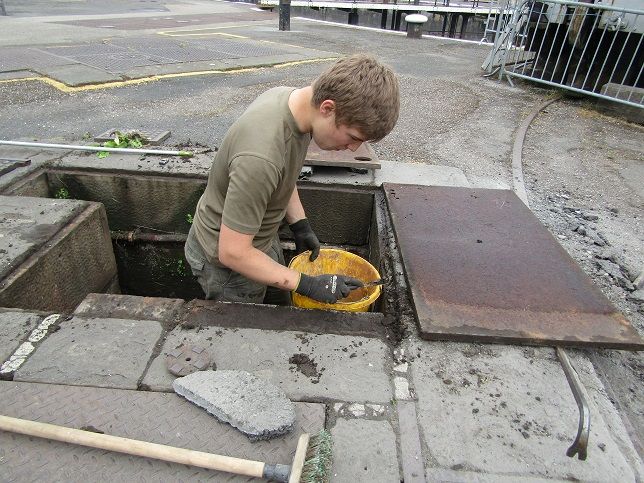

Charlie then turned his attention to cleaning the surface under the plates
Brunel Swivel Bridge

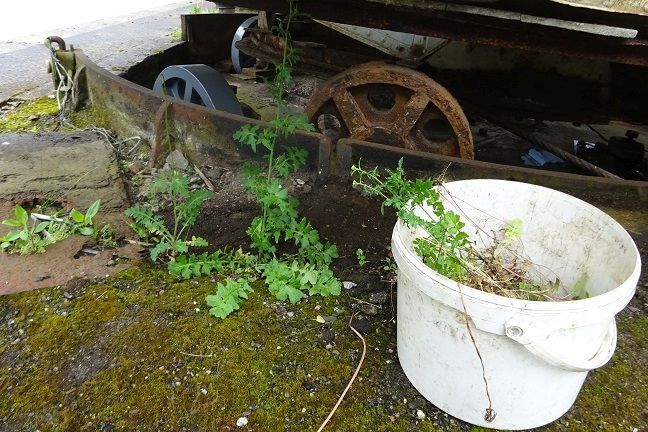

the weeds were harvested (but the poppies left)
Brunel Swivel Bridge
Charlies dad got on with the shed
Brunel Swivel Bridge
And what better than a bottle of Bob ale for lunch!
