Brunel Swivel Bridge Project Photos June 2019

Page contents

Investigative Work in 2019


Brunel Swivel Bridge

2019 investigative work is on the rotation of the bridge

Details of work

Details of progress in 2013

Details of progress in 2014

Details of progress in 2015

Details of progress in 2016

Details of progress in 2017

Details of progress in 2018

Details of progress in 2019

June 2019

Investigating the wheels Rotor Wheels photos

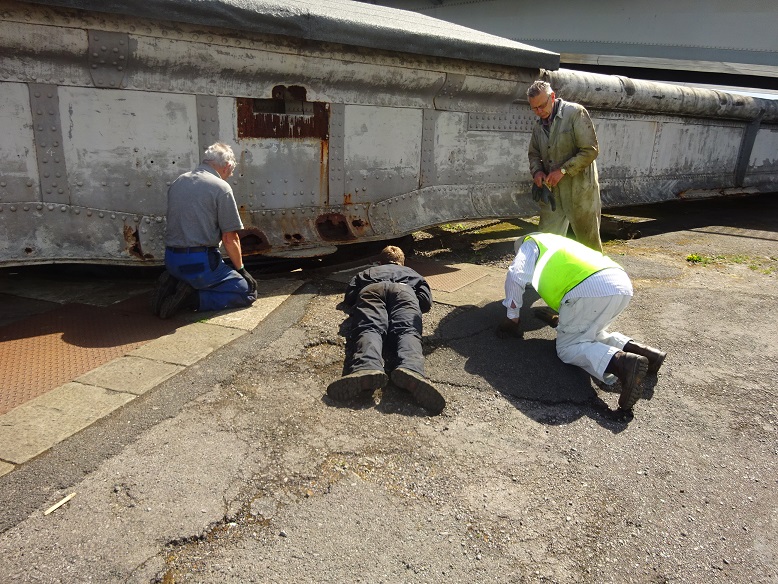

A day of lying down and looking up
Brunel Swivel Bridge

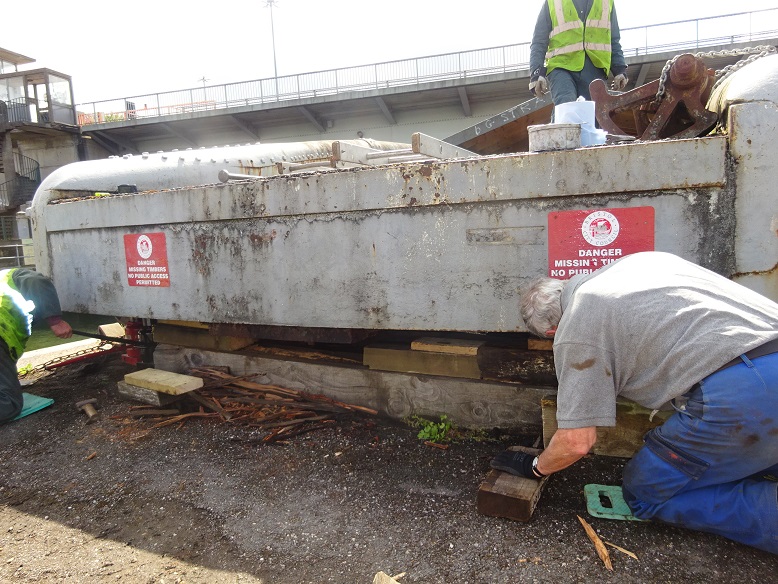

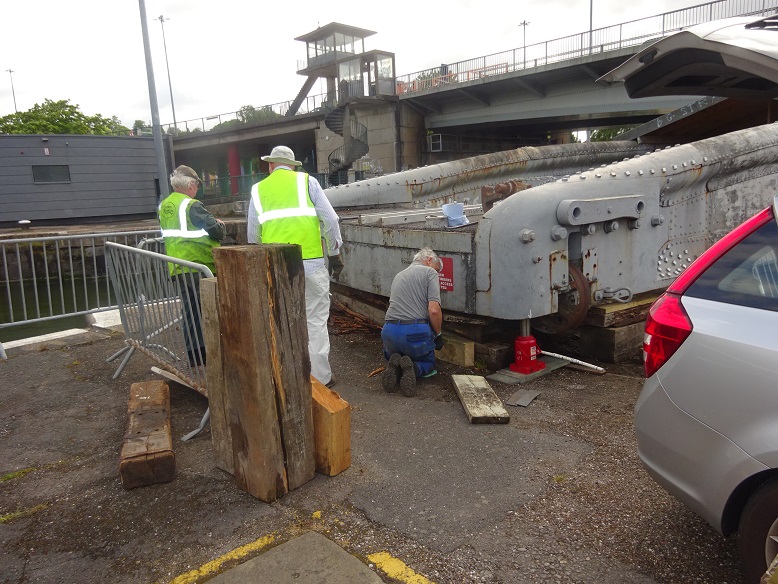

The bridge has already been dropped by 3 inches this morning. Geoff and Bob cogitating
while Ian removes more timber. The kentledge supported by timber and jack
Brunel Swivel Bridge

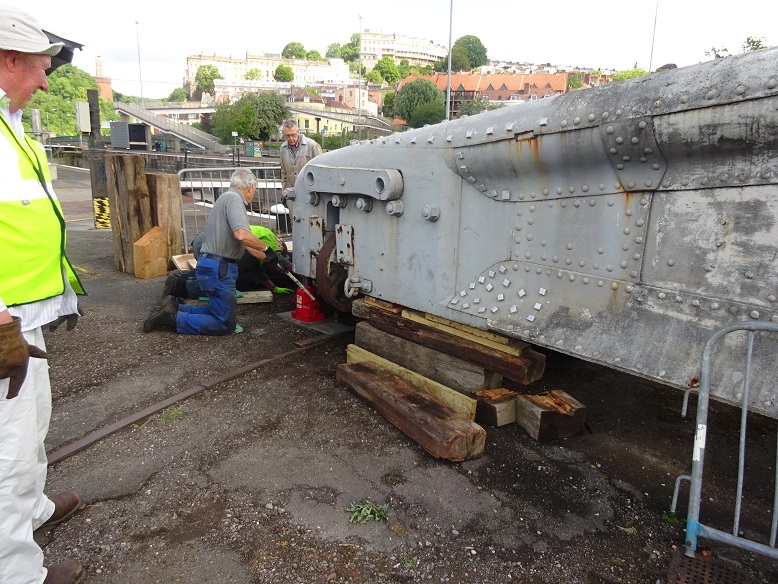

Geoff jacking and Ian shuffling timber
Brunel Swivel Bridge
Ian jacking, Bob looking on
Brunel Swivel Bridge

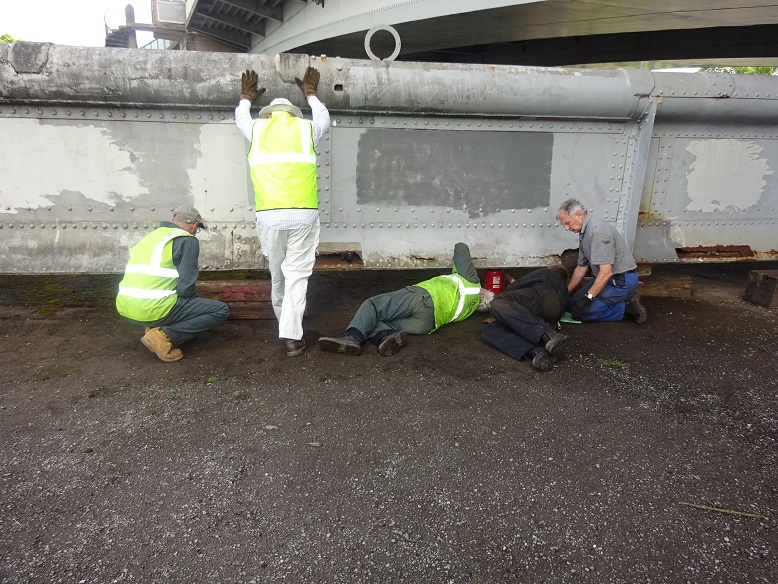

Attention then turned to turntable area
Brunel Swivel Bridge
Testing
Brunel Swivel Bridge

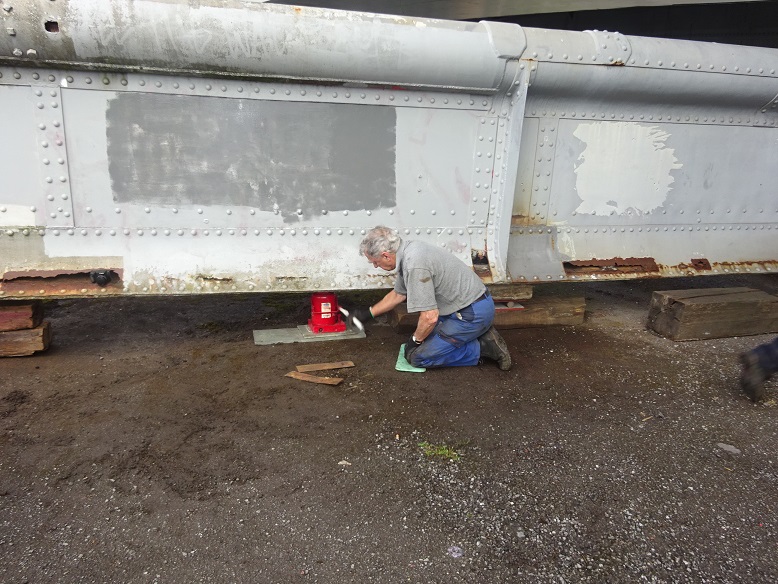

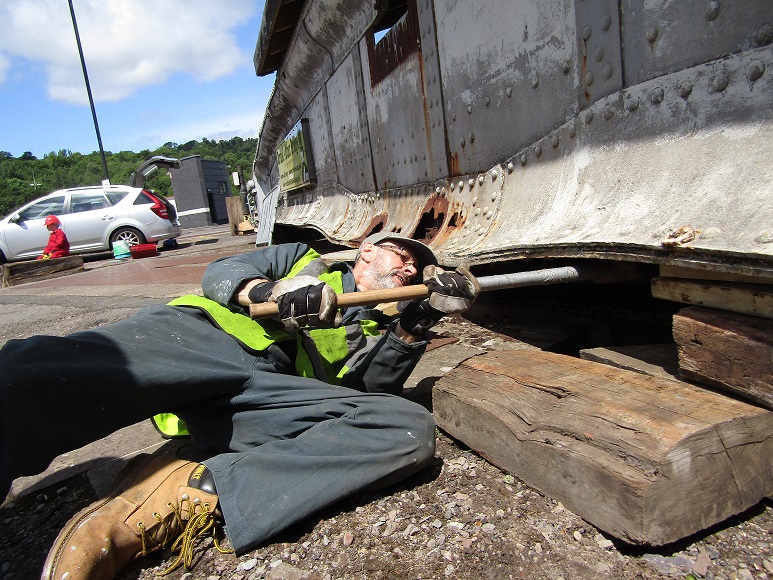

More jacking. Metal plates on the top of jack to protect the jack digging into the bridge, and on the ground
Brunel Swivel Bridge

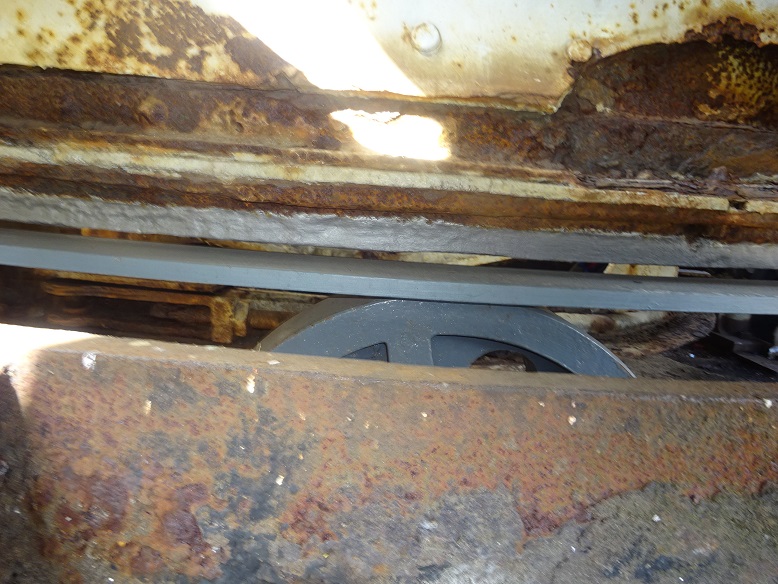

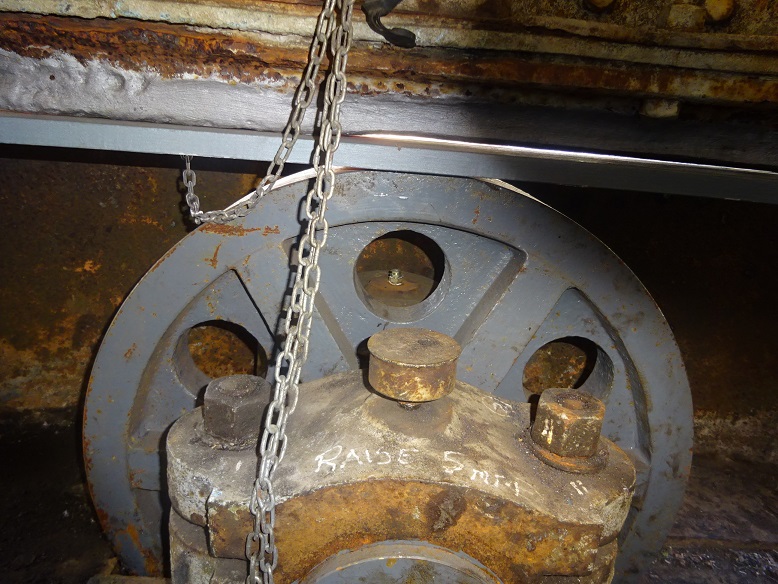

New ring touching wheel, gap between new ring and old ring. Compare with May 2019
Brunel Swivel Bridge
New ring touching wheel, and very little grap between old and new ring
Brunel Swivel Bridge

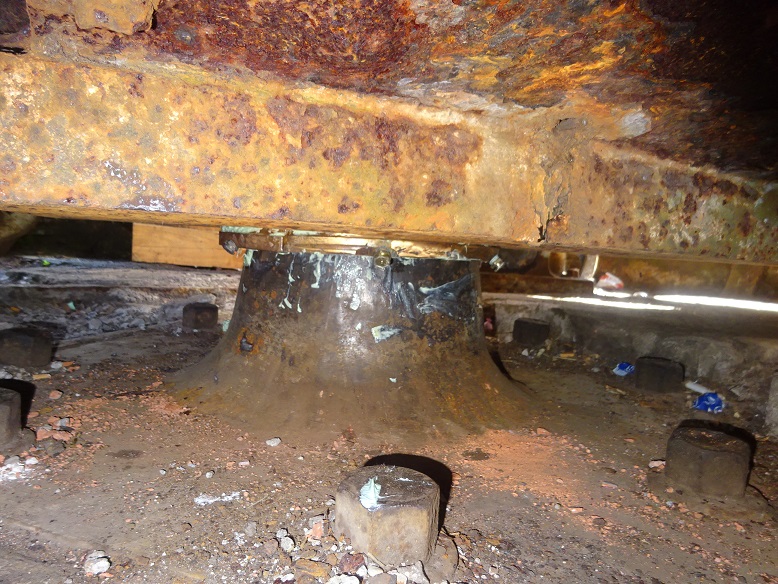

Very little of pintle showing now. Compare with May 2019
Brunel Swivel Bridge
Charlie helping Bailey split wood
Brunel Swivel Bridge

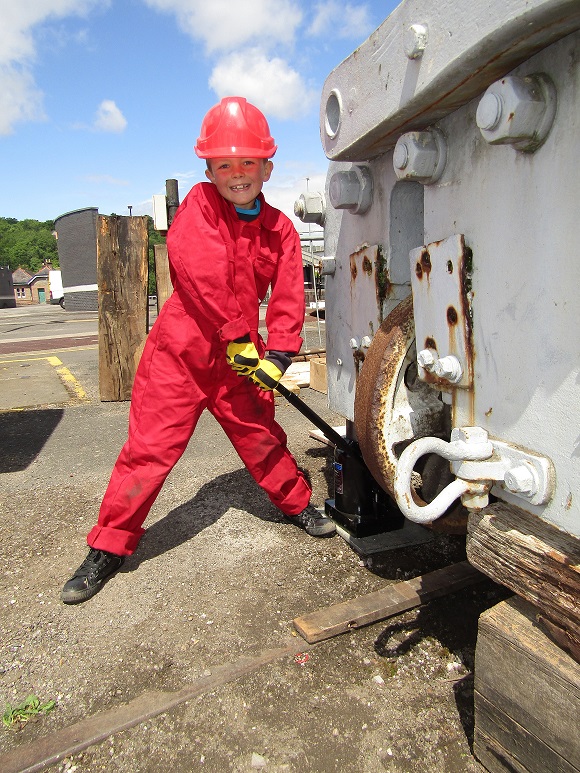

Bailey with a good strong posture
Brunel Swivel Bridge

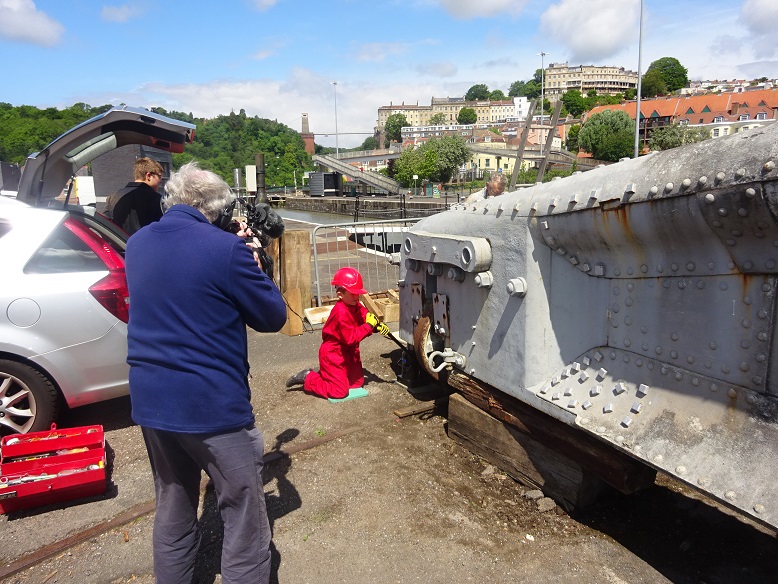

Charlie teaching Bailey how to jack up the bridge, mum looking on
Brunel Swivel Bridge

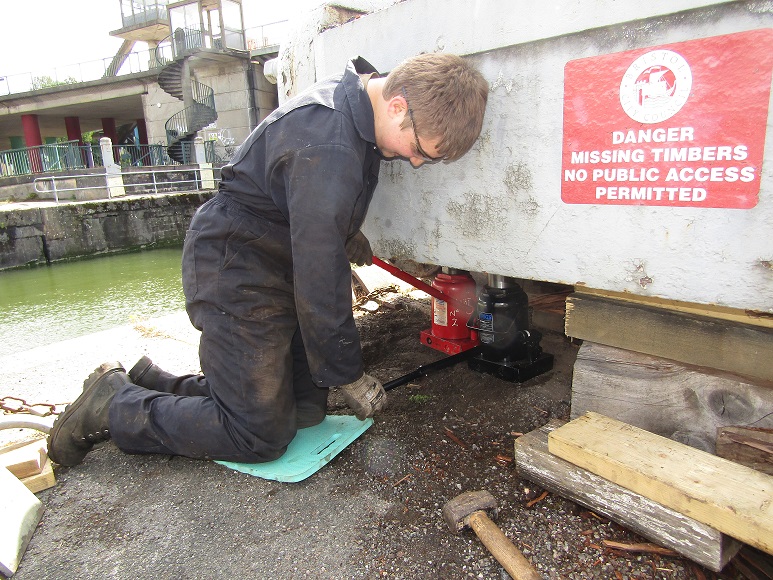

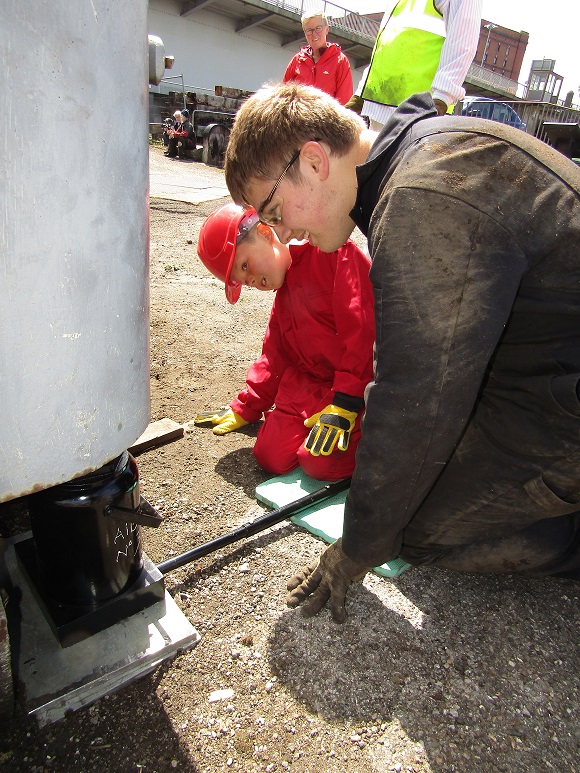

Bailey totally oblivious to the camera when jacking up the bridge
Brunel Swivel Bridge
Charlie showing his prowess by using two jacks
Brunel Swivel Bridge

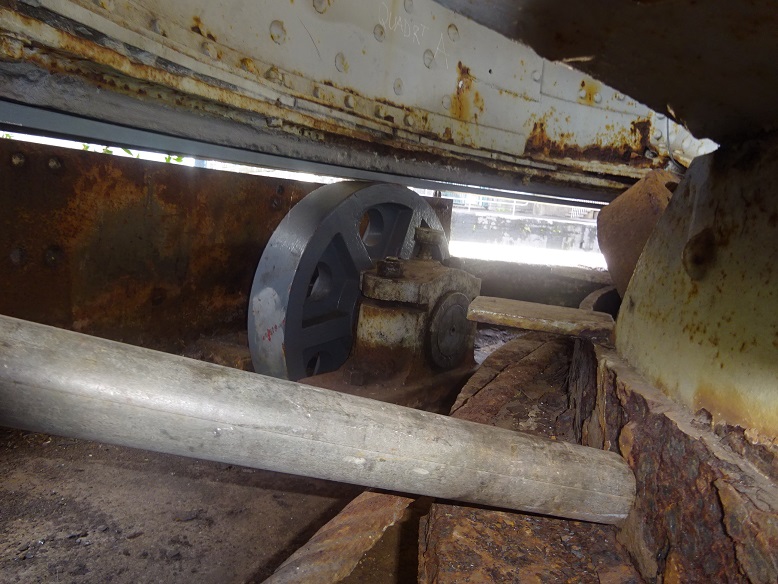

Scaffolding pole comes in very useful for the ring
Brunel Swivel Bridge
Julian testing out the pole
