august 2018

18 August: Investigating the wheels and bearings. Rotor Wheels photosThis time the South East.
Brunel Swivel Bridge

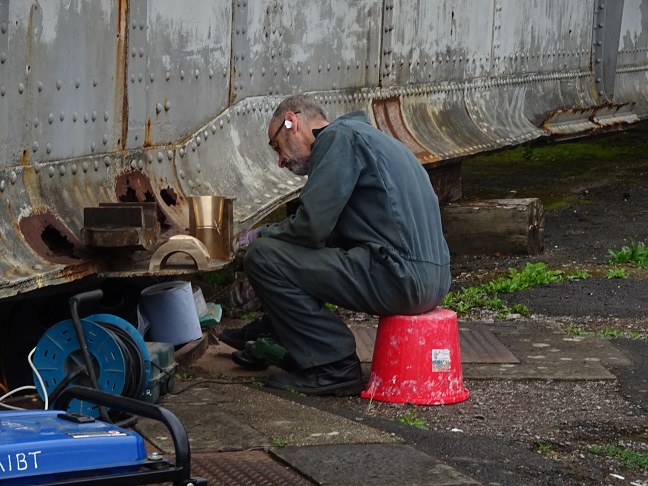

Julian working on the new bronze bearings
Brunel Swivel Bridge

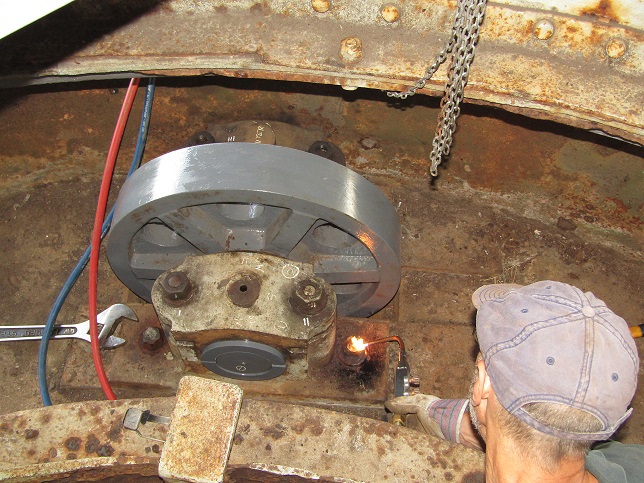

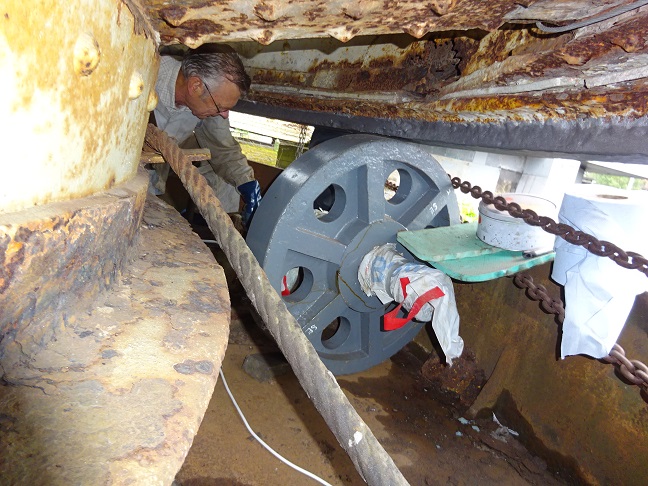

new wheel nearly in position. A very tight fit
Brunel Swivel Bridge

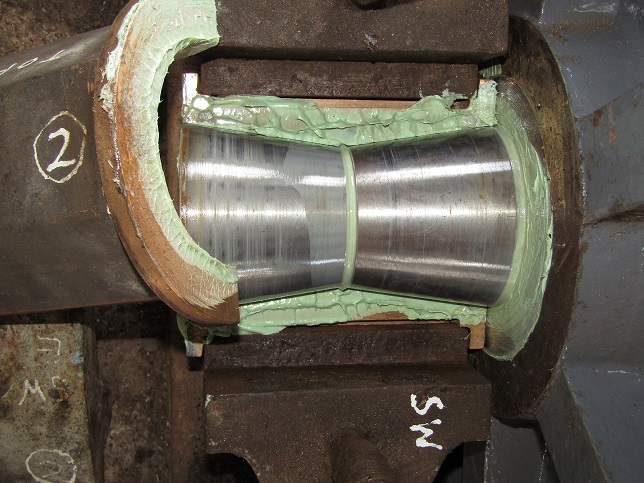

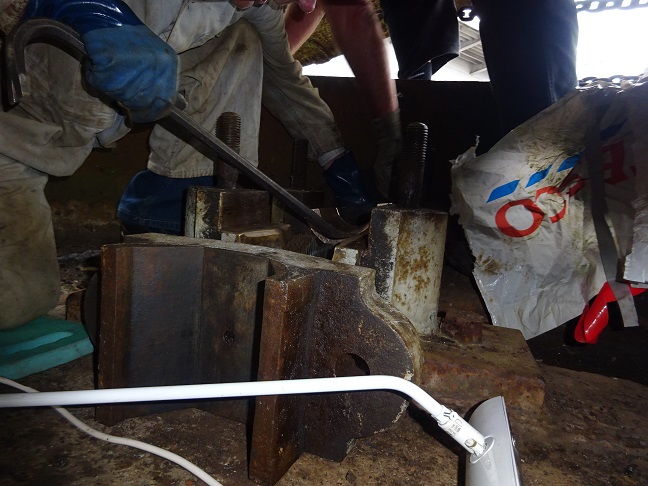

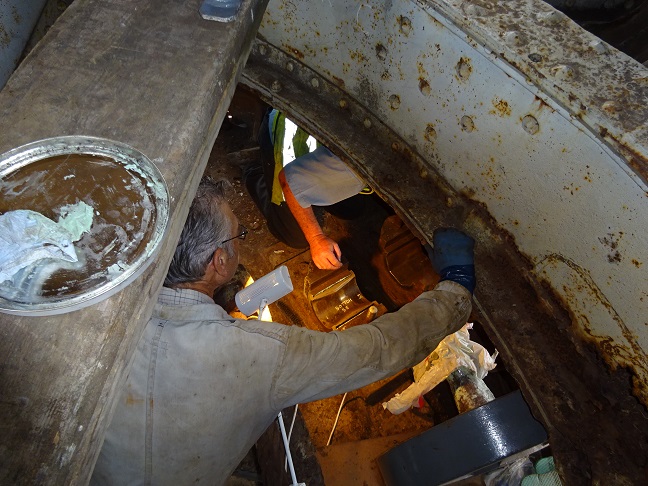

David removing bearing shell
Brunel Swivel Bridge
David and Geoff fitting shell and new bearing
Brunel Swivel Bridge

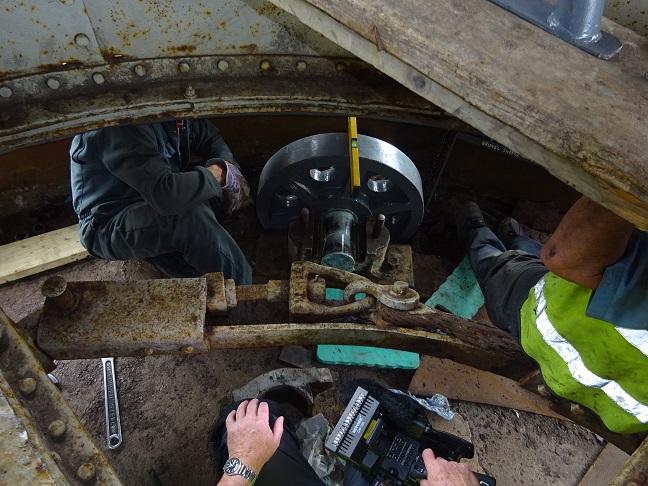

Wheel in place and level, Julian recording
Brunel Swivel Bridge

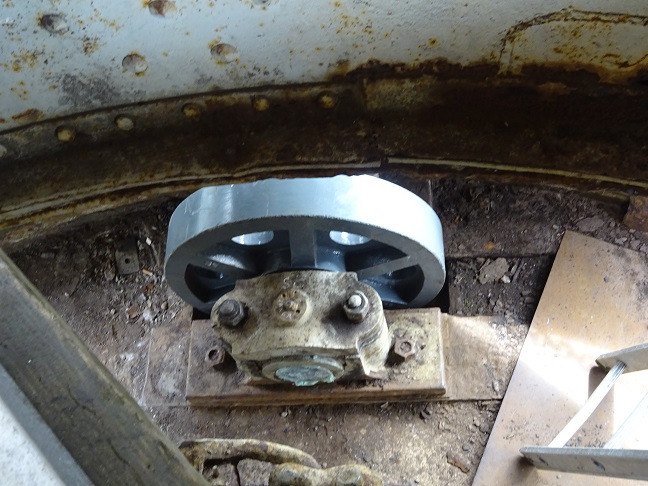

Completion of wheel fitting
Brunel Swivel Bridge

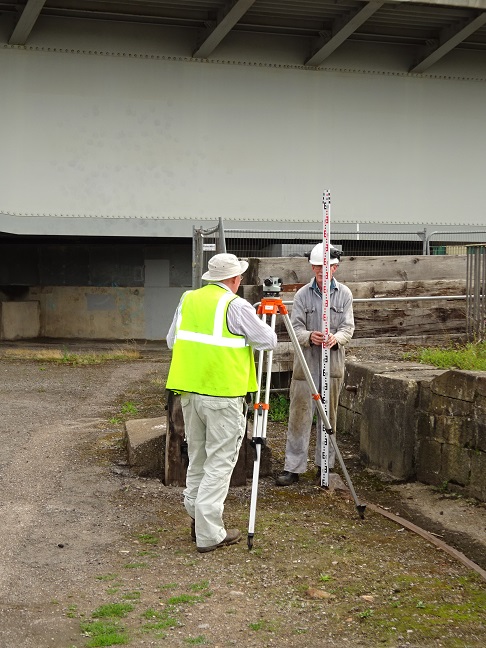

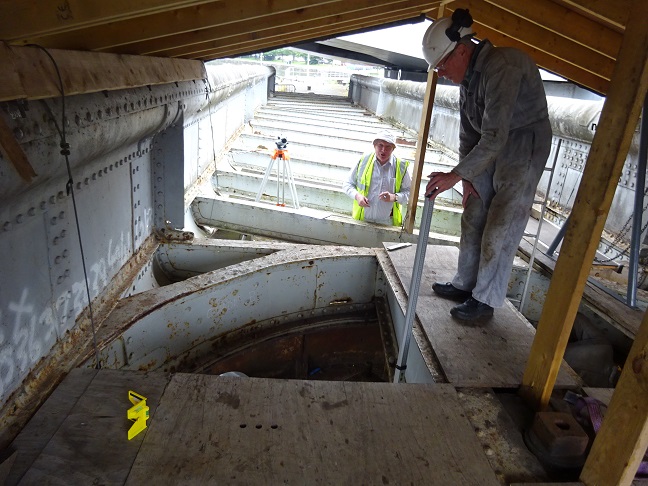

Bob and Martyn surveying the wheels to make sure they are all level
Brunel Swivel Bridge

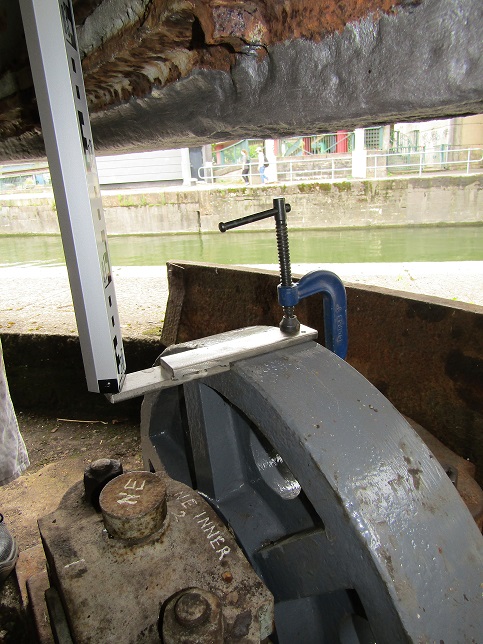

Patent base to help survey stick base to be firm on each wheel
Brunel Swivel Bridge

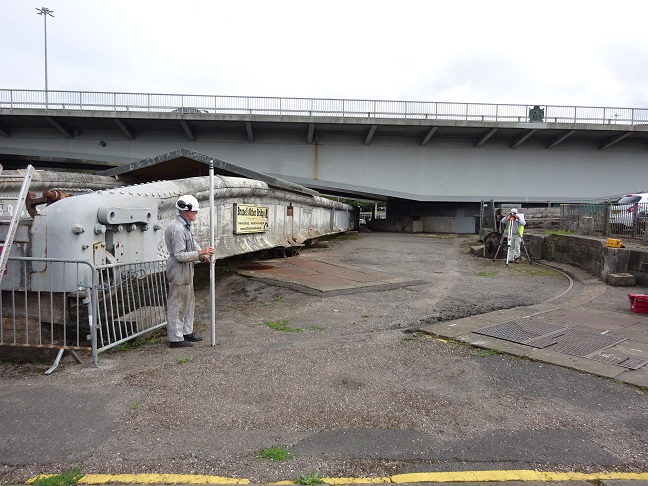

Surveying the rail (at the stop)
Brunel Swivel Bridge

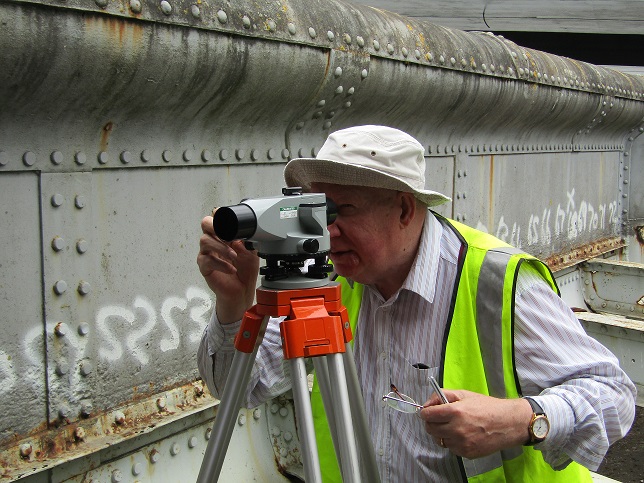

Surveying the rail (at the start)
Brunel Swivel Bridge
Portrait of Bob at work
Brunel Swivel Bridge
Portrait of Martyn at work
Brunel Swivel Bridge

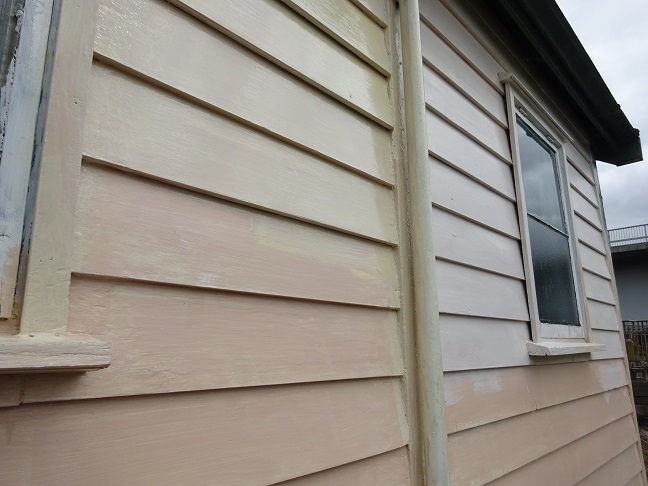

Three different undercoats to resolve, white, pinky beige and deep cream
Brunel Swivel Bridge

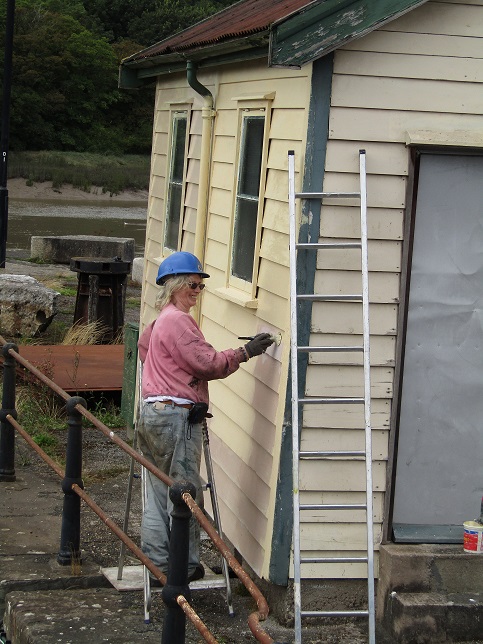

This side of the shed is now deep cream. Maggie pleased to be nearly finished.
Time to tackle the rest another day and get some green paint
Brunel Swivel Bridge

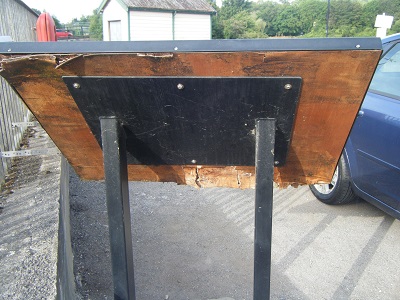

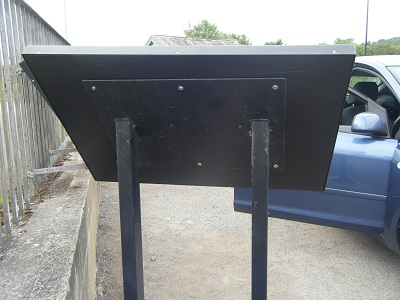

Interpretation panels back went rotten after 3 and a half years
Brunel Swivel Bridge
The manufacturer sent replacement backs
Brunel Swivel Bridge

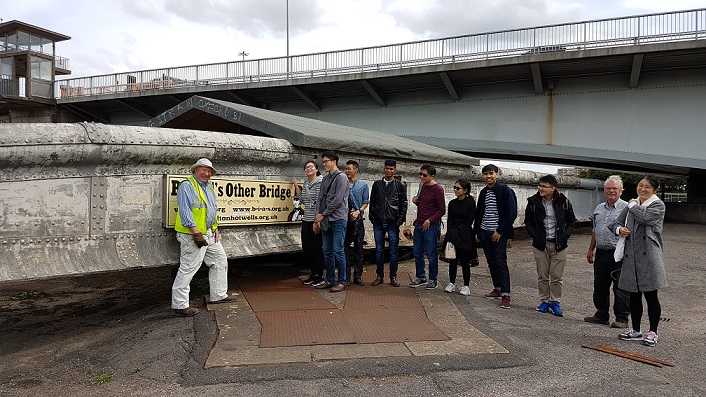

Prof Felix Schmid, PhD, FIMechE, FIRSE, FPWI from the Birmingham Centre for Railway
Research and Education at the University of Birmingham turned up unexpectedly with nine students.

4 August: Investigating the wheels and bearings. This time the South West.

Brunel Swivel Bridge

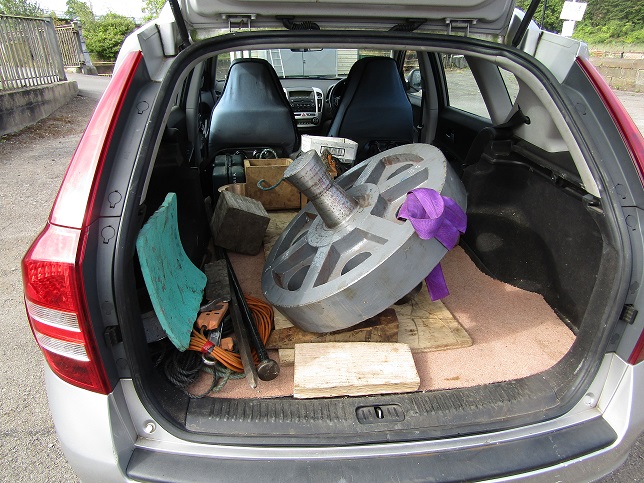

Second new wheel
Brunel Swivel Bridge

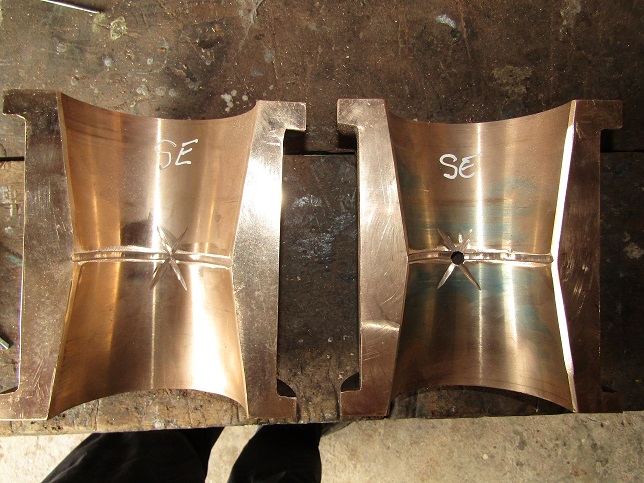

shells with hole for greaser
Brunel Swivel Bridge
Julian removing latest bearing
Brunel Swivel Bridge
Julian has fitted a new shell
Brunel Swivel Bridge

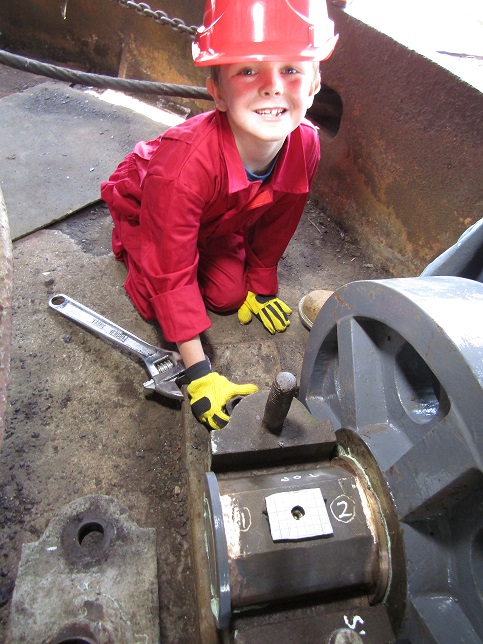

Bailey tightening a nut up
Brunel Swivel Bridge

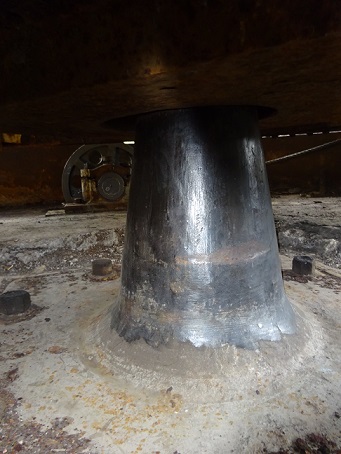

painted pintle
