Brunel Swivel Bridge Project Photos July 2019

Page contents

Investigative Work in 2019


Brunel Swivel Bridge

2019 investigative work is on the rotation of the bridge

Details of work

Details of progress in 2013

Details of progress in 2014

Details of progress in 2015

Details of progress in 2016

Details of progress in 2017

Details of progress in 2018

Details of progress in 2019

July 2019

Investigating the wheels Rotor Wheels photos
A day of applying Denso tape and paste to the faying surfaces of the old and new turntable rings, and the 3mm packings that lay between them.
Faying surfaces are the contacting surfaces or faces of two similar or dissimilar materials placed in tight contact to form a joint. They are mating surfaces that contain a sealant in between them during any assembly process so that there is no gap or crevice left between them.
They are used in engineering fastening and joint development of different members to form a strong structure. To prevent corrosion between the two surfaces, primers or sealing agents are used to provide an air- or moisture-tight joint. In this case we attaching a corroded wrought iron surface to a new steel ring using aluminium packers.
Brunel Swivel Bridge

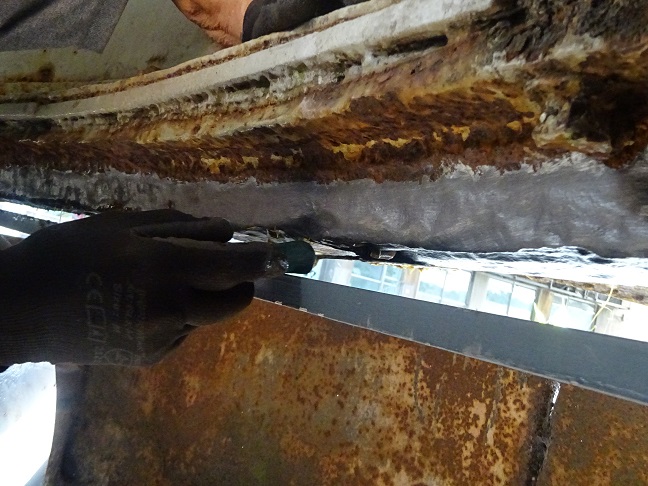

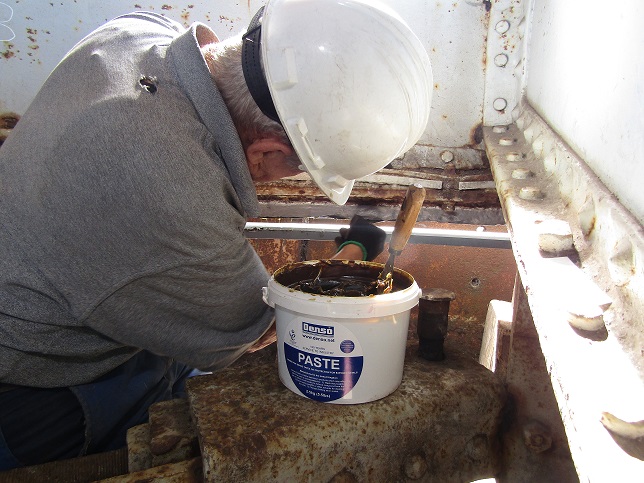

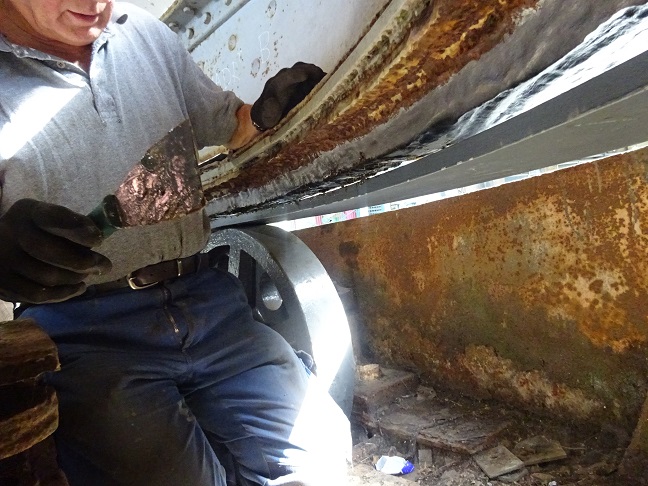

Ian attaching Enso paste to the corroded surface
Brunel Swivel Bridge

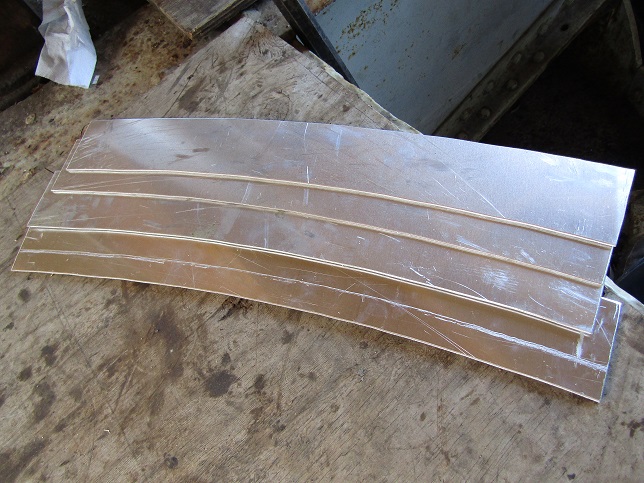

Aluminium packers
Brunel Swivel Bridge
David applying Enso tape to a packing strip
Brunel Swivel Bridge
Ian making sure that the whole surface is covered in paste.
Note that the turntable is virtually sitting on its wheels again
Brunel Swivel Bridge

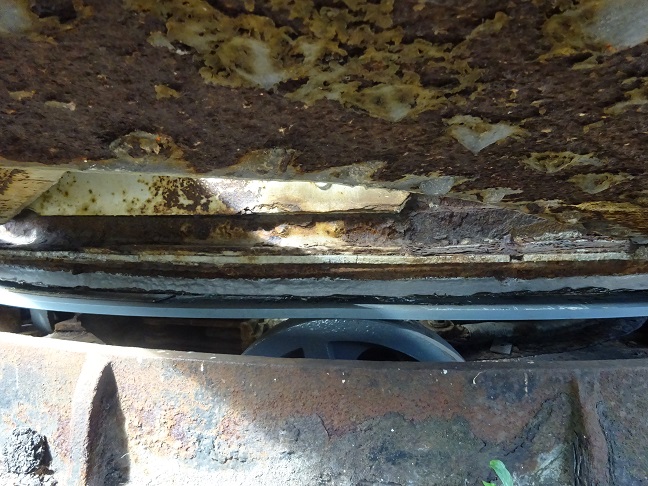

It is quite difficult to apply the paste in a confined area. Note the corrosion, and protective paint.
Brunel Swivel Bridge
Note the jack in the background. The new ring sags at the moment enabling the paste to be applied.
Compare the height with May and June 2019
Brunel Swivel Bridge
Confined space
Brunel Swivel Bridge

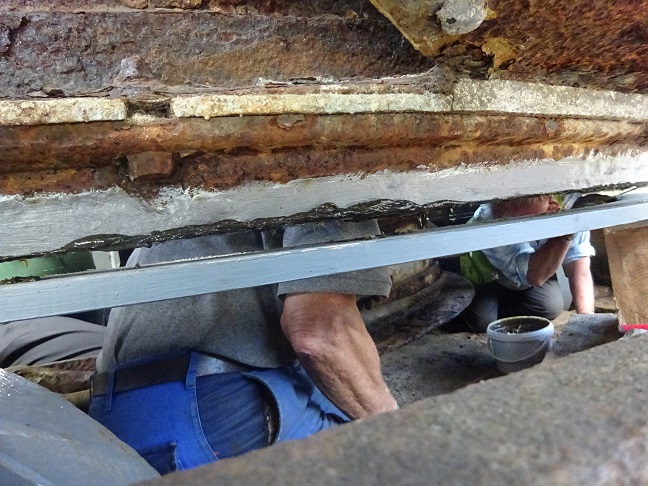

Packing strip not inserted yet. Ian and Geoff working together
Brunel Swivel Bridge

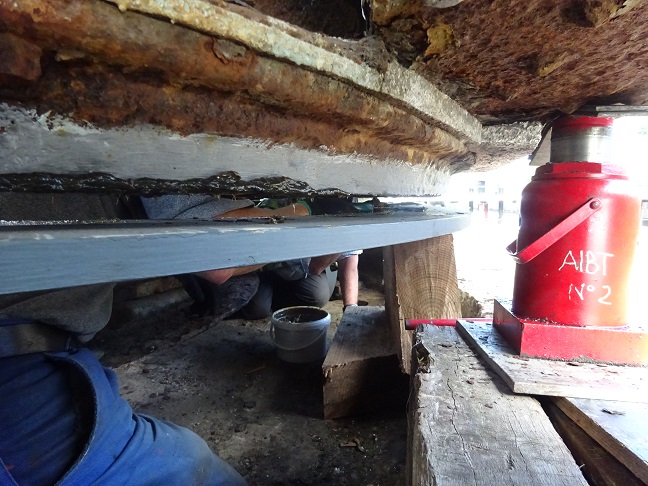

View of the jack lifting the bridge enough to apply the paste.

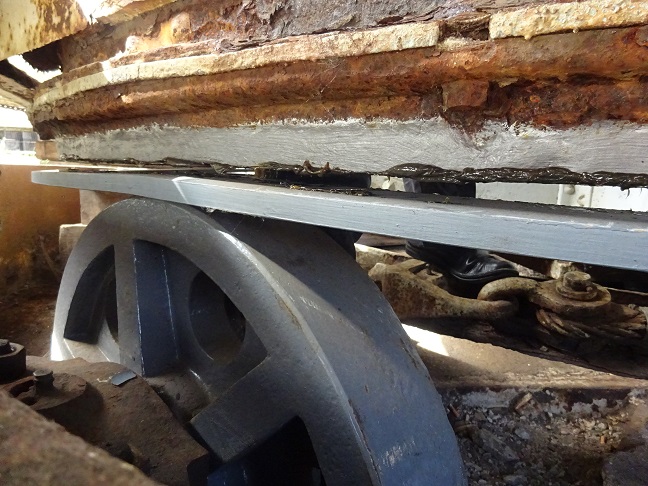

The ring sits on the wheel
Brunel Swivel Bridge

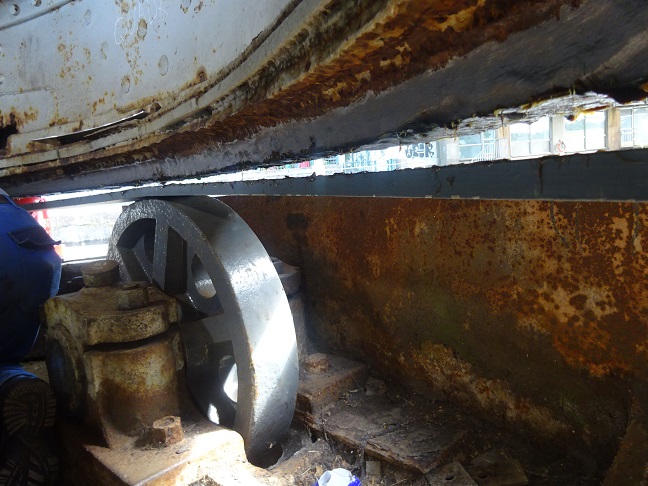

An outside view of a wheel
Brunel Swivel Bridge

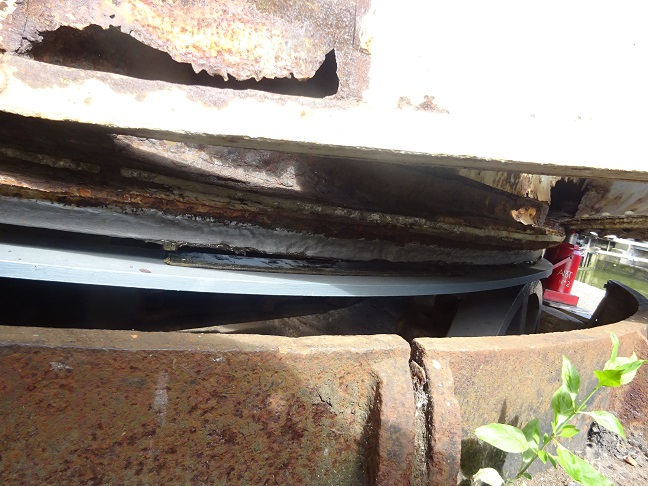

Packing strip inserted to the left
Brunel Swivel Bridge
Another view of the strip
Brunel Swivel Bridge
Close up of tape
Brunel Swivel Bridge

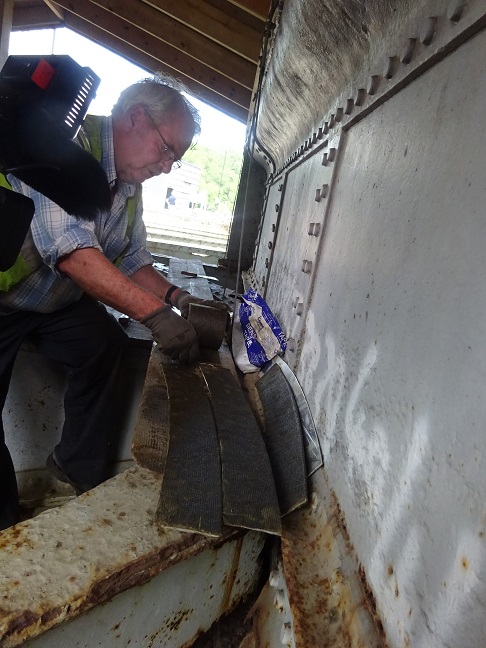

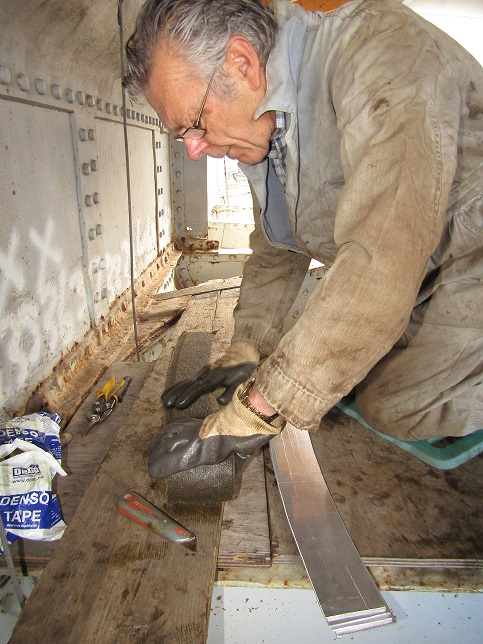

Geoff applying more tape to packing strip. Julian videoing
Brunel Swivel Bridge

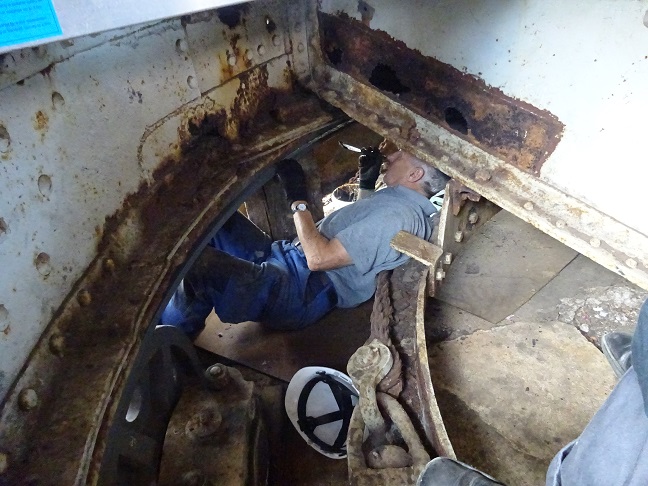

Ian still applying paste, lying on a hammock of wire rope
Brunel Swivel Bridge

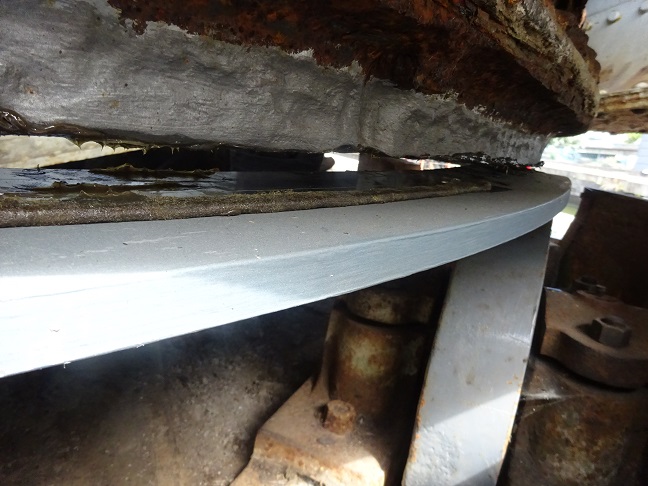

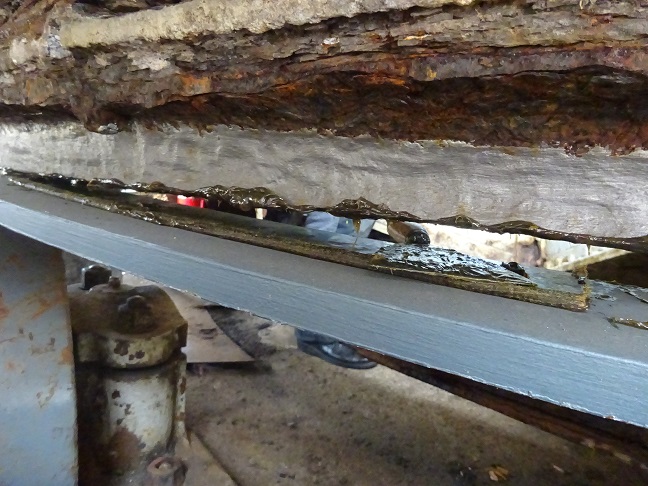

Paste on top of packing strip
Brunel Swivel Bridge

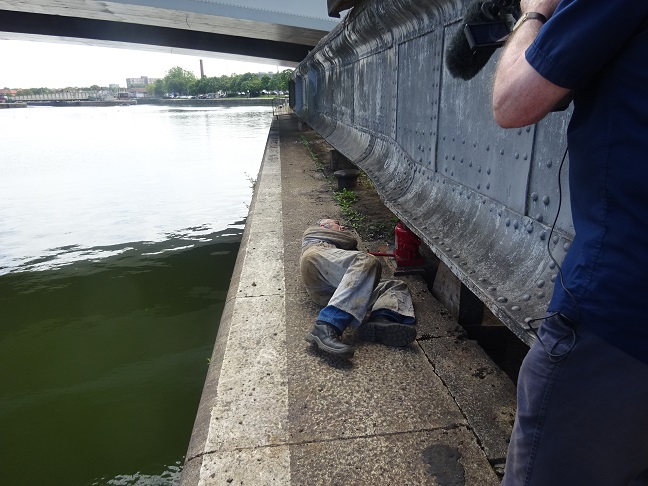

David getting the height right jacking on outside edge. Close to the water
Brunel Swivel Bridge

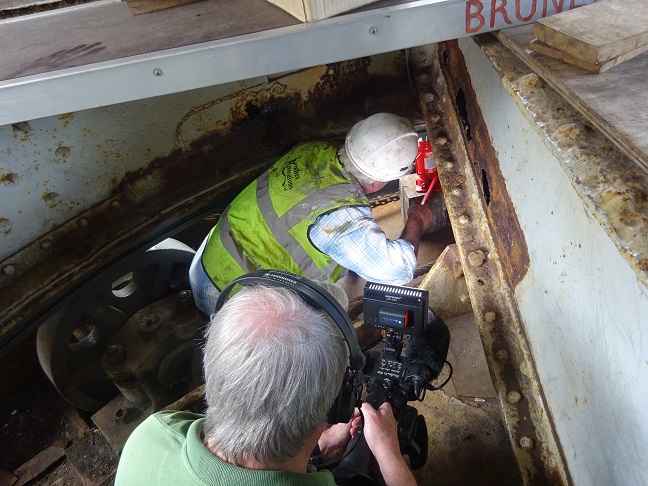

Geoff jacking on inside edge. Julian videoing
Brunel Swivel Bridge

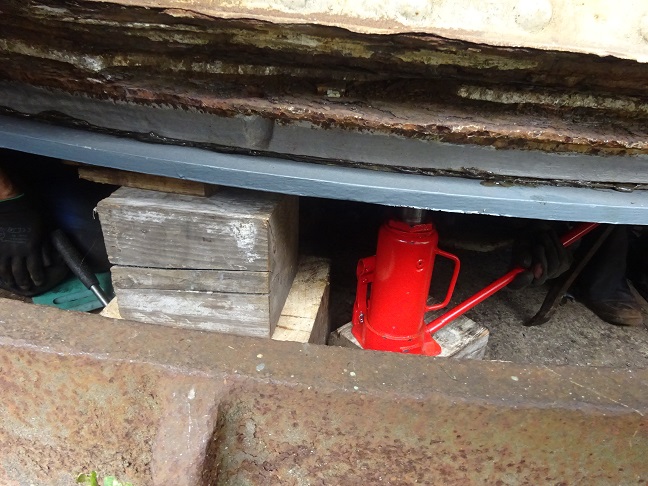

View of the jack and wedge. Different sizes of wedges to lower the bridge
Brunel Swivel Bridge
Jack taken away and turntable old and new ring glued together
Brunel Swivel Bridge

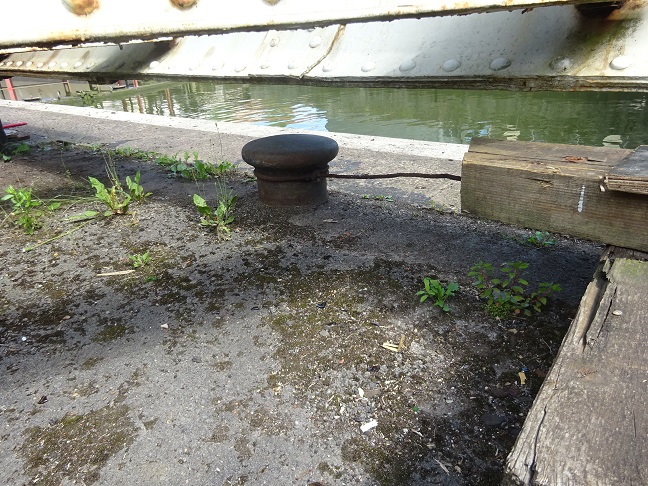

Used a bollard for dockside restraining chain. Chain no longer needed now bridge lowered onto its wheels
Brunel Swivel Bridge

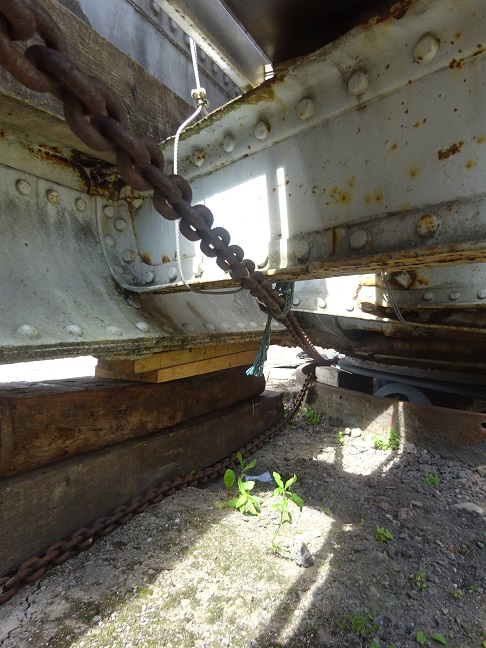

Used a girder for other restraining chain, which was rather long and heavy

13 July

Brunel Swivel Bridge

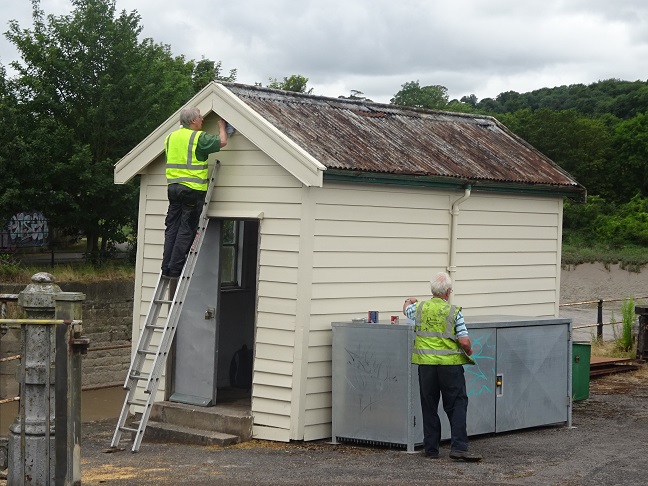

Hut painting being finished by Geoff and Julian, this time using green. Makes a change from filming
Brunel Swivel Bridge
Hut door painted
Brunel Swivel Bridge
Building id being painted by Julian. Looks good
Brunel Swivel Bridge

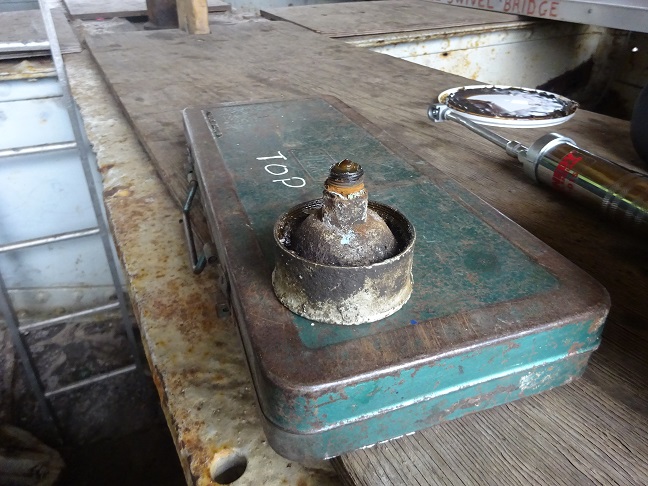

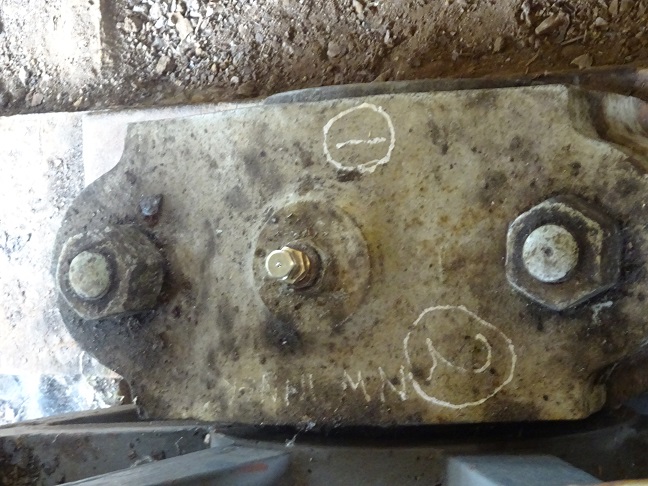

Greaser from wheel bearing to be replaced, which relies on being turned to get the grease in
Brunel Swivel Bridge
Smaller bearing which one can now get a grease gun on
Brunel Swivel Bridge

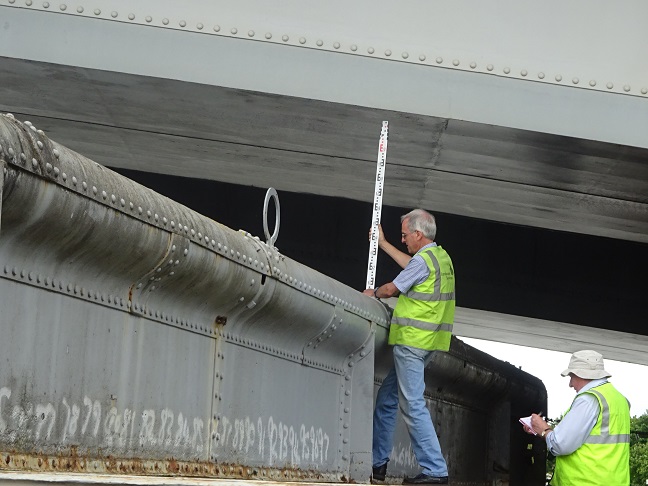

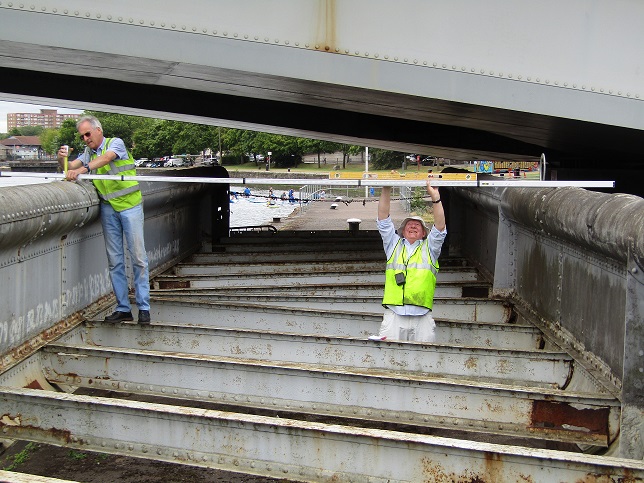

New volunteer William helping Bob do more surveying now that the bridge is nearly on its wheels
Brunel Swivel Bridge

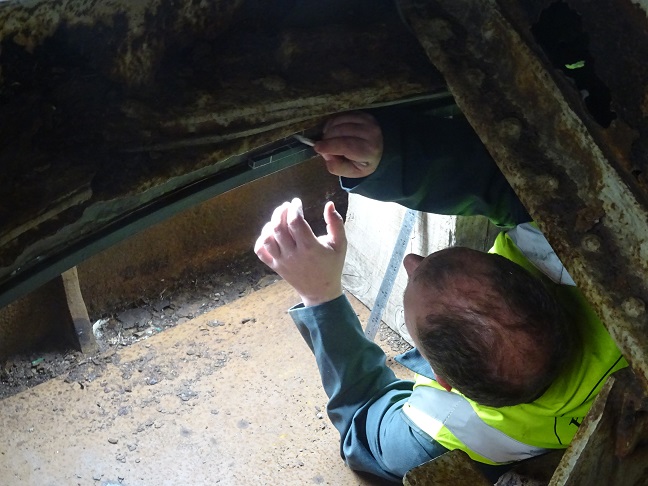

Bit of a stretch for Bob. Bit difficult to see the level too
Brunel Swivel Bridge
Geoff took a close up of David Greenfield taking a photo
Brunel Swivel Bridge
Unbeknown to the other photographers, Maggie took a picture of Geoff taking a picture of Bob and David
Brunel Swivel Bridge

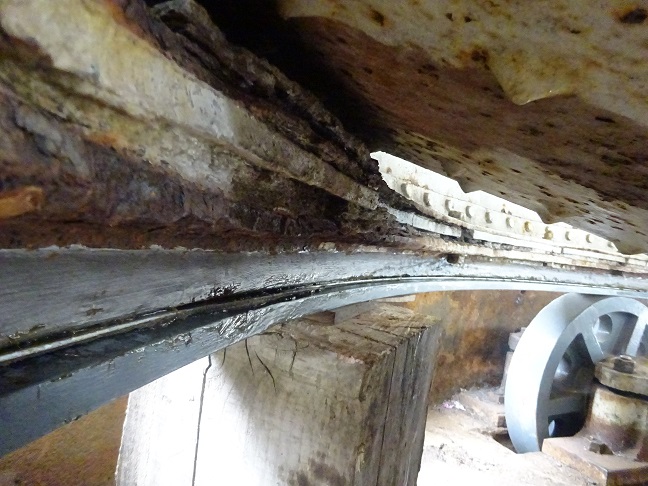

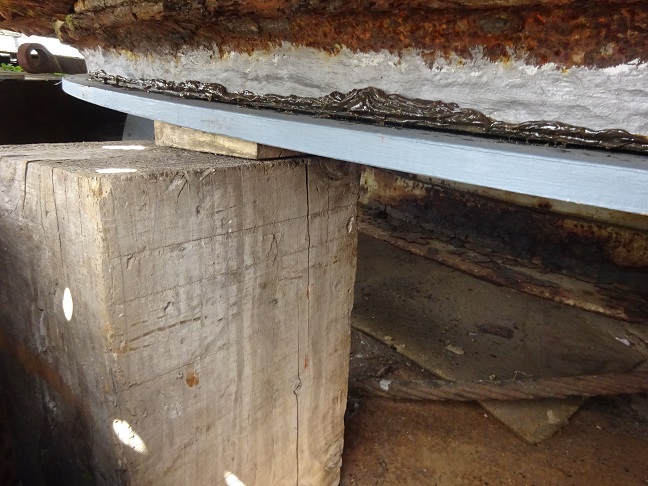

Ring sagging so had to be blocked up before getting welded. Shows inspection important
while removing excess grease, and sweeping up needed to make life more comfortable
Brunel Swivel Bridge
Dorothea Restoration men came to check the ring before welding
Brunel Swivel Bridge

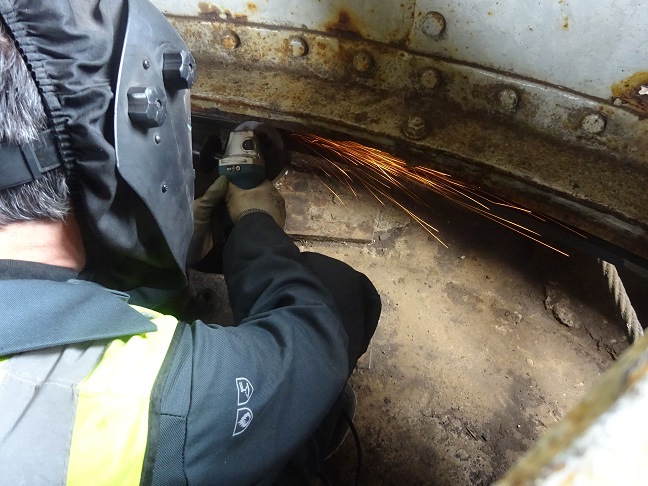

Alian man from Dorothea grinding before welding
