Brunel Swivel Bridge

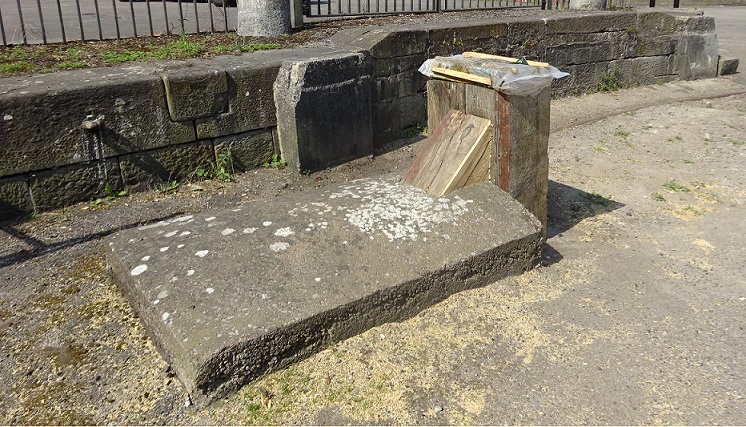

Nearly finished in July. Just needed to round to top and put the new cover on
Brunel Swivel Bridge

Investigative Work in 2016


Fifth volunteer day of the year spent cleaning the most worn wheel bearing, continuing with renewal of timber stops, and weeding. Also started doing an informal usage flow, people come from all directions.

Cloudy weather but didnt quite rain on us. We also went to see Ian with his wonderful 9' model of the bridge up at the Model Engineers Show in Thornbury

Details of work

Details of progress in 2013

Details of progress in 2014

Details of progress in 2015

Details of progress in 2016

August 2016

Ian Kerr's model
Brunel Swivel Bridge

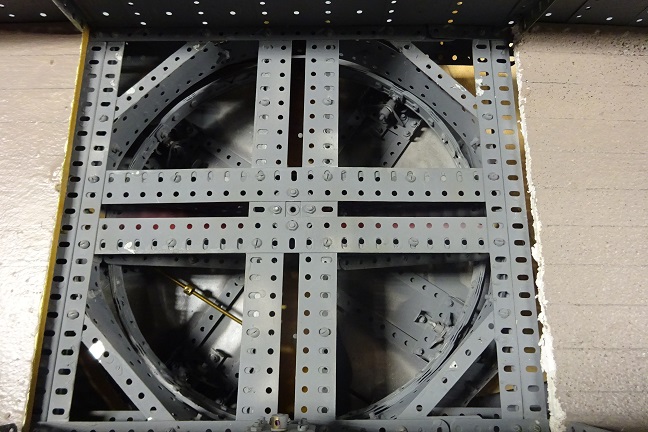

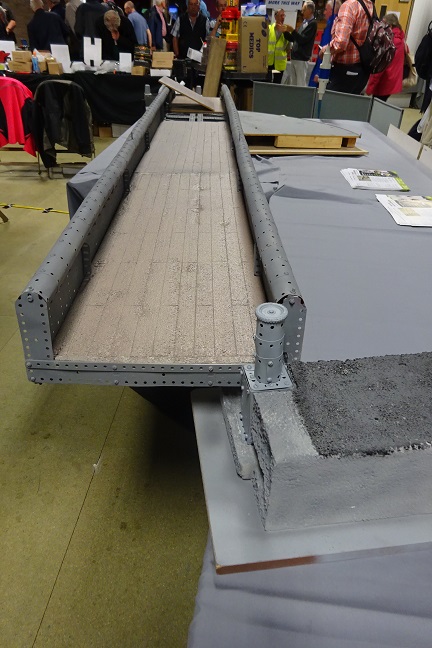

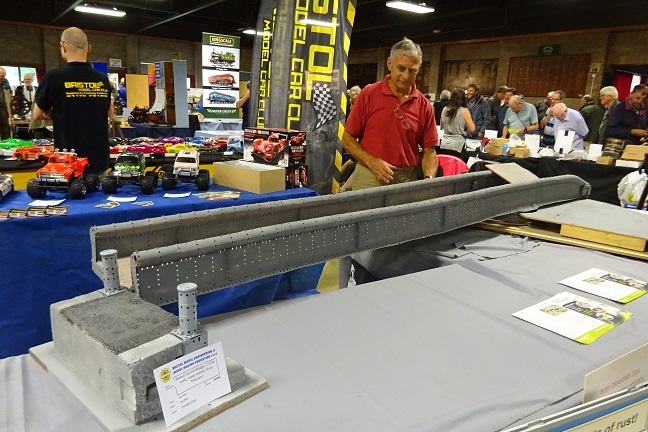

A proud Ian with his wonderful 9' model that took him 2 years to build out of mecanno
Brunel Swivel Bridge

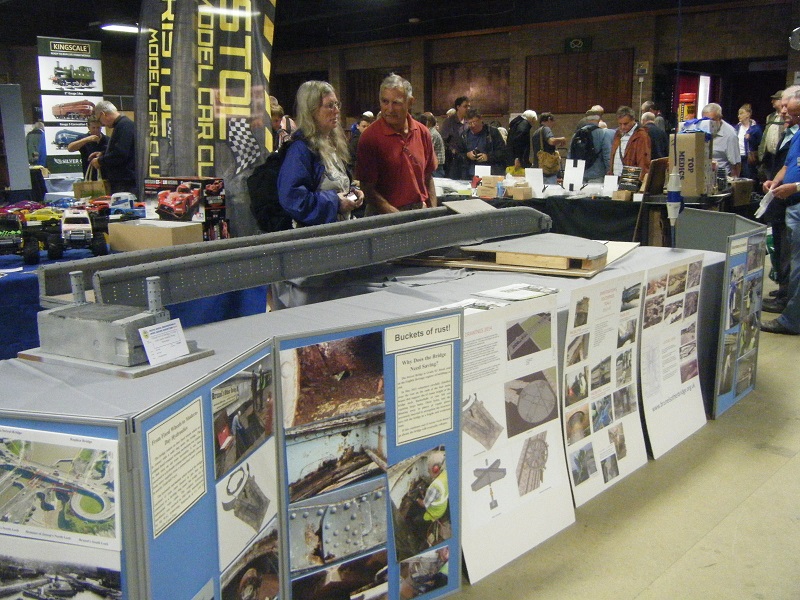

Ian talking to Maggie. It was a good opportunity to tell more people about the project
Brunel Swivel Bridge
the bridge swinging open
Brunel Swivel Bridge
the handle actually works
Brunel Swivel Bridge

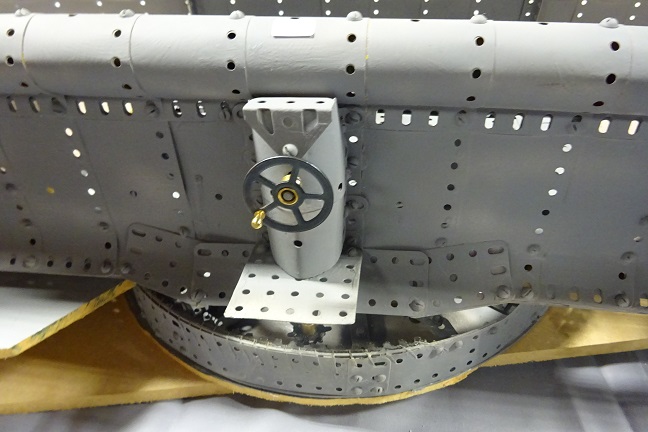

the turntable
Weeding and cleaning
Quite handy being under the bridge as one can take photos unobserved!
Brunel Swivel Bridge

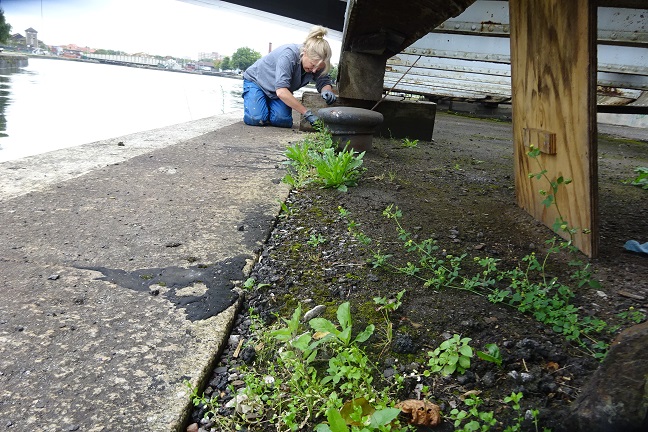

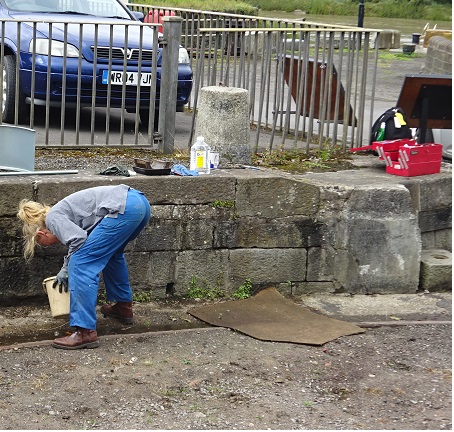

Sal and Maggie got on with the weeding and cleaning out the wheelpit area again
Brunel Swivel Bridge
Brunel Swivel Bridge

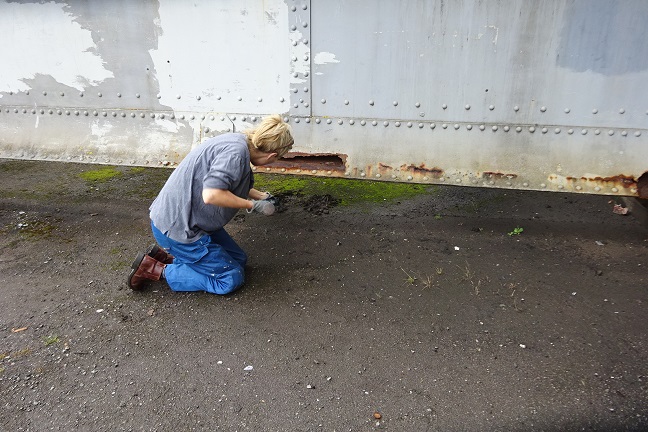

lots of moss growing in the mud which was removed by using a tamper
Brunel Swivel Bridge
the area round the rail received attention too
Brunel Swivel Bridge

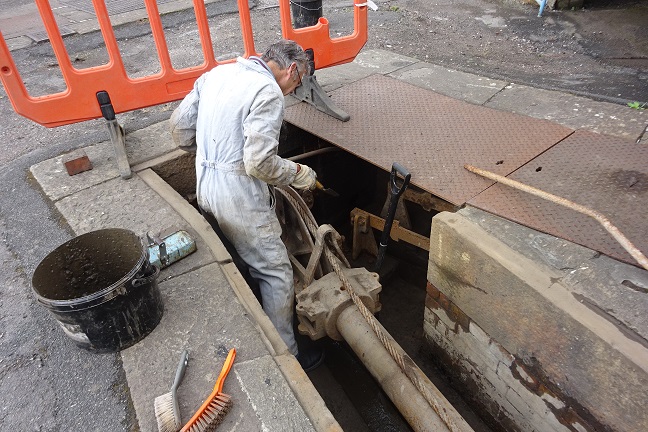

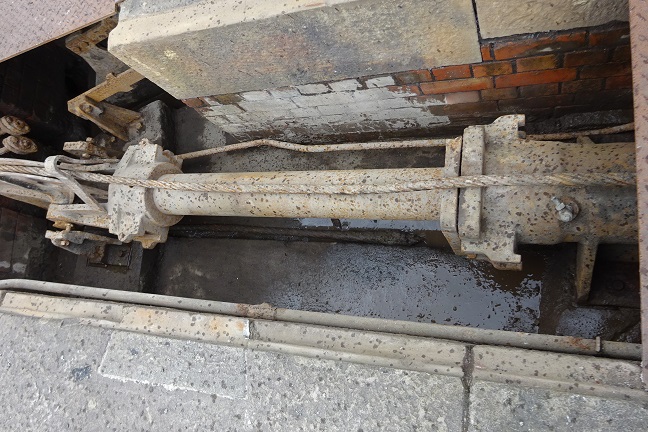

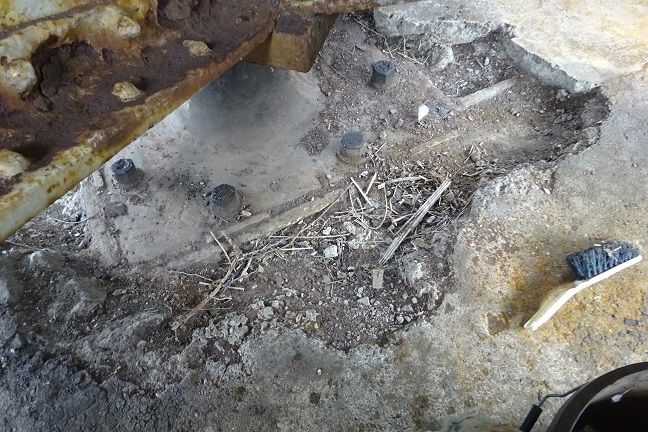

David cleaned out the ram area again. Water and mud comes into here since it is lower
Brunel Swivel Bridge
Clean again
Wood Stop
Brunel Swivel Bridge

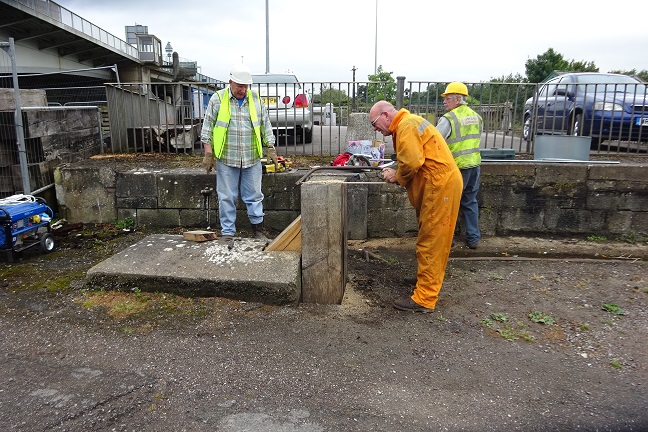

Mike started to cut the stop to shape the hard way
Brunel Swivel Bridge

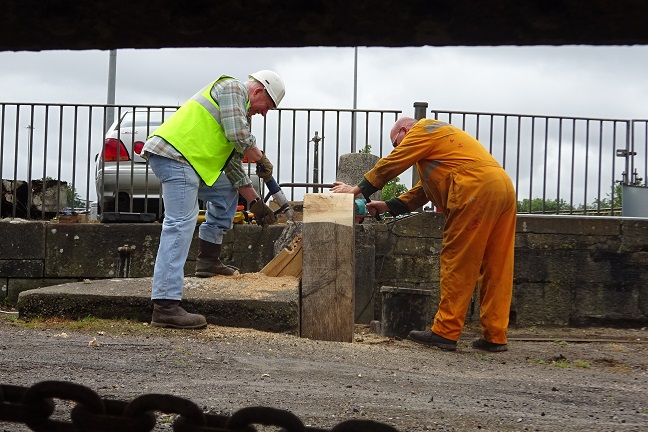

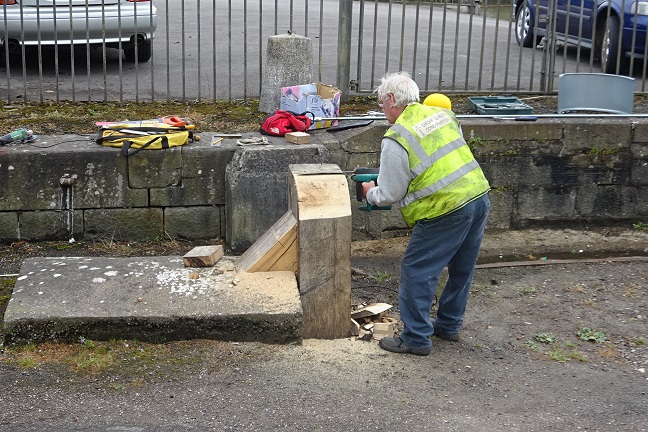

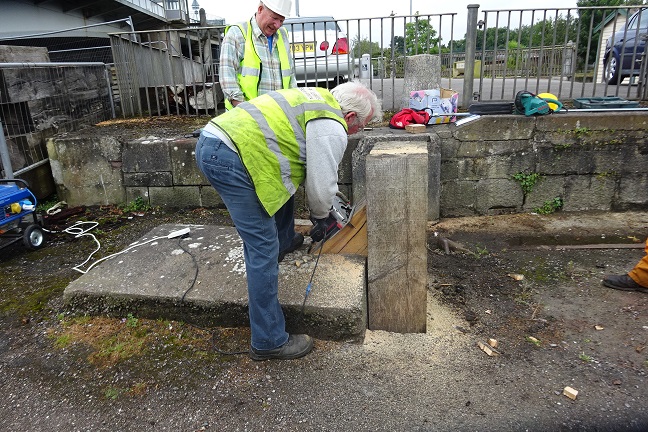

Geoff cuts the support using power tools
Brunel Swivel Bridge

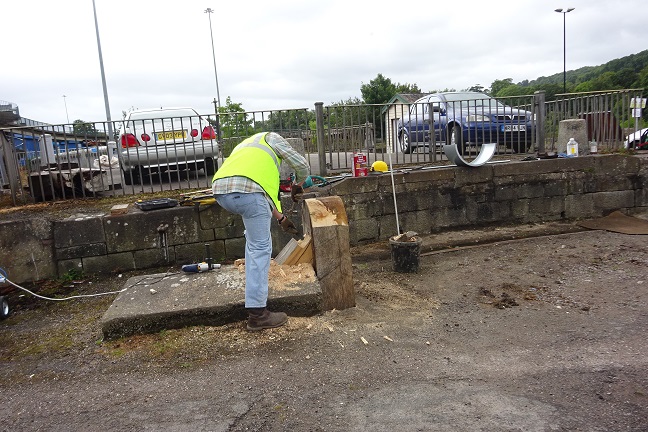

Geoff then continued to cut the edge using power tools- but limited by depth of blade
Brunel Swivel Bridge

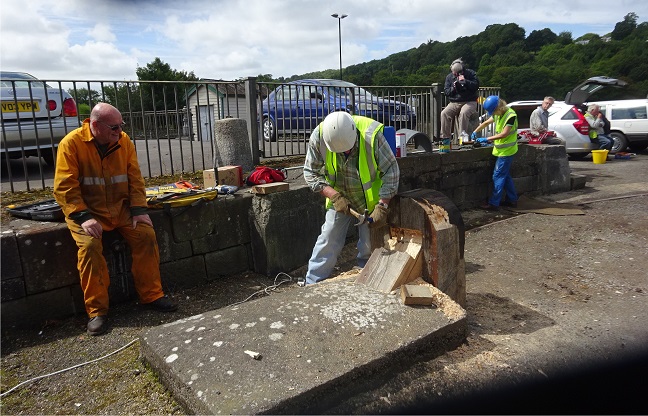

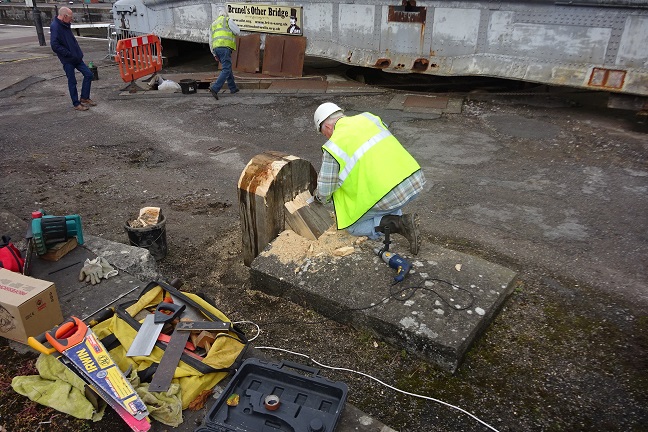

Bob shaping the support while Mike continues to round the edge
Brunel Swivel Bridge
Bob chisels out the rest. The newly fabricated metal cap can be seen on the wall
Brunel Swivel Bridge
Different view showing the tools of the trade. Alf came to see what we were up to
Brunel Swivel Bridge
Bob continues fashioning the support, Mike watches having just painted the cap,
Julian came to video us and filmed Sally cleaning the bearing cap
Brunel Swivel Bridge

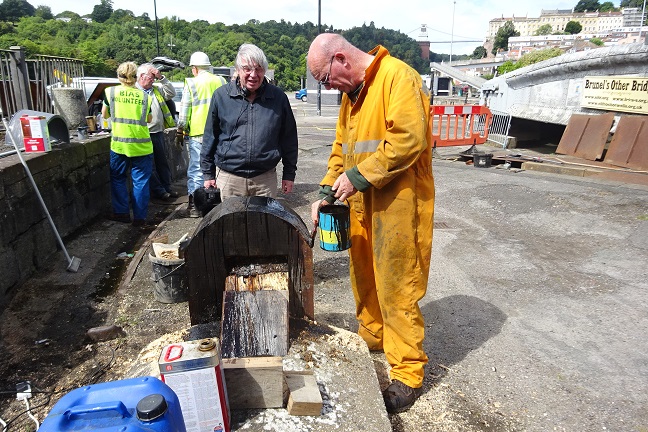

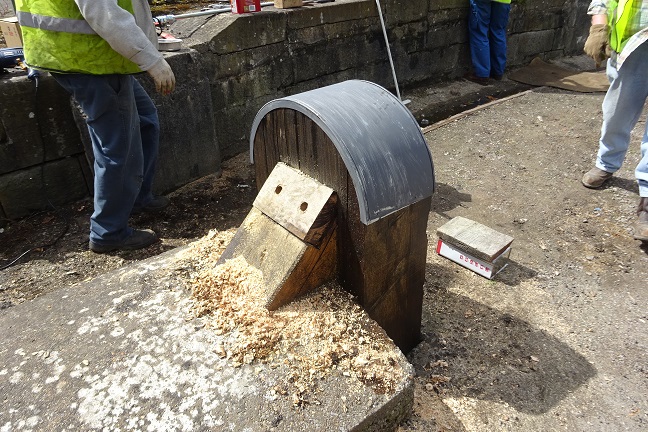

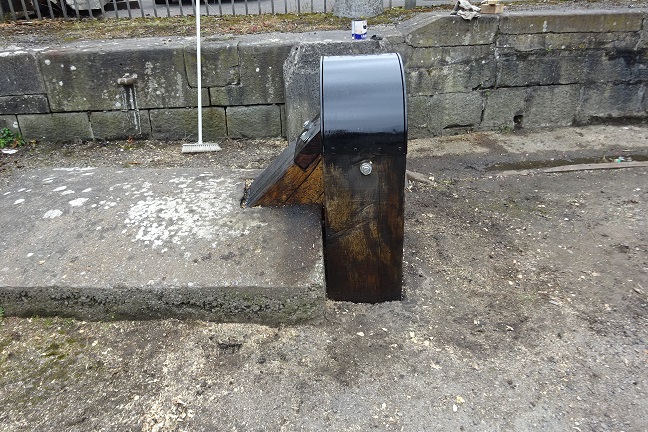

support finished, a mixture of old oil and wood preserver has been applied.
Brunel Swivel Bridge
another bit of wood has been put in place to take the studding
Brunel Swivel Bridge
More chiseling for the hand made square washers
Brunel Swivel Bridge

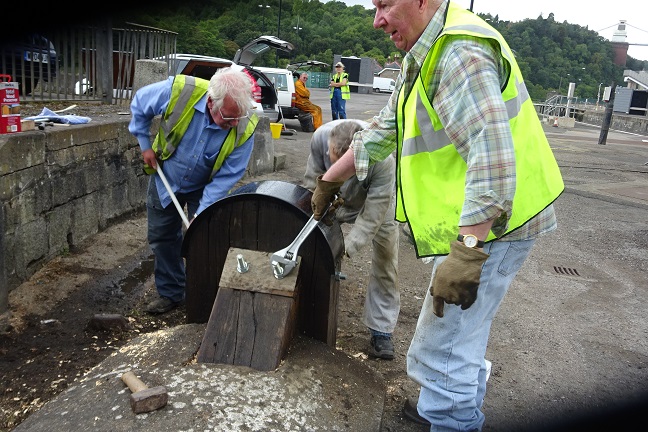

Studding goes in in both directions
Brunel Swivel Bridge

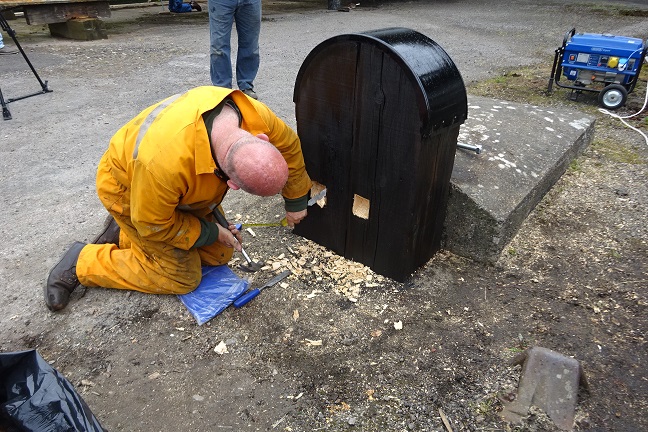

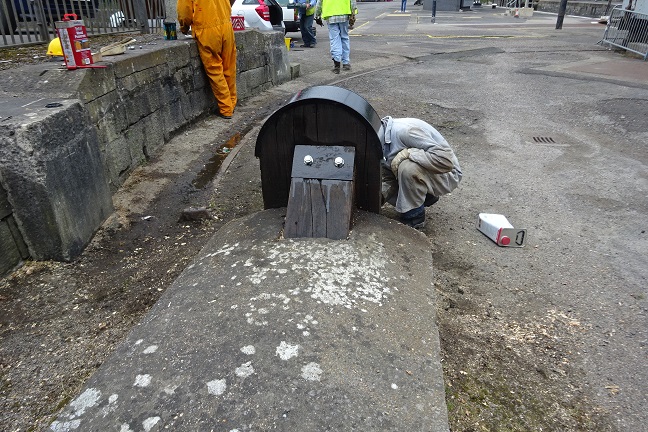

David (looking like the headless man again) finishes off the work
Bearing
Brunel Swivel Bridge

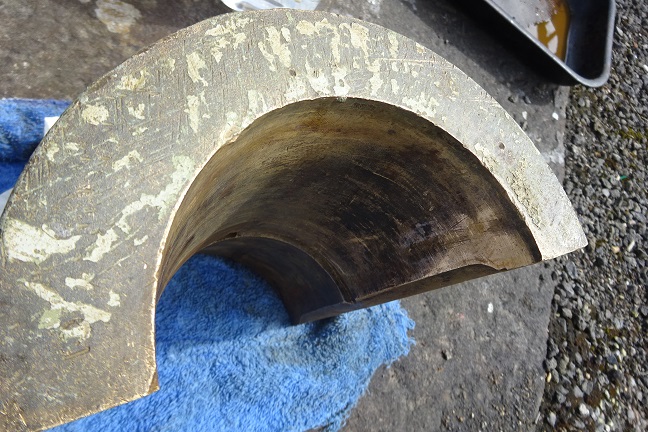

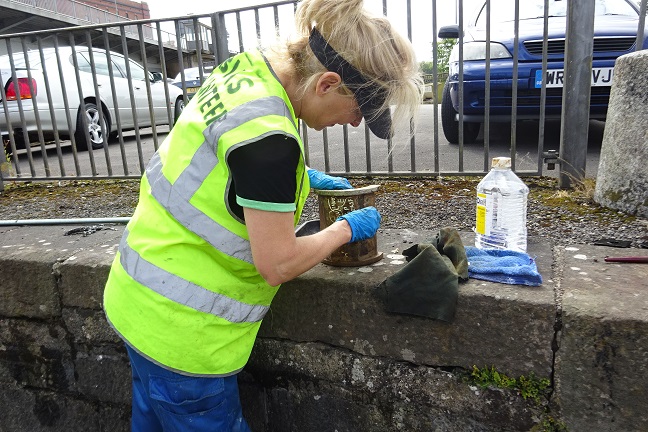

Sal cleaning the bearing- hexagonal on the back to stop slipping
Brunel Swivel Bridge
still paint on the bearing edge, chisel marks and number 10 stamped on
Visitors
Brunel Swivel Bridge

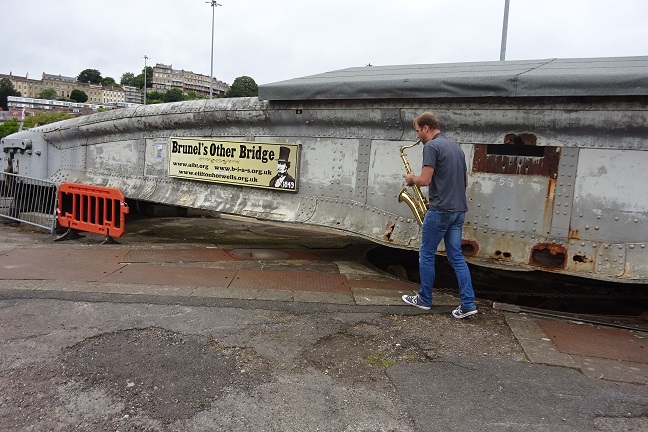

we were serenaded by a passing saxophonist!
Brunel Swivel Bridge

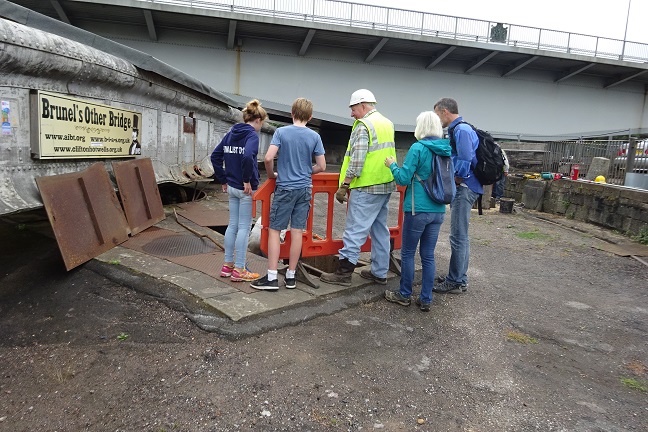

there was always someone passing by wanting to know what we were upto
